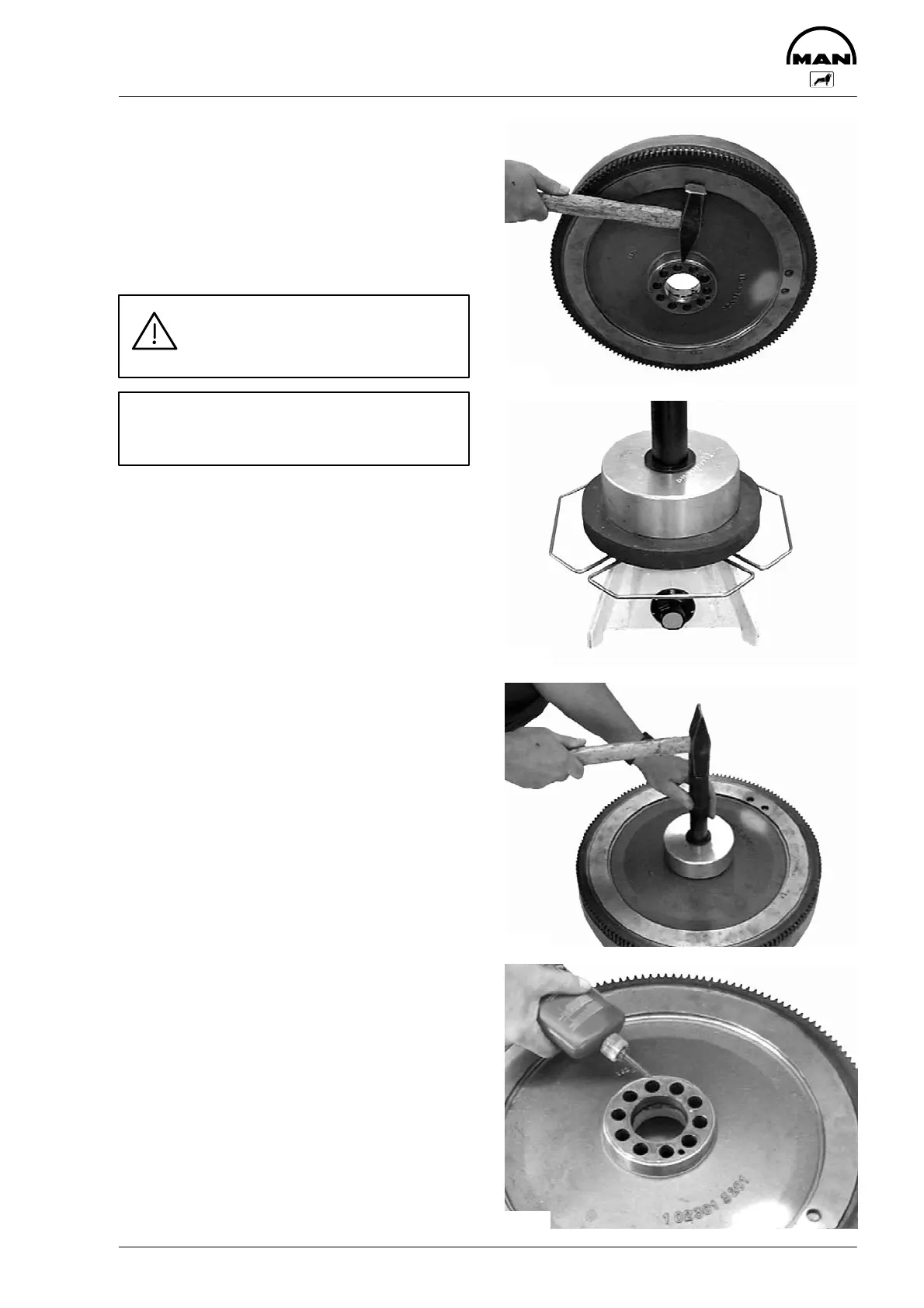

Exchanging bearing race
65
D Remove flywheel, see page 62
Fig. 1
If the shaft seal on the flywheel end is to be ex-
changed, it is advisable to exchange the bearing
race too.
Snap the bearing race to be exchanged by apply-
ing a blow with a hammer.
Danger:
Wear goggles and working gloves for
protection against metal fragments.
Caution:
Do not damage flywheel.
Do not use a chisel.
Fig. 2
Insert the new bearing race into the pressing man-
drel (special tool, see page 127 , item 14) so that
for the subsequent assembly the internally cham-
fered side faces the flywheel.
Carefully heat the pressing mandrel with the bear-
ing race. The installation temperature for the bear-
ing race is about 150_C (300_ F).
Fig. 3
Press in bearing race until it stops.
Fig. 4
Seal the gap between the flywheel and the bearing
race with “Antipor 46”.
