5
6
7

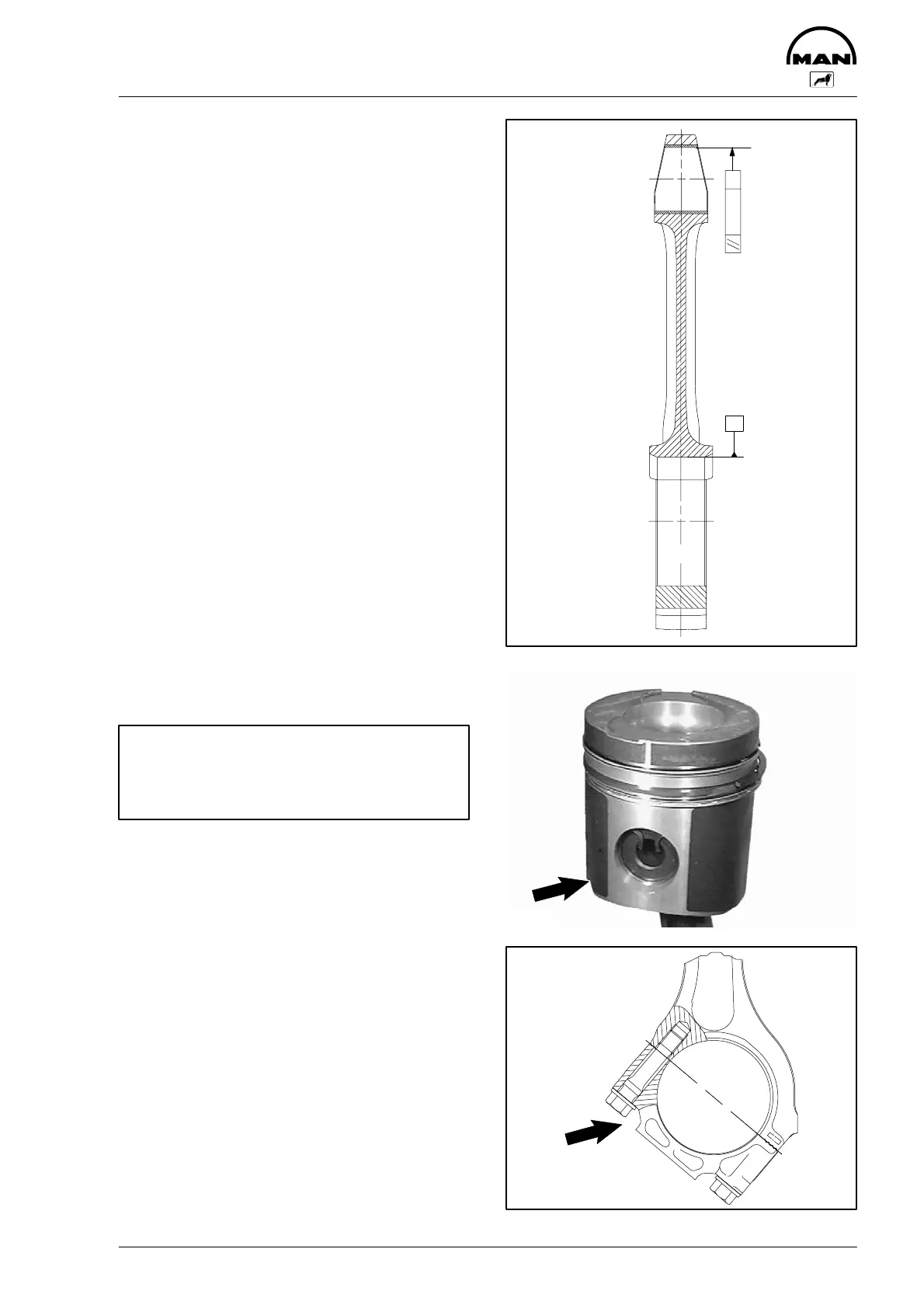

Removing piston from and attaching to connecting rod
checking - changing connecting rod
109
Fig. 5
Clean connecting rod and inspect for external
damage; scrap any defective rods.
Check connecting rod to see whether the piston
pin bore is parallel or twisted relative to the bearing
shell bore. Change connecting rod if deviations
exceed the tolerance range.
Fig. 6
Fit piston to connecting rod.
Caution:
The recess for the oil spray nozzle in the pis-
ton shaft (arrow) must be at the side of the
small end.
Insert gudgeon pin. Fit circlips.
Install piston, see page 106.
A
Ø 0,02 A
3847
3565
4083
