8
9
Removing and installing injection pump
29

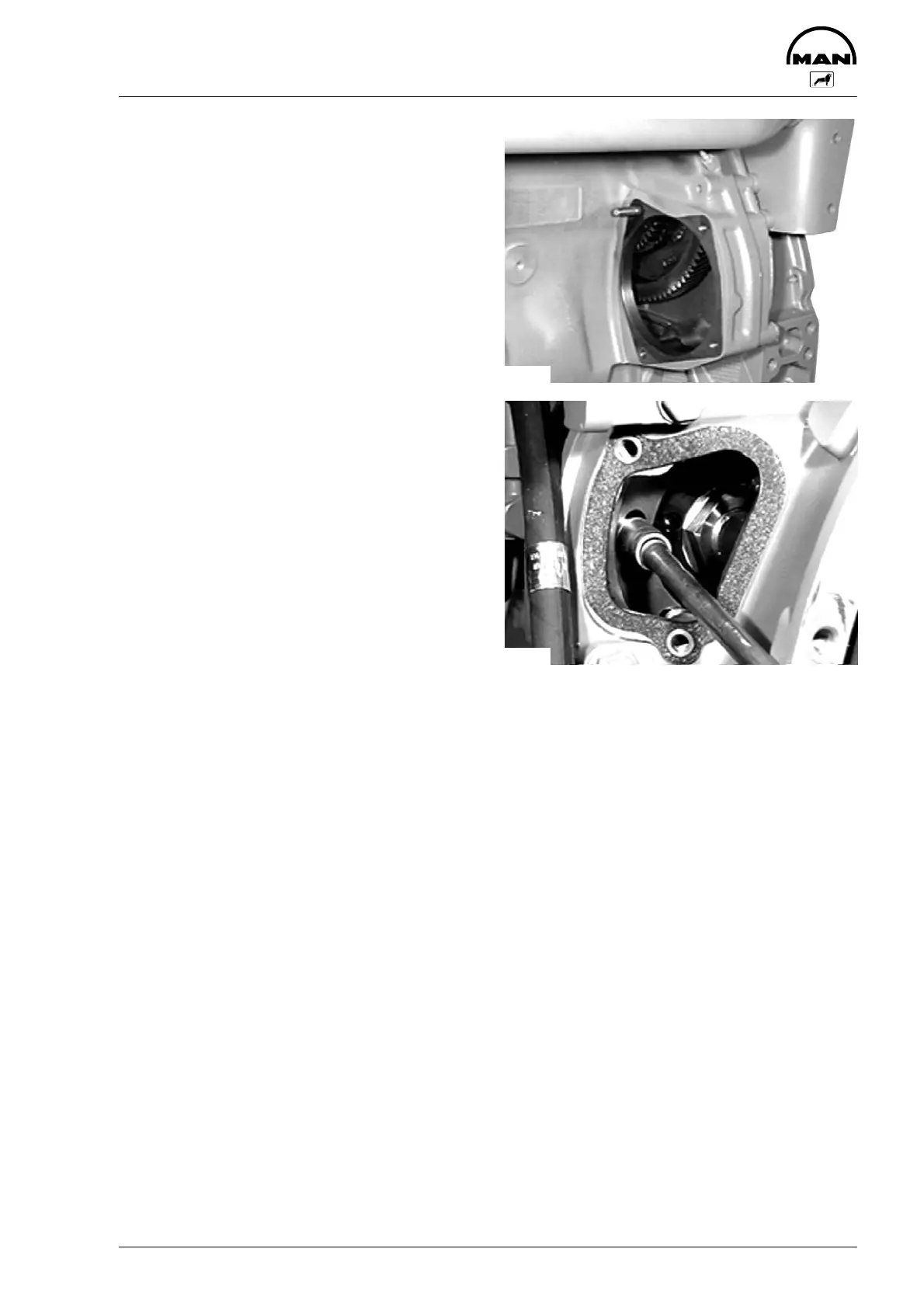

Fig. 8
Insert the injection pump and tighten the mounting
bolts.
Fig. 9
Apply an initial torque of 5 Nm to all mounting bolts
on the gear through the inspection hole. Two com-
plete engine turns are necessary for this operation.
Now tighten all mounting bolts to 30 Nm.
Check delivery start, if necessary readjusting it
(see page 23).
Screw in screw plug on the governor housing and
fit cover to timing case.
3401
3395
