Removing and installing oil pump
54

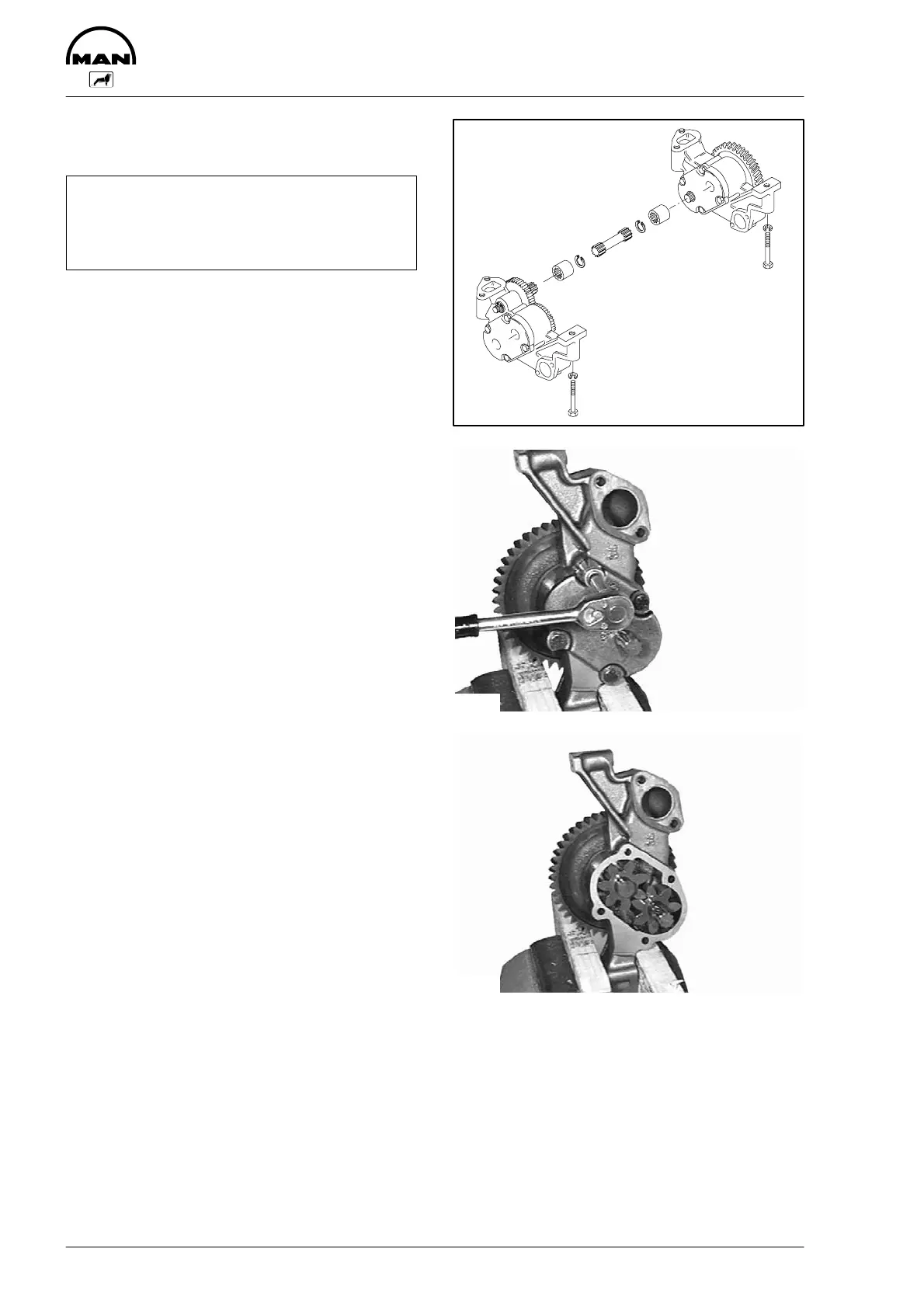

Fig. 5
Remove oil pump.
Note:
Depending on the engine model and oil pan
variant, various oil pump versions are
possible.
In engines with tandem pumps, first remove the
2nd pump À with intermediate shaft Á, connection
sleeves  and circlips Ã.
Disassembling and assembling oil
pump
Fig. 6
Clamp oil pump in a vice (fitted with soft jaws). Re-
move oil pump cover (13 mm).
Fig. 7
Pull driven oil pump gears out of the housing.
Check gears and pump housing for wear
(see ”Engineering S Data S Setting values”).
1
2
3
3
4
4
2703
3669
3458
