Technical information
21
Note:
Install the transducer so that the gap between it and the tip of the ring gear tooth is 0.5 to
0.8 mm.
D Screw down the transducer until it contacts the tip of the tooth
D Back off about one half turn
D Lock in this position
(For a description of the individual components and setting procedures, see publications
E 80001 and E 80002 ”Heinzmann Electronic Speed Governors”).

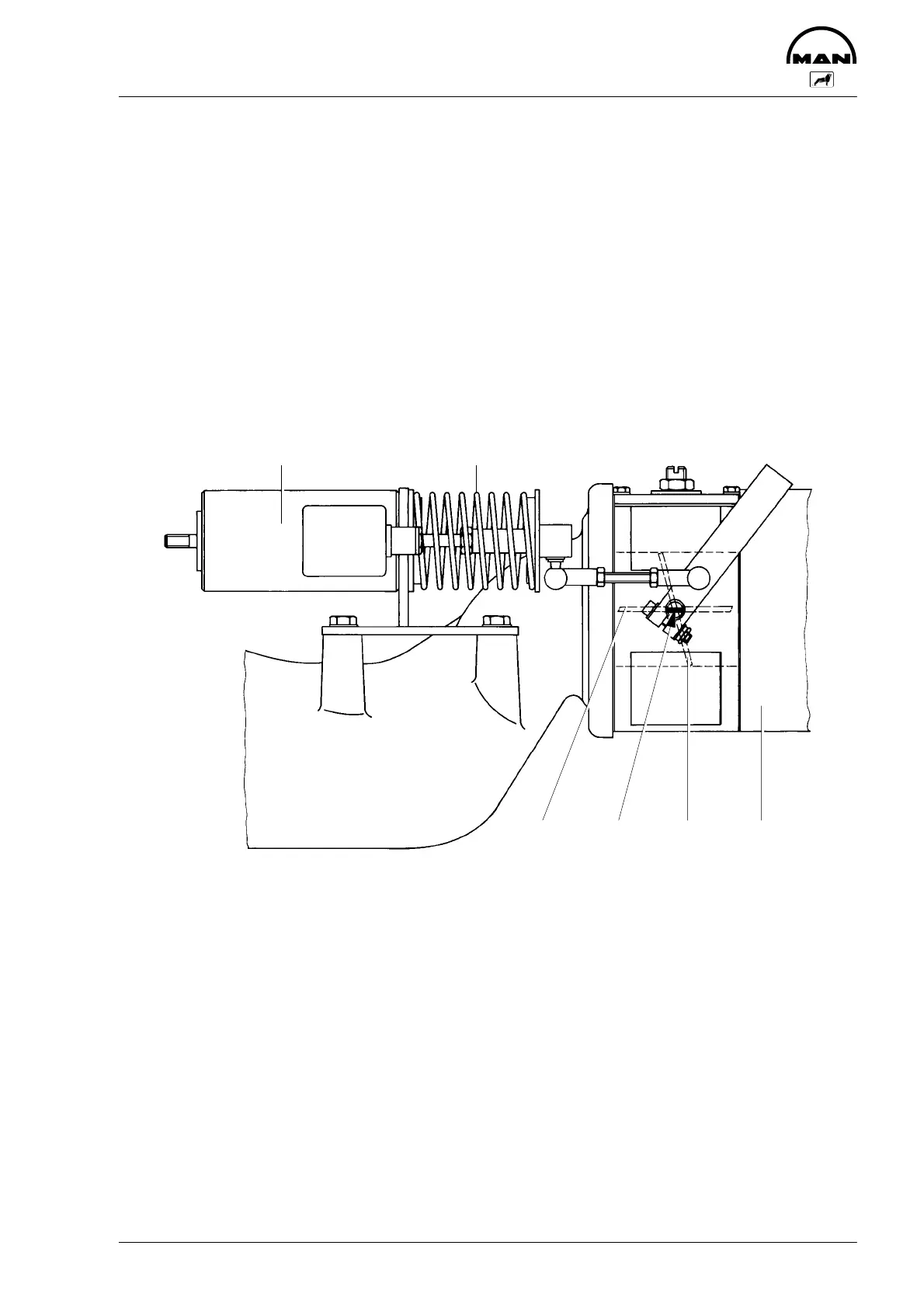

Starting control
(for use with asynchronous generator)
12
BCA3
1840
1 Solenoid A Starting position of throttle valve
2 Compression spring B Operating position of throttle valve
3 Gas mixer C Marking slot (indicates throttle plate position)
Note:
With the solenoid de-energized, the marking slot should be horizontal (operating posi-
tion).
The starting control device is designed for use with asynchronous generators in order to
achieve satisfactory smooth loading of the generator.
On shutting down, the device will prevent the engine from being accelerated by trapped
gas on unloading the generator
