System description
SaCoS
one
GENSET
This document is property of MAN Diesel & Turbo SE and is entrusted
to whom it has been handed over. Copying and communicating to third
parties is only permitted with written consent of MAN Diesel & Turbo!
SaCoSone.GENSET_System description_m_en_V1.5.docx
The Display Module provides the following functions:
safety system
visualisation of measured values and operating values on a touchscreen
engine operation via touchscreen
The safety system is electrically separated from the control system due to requirements of the
classification societies.
For engine operation, additional hardwired switches are available for relevant functions.
The system configuration can be edited via an Ethernet interface at the Display Module.

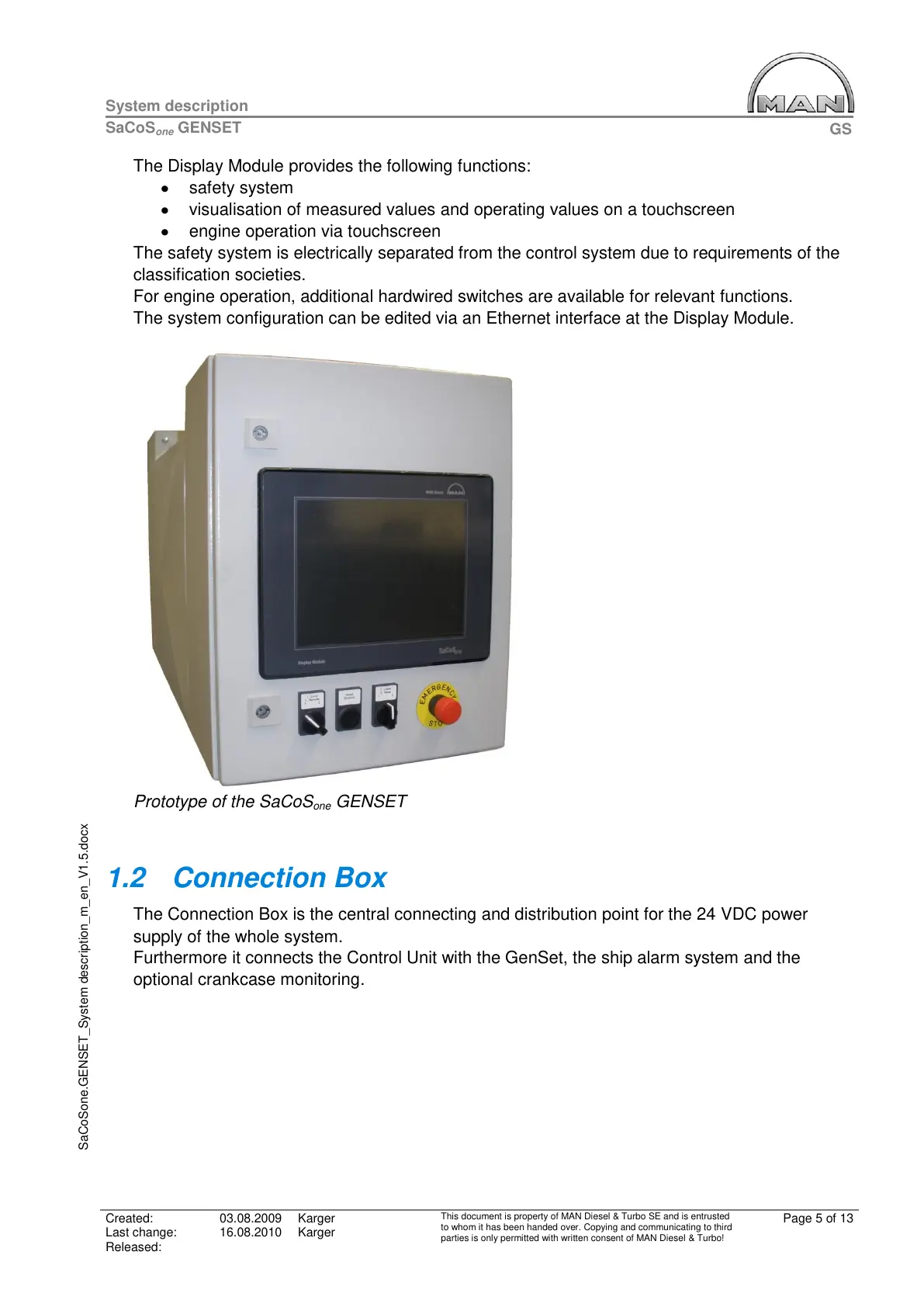

Prototype of the SaCoS
one
GENSET
1.2 Connection Box
The Connection Box is the central connecting and distribution point for the 24 VDC power
supply of the whole system.
Furthermore it connects the Control Unit with the GenSet, the ship alarm system and the
optional crankcase monitoring.
