www.mc-techgroup.com CSS-VC-1.6 | 1.01.03 29

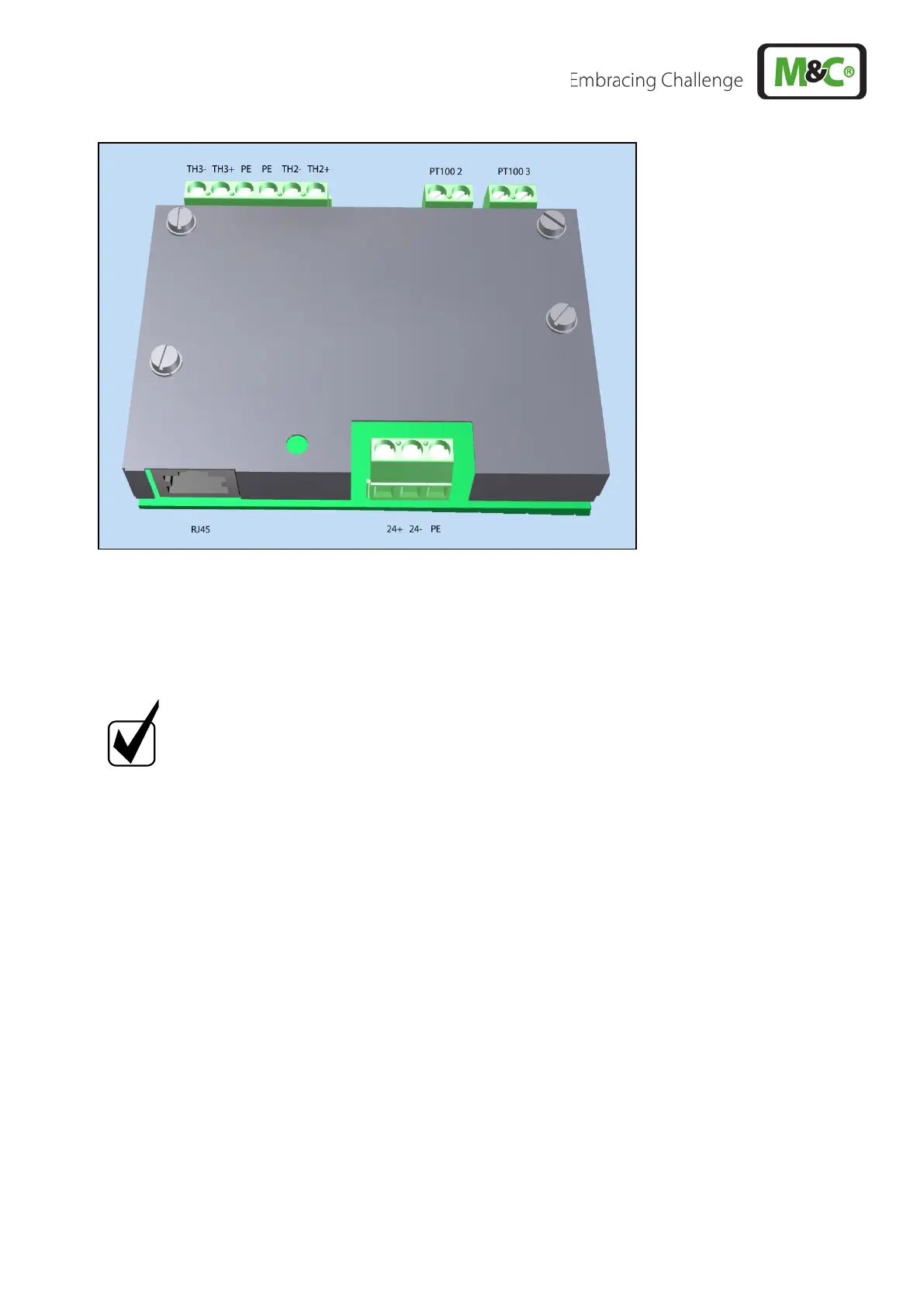

Figure 11 Electrical connections communication module
15.3.2 THE TEMPERATURE CONTROL MODULE
Notice
If the CSS-VC.. is purchased with an external thermostat module, it must be
specified at the time of ordering which devices should be regulated (2 probes
or 2 heated lines or 1 probe and 1 heated line) so that the controller
configured accordingly.
The temperature control module includes 2 additional thermostats e.g. for control of heated lines or gas
sampling probes. Control is by control of external solid-state relays. The module also includes 4 relays
for high and low temperature monitoring. The connections for the temperature sensors are located on
the communication module.
