18.3.1 MOUNTING INSTRUCTIONS FOR PERISTALTIC PUMP
Make sure to mount the pump to the front of the cooler with a minimum distance of 3.5 mm [≈ 0.138”]
and a maximum distance of 5.5 mm [≈ 0.216”] between the pump motor and the front panel. The
minimum distance avoids damages to the pump motor and the maximum distance prevents the motor
shaft from getting loose.
1 Pump head (outside the device housing) 2 Device front panel
3 Recommended monting distance 4 Pump motor (inside the device housing)

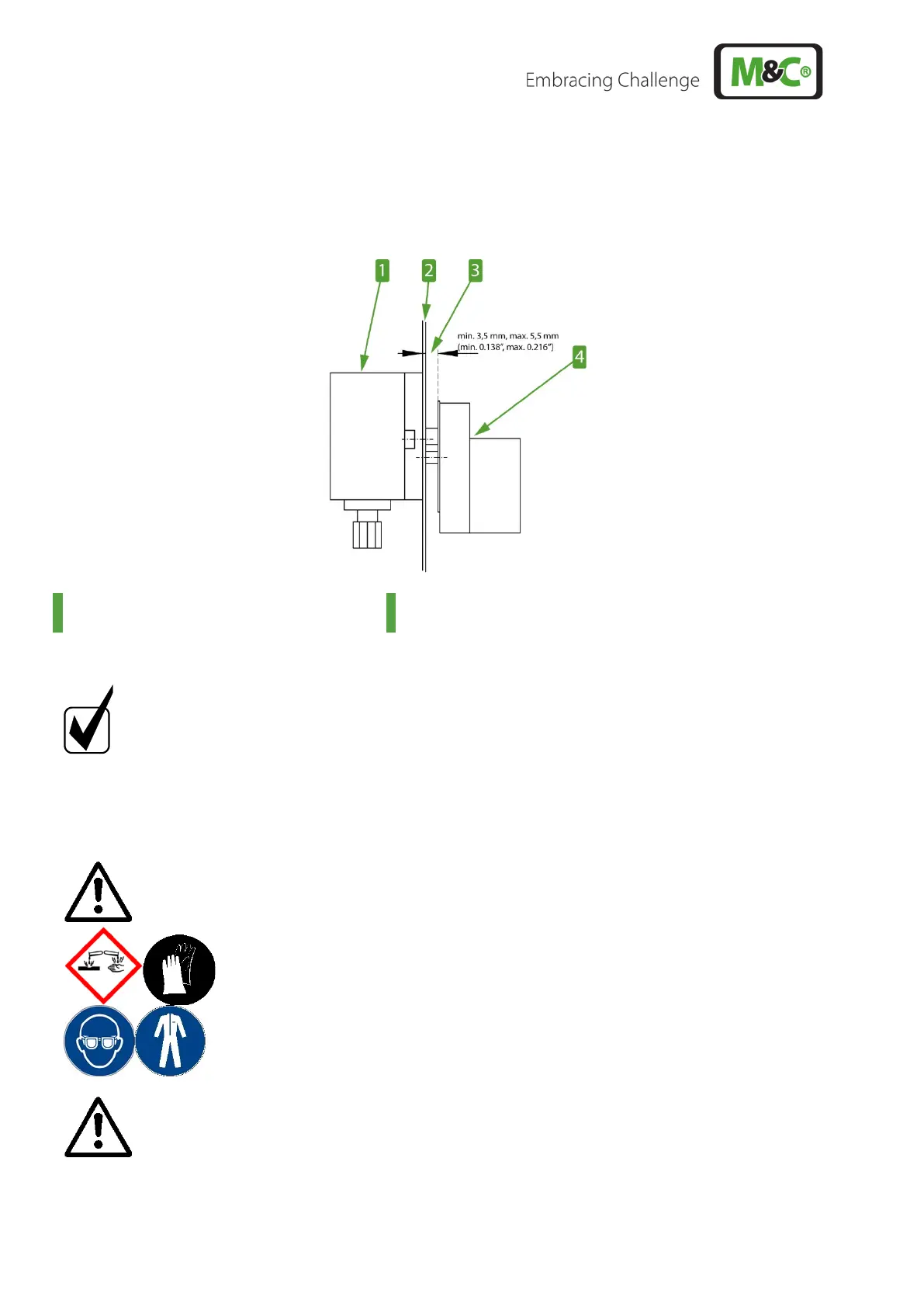

Figure 20 SR25.2: Mounting distance between front panel and pump motor
Note
For detailed mounting instructions, see the instruction manual for the peristaltic
pump series SR
®
: The manual is available on our website www.mc-
techgroup.com.
18.3.2 EXCHANGE THE PUMP HOSE
Warning
Aggressive media residues possible.
On disassembly, repairing
or cleaning of the hose pump, wear
protective glasses and appropriate protective clothing!
Warning
If you return the hose pump to M&C customer service for repair, we will
ask for information concerning the delivered liquid.
The pump should be cleaned of hazardous or highly aggressive
contaminants prior to return shipment.
