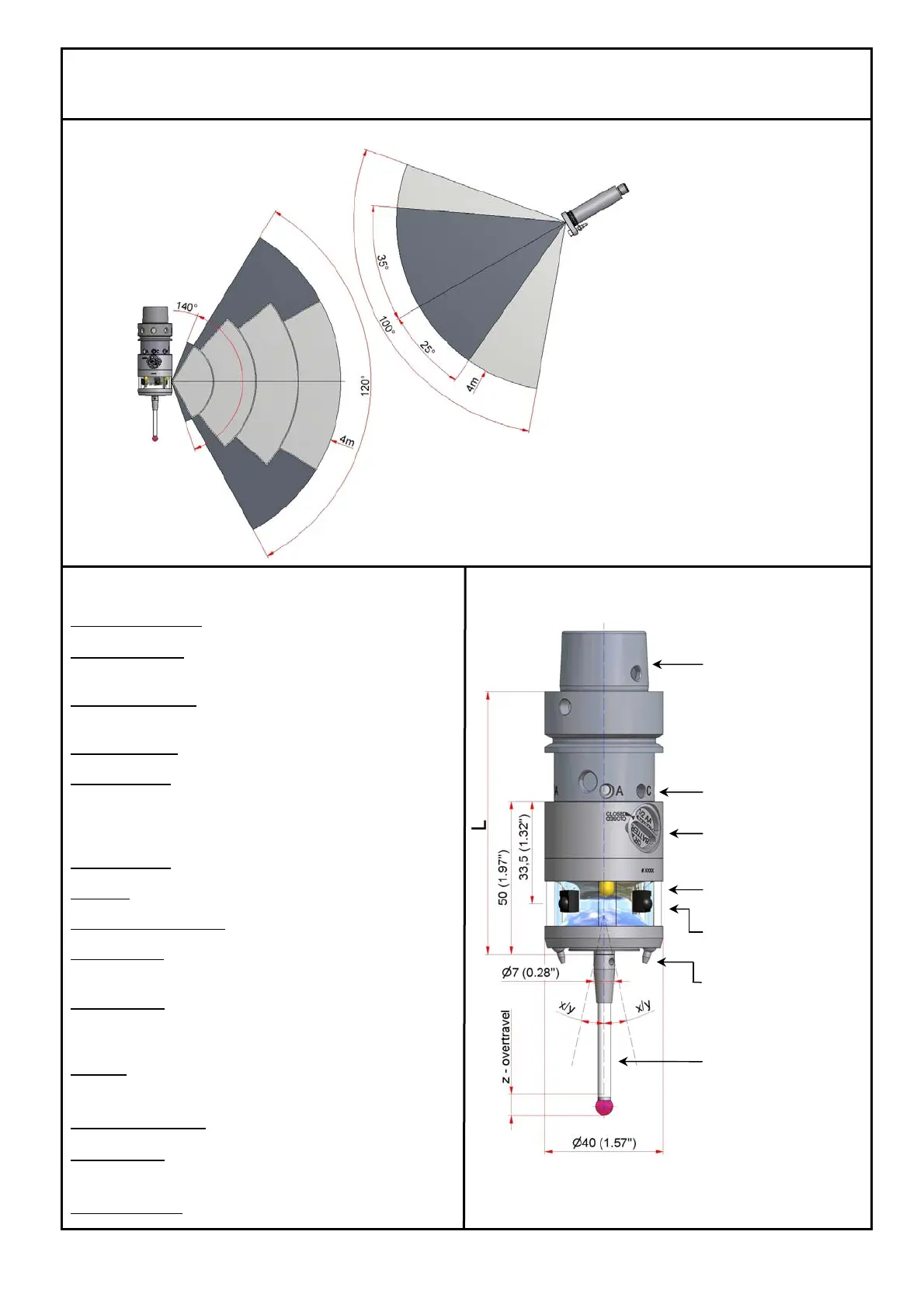

Infrared Probe 40.01
TX/RX
Infrared Receiver
91.40-RX/TX/°C
91.30-RX/TX
Infrared Probe
40.01-TX/RX
System Components
Technical Data Dimensions
Probing Directions:
±
X;
±
Y; -Z
Max. Overtravel: XY
±
12,5°; Z –5mm
Probing Force Z = 7N
with 50mm Stylus:
X/Y = 1N
Recommended 254mm/min –
Probing Speed:
2000mm/min
Power Supply: 1x3V Battery
Type CR2 (IEC)
Standby: 12 months
Alternative 1x3,6V Battery
Power Supply:
Type ½ AA (IEC)
Material: Stainless steel
Weight without Shank: ca. 390g
Temperature: Operating: 10° - 50°C
Storage: 5° - 70°C
Repeatability: max. 2Sigma
±
1µm
with 50mm stylus at
254mm/min
Sealing: IP68: EN60529
(15 m) tested
Maximum
Probing Frequency:
30 Hz = 30 points / sec
Shock tested: in
±
X;
±
Y; -Z
50G for 7ms (5000 times)
Resonant
Frequency Test:
Passed
M4 Stylus
Infrared
receiver unit
High Power
Infrared diodes
Stylus aligned
to spindle center
Customer specified
shank
Battery compartment
Cleaning jets
