Infrared Probe 40.01
TX/RX
5
30°

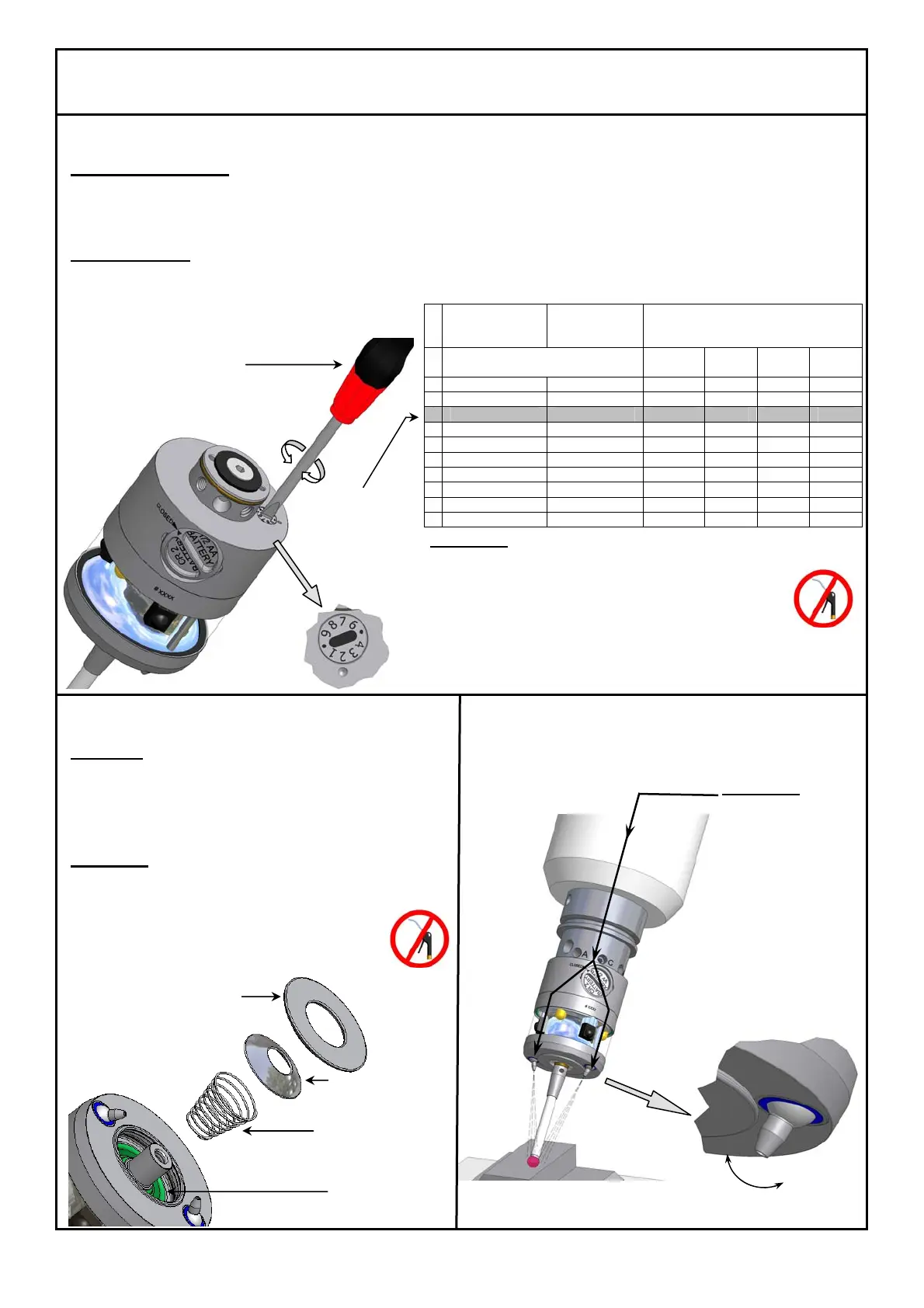

Infrared Signal Range / Power Off Delay / Battery Life
Infrared signal range:
There are 3 infrared range settings which can be selected: 1.6m – 3.3m – 4.0m.
A reduced range can be useful to ensure that nearby infrared systems are not interfered with.
A high range setting shortens the battery life.
Power off delay:
If the probe is not triggered within a given time, it is automatically shut off.
3 settings for the delay time are possible: 60s – 120s – 180s.
For removing the shank, see page 6
Attention !
e After removing the shank, wipe the probe
clean and dry !
Do NOT use compressed air to clean!
e Ensure the probe is turned off !
e Adjust the desired range !
e Remount the shank.
e Align the stylus !
e Calibrate the probe !
Maintenance Cleaning Jets
Dirt can accumulate under the metal eyelid Cleaning the workpiece and the stylus tip
To clean :
with through-spindle air.
e Remove service cover with eyelid and
conical spring by hand.
e Clean probe and parts under flowing water.
e Replace parts and close probe by hand.
e Calibrate probe.
Attention !
e Do NOT use compressed air or high pressure
water to clean!
e Do NOT use any sharp tools!
(These could damage the inner seal)
Optional: Cleaning jets 40.01-Jets
Infrared Signal
Range
(Typical)
Power Off
Delay
Battery Life in Continuous Use
CR2 5%
usage
½ AA 5%
usage
0 ≤4.0m Infrared OFF 180h 130d 270h 190d
1 ≤4.0m 180s 180h 130d 270h 190d
2 ≤3.3m 180s 220h 145d 350h 210d
3 ≤1.6m 180s 290h 170d 440h 240d
4 ≤4.0m 120s 180h 130d 270h 190d
5 ≤3.3m 120s 220h 145d 350h 210d
6 ≤1.6m 120s 290h 170d 440h 240d
7 ≤4.0m 60s 180h 130d 270h 190d
8 ≤3.3m 60s 220h 145d 350h 210d
9 ≤1.6m 60s 290h 170d 440h 240d
Attention !
Only use through-
spindle air !
Pressure < 7bar
Do NOT use coolant !
Screwdriver
Service cover
#3240
Metall eyelid
#2906
Conical spring
#2931
Inner Seal
Factory Settings
