m&h Inprocess 40.01-TX - Shank Mounting and Types; Shank Mounting Procedure

t
Infrared Probe 40.01
-
TX/RX
6

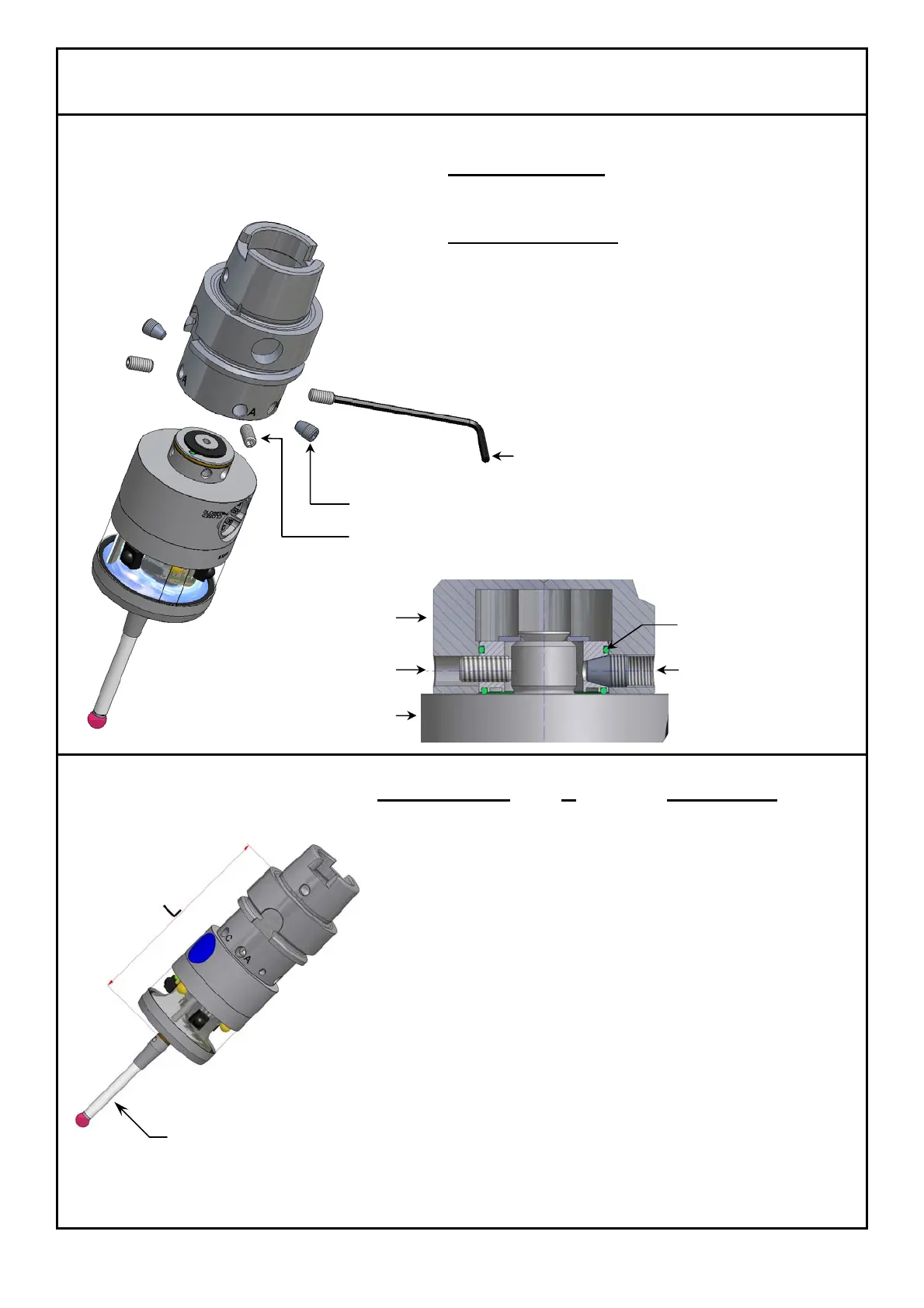

Mounting the Shank
Removing the shank:
e Remove all „A“ and „C“ screws.
e Remove shank.
Assembling the shank:
e Ensure the O-Rings are properly seated!
e Carefully slide the shank onto the probe body. Align
the „C“ threads with the conical bores.
e Insert both clamping screws „C“ and tighten lightly.
e Insert adjustment screws „A“.
e Align the stylus to spindle center.(see page 4)
e Calibrate the probe.
Probe with shank HSK
Available Shanks: L: Order Number:
DIN69893-HSK-E25 69 (2.71”) 40.01-HSK25E
DIN69893-HSK-A32 86 (3.39”) 40.01-HSK32A
DIN69893-HSK-E32 86 (3.39”) 40.01-HSK32E
DIN69893-HSK-A40 86 (3.39”) 40.01-HSK40A
DIN69893-HSK-E40 86 (3.39”) 40.01-HSK40E
DIN69893-HSK-F40 86 (3.39”) 40.01-HSK40F
DIN69893-HSK-A50 86 (3.39”) 40.01-HSK50A
DIN69893-HSK-A50 116,5 (4.59”) 40.01-HSK50A-116,5
DIN69893-HSK-E50 92 (3.62”) 40.01-HSK50E
DIN69893-HSK-E50 116,5 (4.59”) 40.01-HSK50E-116,5
DIN69893-HSK-F50 92 (3.62”) 40.01-HSK50F
DIN69893-HSK-A63 86 (3.39”) 40.01-HSK63A
DIN69893-HSK-A63 116,5 (4.59”) 40.01-HSK63A-116,5
DIN69893-HSK-A63-70 120 (4.72”) 40.01-HSK63A-120
DIN69893-HSK-E63 116,5 (4.59”) 40.01-HSK63E
DIN69893-HSK-F63 121,5 (4.78”) 40.01-HSK63F
DIN69893-HSK-A80 121,5 (4.78”) 40.01-HSK80A
DIN69893-HSK-A100 92 (3.62”) 40.01-HSK100A
DIN69893-HSK-A100 121,5 (4.78”) 40.01-HSK100A-121,5
Kennametal KM63 121,5 (4.78”) 40.01-KM63
Kennametal KM80 121,5 (4.78”) 40.01-KM80
Other shanks upon request
C = Clamping screw AF2.5mm (2x)
#1351 M=2 Nm (1.47 lbf.ft)
A
= Adjustment screw DIN913 M4x8 (AF2mm) (4x)
#1352 M=1.5 Nm (1.1 lbf.ft)
Hexagon Key
A
F2mm #1097 / AF2.5mm #1346
Clamping screw „C“
in conical bore
Adjustment screw „A“ in thread
Shank
Probe
O-Ring 17x1 Viton
#3239
Not included
