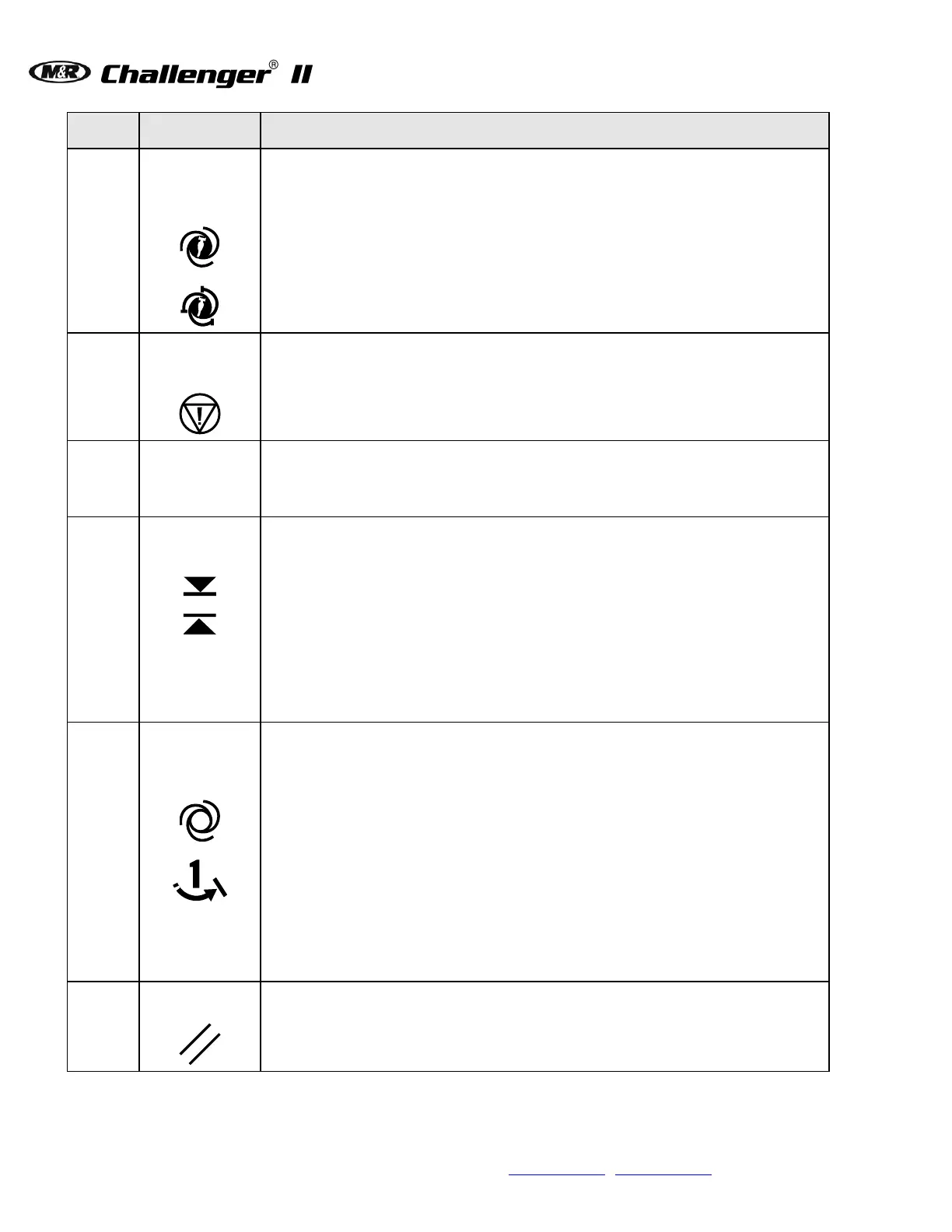

M&R Challenger 2 User Manual

V.033114
16 M&R Companies 1N 372 Main St. Glen Ellyn, IL 60137 USA
Tel: +630-858-6101 Fax: +630-858-6134 www.mrprint.com | store.mrprint.com
Number
Name
Function
4
Print Start /
Print Finish
Switch
This switch is provided as a convenience when initially starting or finishing a print
run. It is designed to eliminate the need to individually turn on or off print
stations. Placing this switch in the Print Start position will automatically
command each print station that is selected to On, to print sequentially at the
start of a print run. Placing this switch in the Print Finish position will
automatically command each print station that is selected to On, to shut-down
sequentially at the completion of a print run.
5
Emergency
Stop Button
The red Emergency Stop button stops all operation.
Press the button in until it remains depressed to activate.
Turn the button clockwise until it pops out to deactivate.
6
Operator
Interface
Used to display information regarding operational, programming and system
status messages. Refer to the Operator Interface Section of this manual for a
detailed description of the operation.
7
Front/Rear
Switch
Commands the selected print station to stop in either the Front or Rear position.
This switch is used whenever the operator desires to complete the print cycle
with the screen frame flooded with ink to reduce the chance of ink drying in the
image. When this switch is placed in the Front position, the print carriage stops
at the front (outside) of the screen frame, with the image area flooded with ink.
When placed in the Rear position, the print carriage stops at the rear (inside) of
the print head, and the image area will be clear of ink. A red LED in the tip of the
switch handle illuminates confirming that the switch is set for Front stop.
Note: This feature will perform the exact opposite function if the press has been
programmed to print from inside to outside.
8
Automatic
Manual
Mode Switch
This switch has three positions; Automatic at the top position, Off at the middle
position, and Manual at the lower position. This switch commands the system to
operate in either Automatic or Manual mode of operation. To operate the index
system one complete cycle, press the switch down to Manual. The index system
will cycle one time, along with any print stations that are selected to On.
Placing this switch in the Automatic position while the index table is in motion
will command the index system to operate in the automatic mode. The dwell time
for automatic operation is adjusted via the Operator Interface (6). Instructions
on how to adjust the index dwell time are available in the Operator Interface
Section of this manual.
Note: When the switch is selected to the middle or Off position, the index system will not
operate.
9
Reset Button
The green Reset button resets the control system logic in the event of an
emergency stop or activation of one of the cycle interruption cords. This button is
also used to lower the index table during setup procedures.
