Manitou 160 ATJ E3 - Page 134

3-22
C3

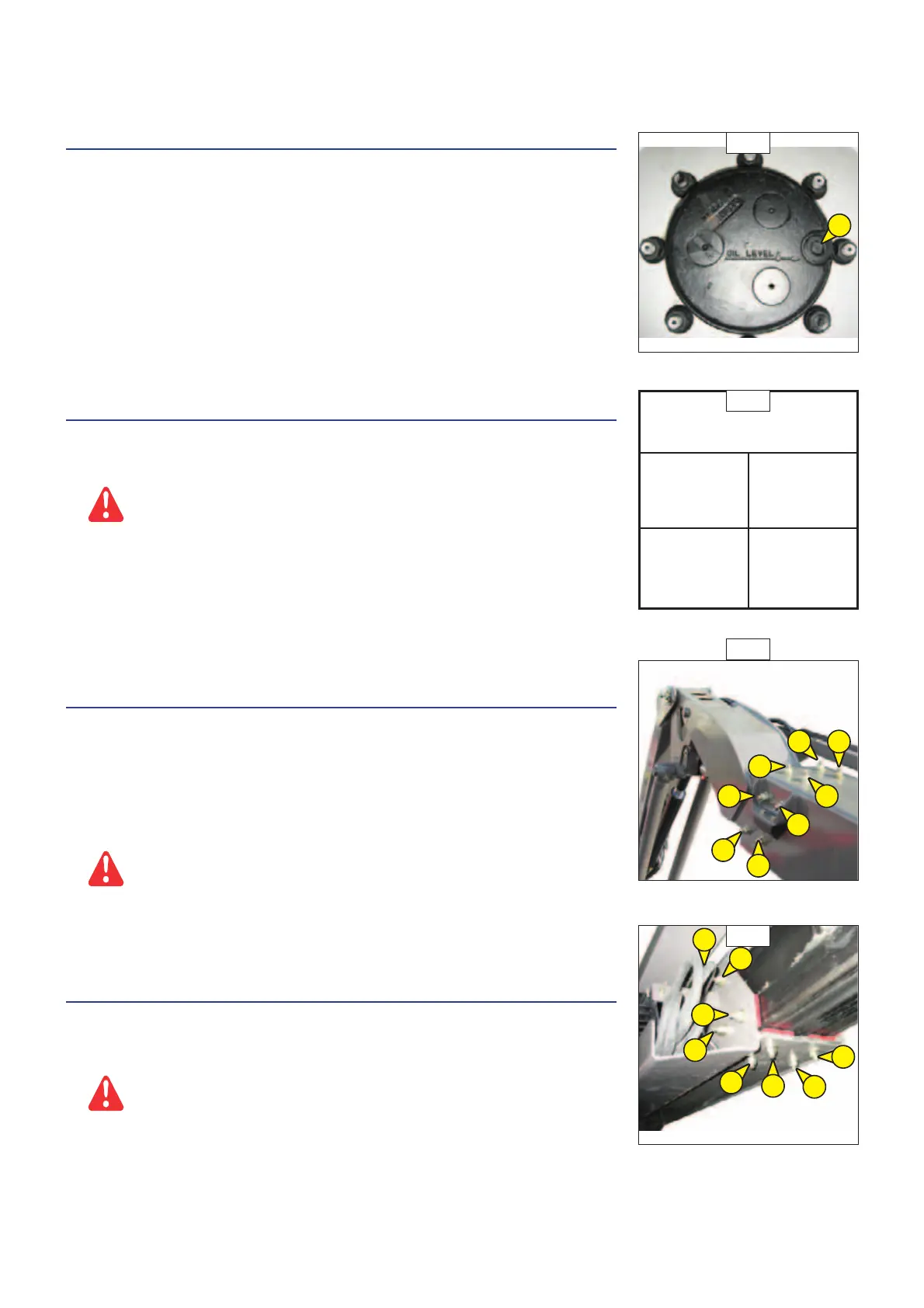

C3  FRONT AND REAR WHEEL REDUCER OIL LEVEL
CHECK
Set the platform on a horizontal surface with the engine off.
- Check the oil level in each of the front and rear wheel reducers.
- Set the level plug 1 (Fig. C3) horizontal.
- Remove the level plug; the oil should be flush with the hole.
- Add oil, if necessary (see the LUBRICANTS section), via the same hole.
- Screw the plug back in tightly 1 (Fig. C3).
- Perform the same operation on each of the rear wheel reducers.
C4  TIGHTENING THE WHEEL NUTS
CHECK
- Check the tightness of the wheel nuts (Fig. C4).
Failure to observe this instruction may cause the wheel pins to be damaged
and break, as well as the wheels t
o deform.
C5  EMERGENCY PUMP
CHECK
- Switch off the engine.
Check that the emergency pump is operating correctly by pressing the switch on the side of the
base control box or the basket control box.
- Perform an arm lowering movement (example...)
You must not use the lifting platform under any circumstances if the pump
is not working
.
C6  TELESCOPE ADJUSTMENT
CHECK
- Check the tightness of the 16 nuts on the telescope skids Ref.1 (Fig. C6/1 and C6/2).
Failure to observe this instruction may result in loss of the skids and damage
to the telescope.
WHEEL NUT
TIGHTENING TORQUE
FRONT WHEELS
34 daN.m
± 15 %
REAR WHEELS
34 daN.m
± 15 %
C4
C6/1
C6/2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
647414 EN (27/05/2015)
