3-23
C7

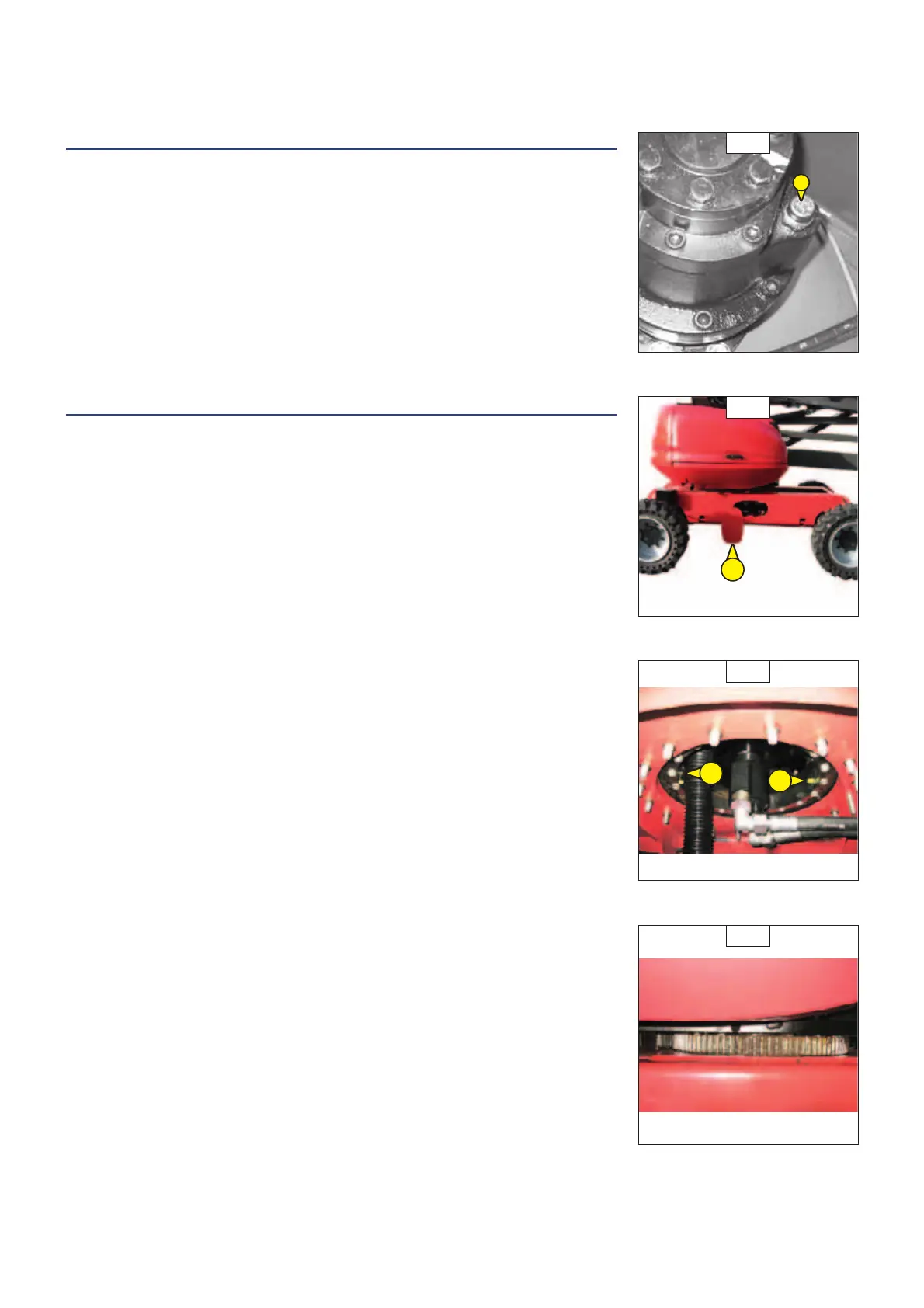

C7  TURRET REDUCTION GEAR BRAKE REDUCER LEVEL
CHECK
Set the lifting platform on a horizontal surface, with the engine switched off.
- Remove the turret’s internal cowl.
- The reduction gear is revealed with the valve block to the rear.
- Remove the sniffler-filling plug 1 (Fig. C7)
- The level is correct when the sniffler is full of oil.
- If necessary, top up the level with a syringe by filling the reducer via the sniffler-filler plug. The
oil capacity is 1.3 litres.
- Refit the sniffler-filler plug 1 (Fig. C7).
C8  TURRET ORIENTATION CROWN
GREASE
- The bearing raceways and gears must be lubricated every 250 hours of operation as well as
before and after any long period at a standstill.
- Grease to use: see the LUBRICANTS section.
- Remove the left-hand casing from the chassis Ref. 1 (see Fig. C8/1).
- Find the 2 grease nipples Ref. 1 (Fig. C8/2) and thoroughly grease the crown, while orienting
the turret.
- Refit the left-hand casing on the chassis (see Fig. C8/1).
- Apply lubricant to the teeth of the crown and the pinion with a paintbrush (Fig. C8/3).
- Lubricant to use: see the LUBRICANTS section.
C8/1
C8/2
C8/3
1
1
1
1
647414 EN (27/05/2015)
