D3 HYDROSTATIC TRANSMISSION OIL FILTER CARTRIDGE
REPLACE

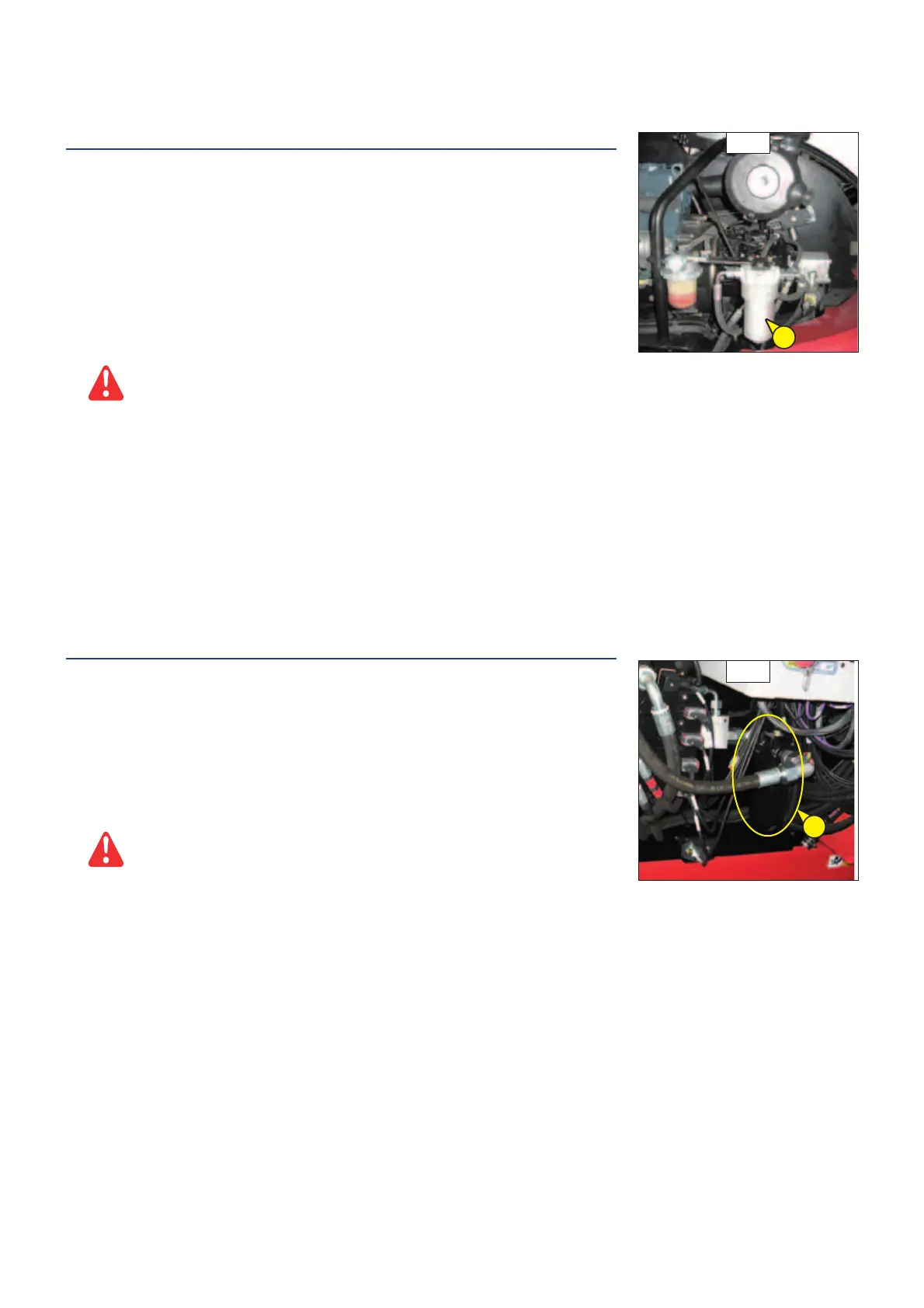

REPLACING THE HYDROSTATIC TRANSMISSION OIL FILTER CARTRIDGE
- Switch off the engine.
- Lift the cowl on the engine side.
- Unscrew the filter body 1 (Fig. D3).
- Remove the hydrostatic transmission oil filter cartridge and replace it with a new one.
- Ensure that the cartridge is correctly positioned and refit the cover.
Do not operate the lifting platform without a cartridge; this would
immedia
tely cause damage to the hy
drostatic pump’s hydraulic transmission
circuit.
CLEANING OUT THE HYDRAULIC CIRCUIT
- Let the engine turn o
ver for 5 minutes without using the lifting platform.
D4 AUXILIARY HYDRAULIC OIL FILTER CARTRIDGE
REPLACE
- With the machine stopped and the battery cutout in the OFF position.
- Unscrew the filter body 1 (Fig. D4).
- Remove the filter cartridge and replace it with a new one (see “FILTER ELEMENT” section).
NB: Pay attention to the direction for fitting.
- Refit the filter body 1 (Fig. D4).
Carefully clean the exterior of the filter and its surroundings before
performing an
y work in order to avoid any risk of pollution getting into the
hydraulic circuit.
D4
1
1
647414 EN (27/05/2015)
