G5  FREEWHEELING
ACTIVATE
If the lifting platform must be towed, follow the instructions below.
The lifting platform may only be towed a short distance, necessarily by a vehicle with significant
braking power so that it is capable of holding it and by means of a connecting bar between the
two vehicles.
1 - Chock the lifting platform.
2 - Hydrostatic declutching
Warning: before conducting this operation, take the necessary precautions; the machine will no
longer have any brakes.
- Remove the bonnet.
- Screw in the HP restrictors 1 (Fig. G5/1) on the hydrostatic pump up to the sticking point + 1
and a half turns (No. 13 wrench and No. 6 hex wrench).
3 - Rear axle mechanical declutching
- Loosen the screw 1 (Fig. G5/2), without removing it.
- Remove the pin Rep.2 (Fig. G5/2).
- Tighten the screw 1 (Fig. G5/2).
- Loosen the screw 1 (Fig. G5/3), without removing it.
- Remove the pin 2 (Fig. G5/3).
- Tighten the screw 1 (Fig. G5/3).
Warning: after this operation, remember to remove the mechanical anti-skid system.

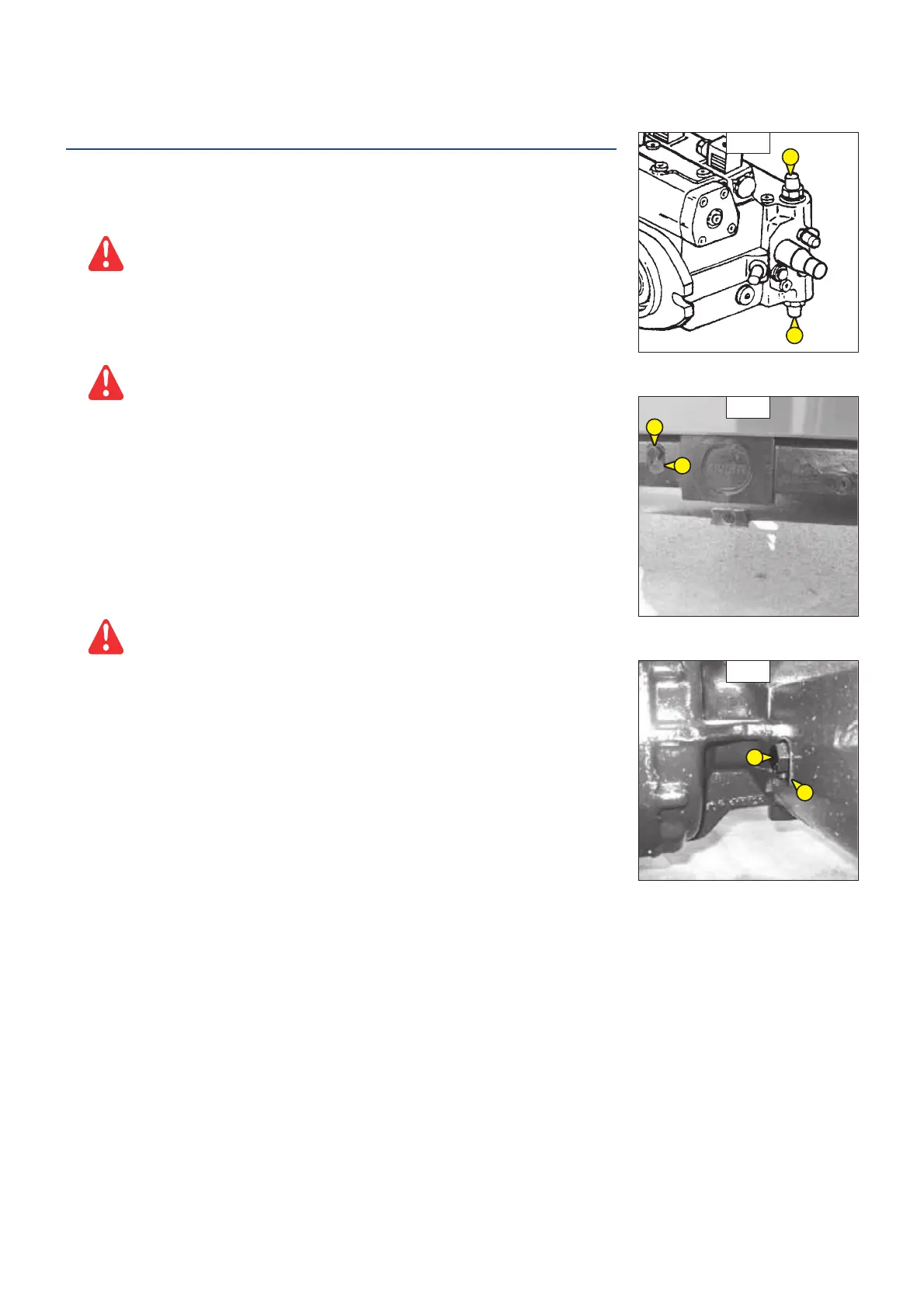

G5/1
