Manitou 2001 MARS User Manual

(TORQUE 10-12 N-M)
(TORQUE 90-110 INCH-LBS)
TITANIUM BRAKE POST (041396)
(060268)
(TORQUE 1.2-3.5 N-m)
(TORQUE 10-30 INCH-LBS)
COMPRESSION ROD SCREW
DAMPER DROPOUT
NUT (041823)
BOTTOM OUT (063116)
BOTTOM CLIP (040968)
100 LBS COIL SPRING 3" LONG (063147)
TOP OUT ELASTOMER (041475)
(TORQUE 3.5-5.6 N-M)
(TORQUE 30-50 INCH-LBS)
LEG CAP (062250)
COMPRESSION ROD (062932)
OUTER LEG ASSEMBLY
AIR PISTON ROD ASSY (063276)
(TORQUE 30-50 INCH-LBS)
LOC-OUT ROD SEAL (062392)
SEAL/WIPER (062972)
LOWER BUSHING (041474)
UPPER BUSHING (041473)
BUSHING & SEAL DETAIL
FORK BOOT (063249)
BOTTOM OUT (063116)
BOTTOM OUT WASHER (063181)
RETAINING RING (040679)
(NOT REMOVABLE)
INCLUDING NEGATIVE SPRING
LEFT LEG ASSEMBLY (062931)
(TORQUE 30-50 INCH-LBS)
(TORQUE 3.5-5.6 N-M)
ADJUSTER KNOB (062503)
O-RING 3/4 x 7/8 (040681)
RIGHT LEG (062927)
DAMPER SLEEVE (041574)
(TORQUE 3.5-5.6 N-M)
END CAP (062422)
TPC LOWER SHAFT (062994)
SPIROLOX RETAINER (062393)
ADAPTER (062989)
COMPRESSION VALVE (062296)
TOP CAP (062583)
(TORQUE 3.5-5.6 N-M)
AIR PISTON ASSEMBLY (062478)
AIR SPRING KNOB ASSEMBLY (062902)
AIR SPRING CAP ASSEMBLY (061038)
(TORQUE 30-50 INCH-LBS)
O-RING 21.6MM X 2.4MM (040524)
SELF TAPPING SCREW (041330)
TPC REBOUND PISTON (062670)
.372 X .900 X .005 SHIM (062300)

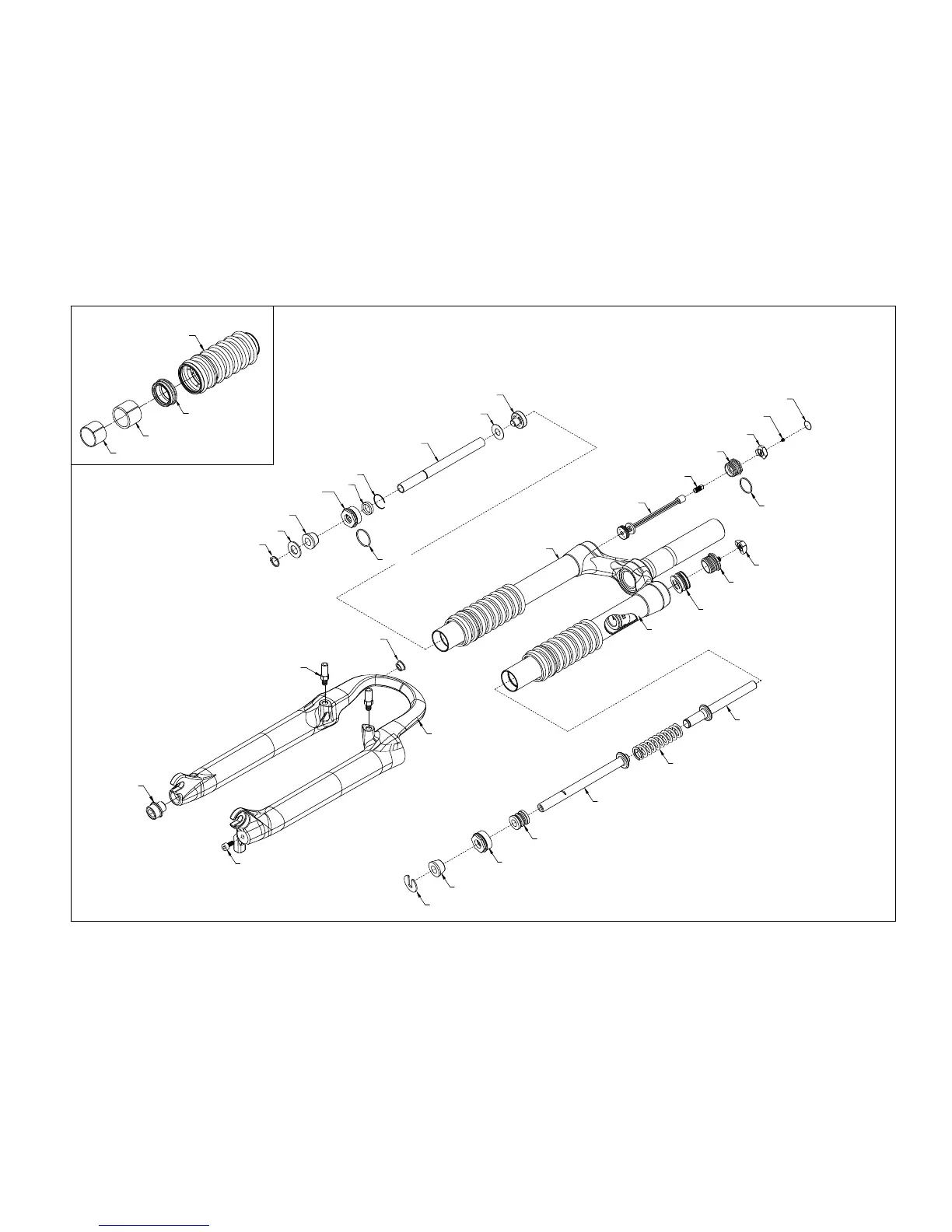

2001 MARS FORK SCHEMATIC
LOWER SHAFT ASSEMBLY
TPC SPORT
(062993)
TPC SPORT COMPRESSION
DAMPING ASSEMBLY
JELLY BEAN (063186)
(062934)
