RIGHT LEG (062927)
OUTER LEG ASSEMBLY

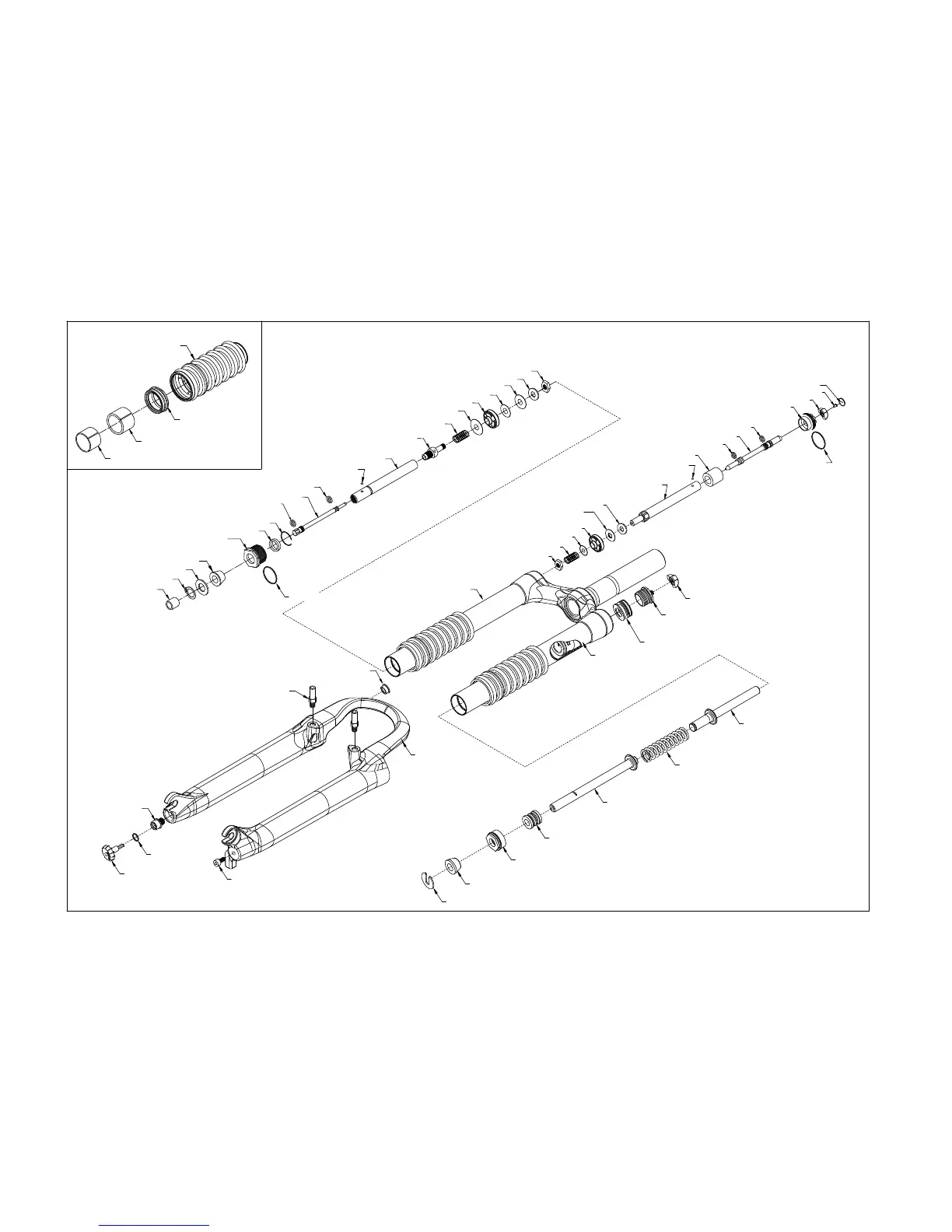

2001 MARS ELITE FORK SCHEMATIC
PISTON (062562)
VALVE NUT (041483)
13mm CLAMP SHIM (041157)
TPC LOWER SHAFT ASSEMBLY
REBOUND SHIM 20mm (041149)
REBOUND SHIM 21mm (041150)
BOTTOM CLIP (040968)
O-RING, DROPOUT
(TORQUE 10-12 N-M)
(TORQUE 90-110 INCH-LBS)
TITANIUM BRAKE POST (041396)
DAMPER DROPOUT
NUT (041822)
DAMPER ADJUSTER KNOB (041408)
NUT (040688)
(TORQUE 1.2-3.5 N-m)
(TORQUE 10-30 INCH-LBS)
COMPRESSION ROD SCREW
(060268)
DAMPER SLEEVE (041574)
BUSHING & SEAL DETAIL
UPPER BUSHING (041473)
SEAL/WIPER (062972)
(TORQUE 3.5-5.6 N-M)
(TORQUE 30-50 INCH-LBS)
END CAP (062422)
SPIROLOX RETAINER (062393)
0-RING 1/4 X 3/8 (040690)
LOC-OUT ROD SEAL (062392)
O-RING 5/32" x 9/32" (041130)
DETENT SLEEVE (041527)
BOTTOM OUT WASHER (063181)
RETAINING RING (040679)
BOTTOM OUT ELASTOMER (063116)
LOWER BUSHING (041474)
FORK BOOT (063249)
O-RING 3/4 X 7/8 (040681)
LOWER SHAFT (062970)
DETENT BALL (040689)
LOWER NEEDLE (062570)
PISTON SEAT (062130)
.826 X .409 X .005 SHIM (041139)
SPRING (041152)
AIR SPRING CAP ASSEMBLY (061038)
(TORQUE 3.5-5.6 N-M)
(TORQUE 30-50 INCH-LBS)
AIR SPRING PISTON ASSEMBLY (062478)
100 LBS COIL SPRING 3" LONG (063147)
COMPRESSION ROD (062932)
REBOUND ELASTOMER (041475)
(TORQUE 3.5-5.6 N-M)
(TORQUE 30-50 INCH-LBS)
BOTTOM OUT (063116)
LEG CAP (062250)
(NOT REMOVABLE)
INCLUDING NEGATIVE SPRING
LEFT LEG ASSEMBLY (062931)
AIR PISTON ROD ASSY (063276)
AIR SPRING KNOB ASSEMBLY (062902)
(TORQUE 3.5-5.6 N-m)
(TORQUE 30-50 INCH-LBS)
O-RING 1/4 X 3/8 (040690)
ADJUSTER NEEDLE (062072)
TPC COMPRESSION DAMPING
TPC TOP CAP (062583)
SELF TAPPING SCREW (041330)
CLAMP SHIM 13MM (041157)
UPPER SHAFT (062997)
(041148, 041149, 2X 041150)
PISTON (062562)
SHIM (041139)
SPRING (041152)
VALVE NUT (041483)
COMPRESSION SHIM STACK
O-RING 5/32 X 9/32 1/16 (041130)
DETENT BALL (040689)
DETENT SLEEVE (041527)
(062929)
O-RING (040524)
TPC KNOB (062503)
JELLY BEAN (062578)
ASSEMBLY (063111)
