04 AXEL SERVICE MANUAL Page 12 REV NC

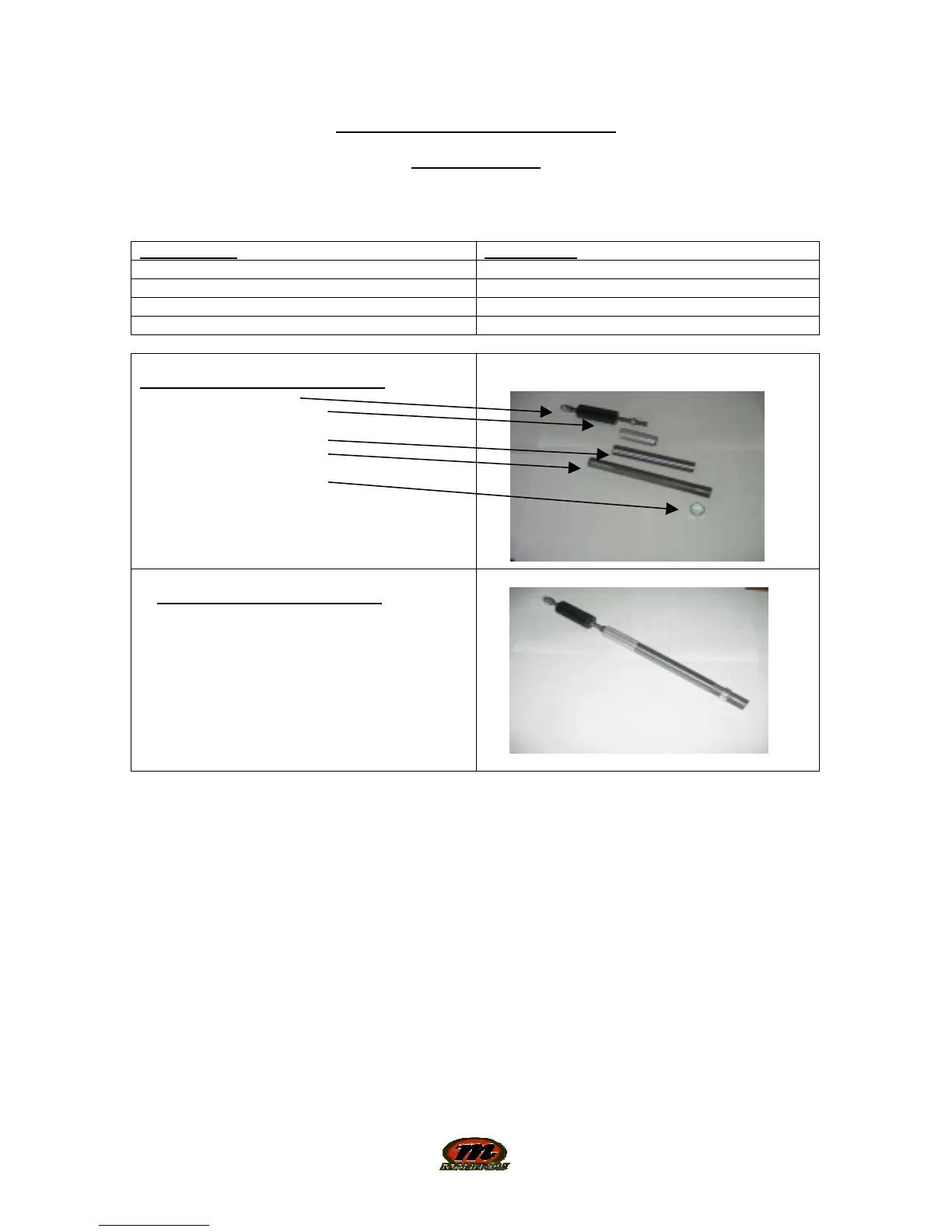

Bushing Removal & Installation
Bushing Removal
(Note: use appropriate removal ring that corresponds to the leg diameter of the fork being
repaired)
Leg Diameter
Answer Kit #
25.4mm (1”) 85-5191
28.6mm (11/8”) 85-5189
30mm 85-5194
32mm 85-5192
Bushing Removal Tool Components
A. Slide Hammer
B. Threaded Handle
C. Slide
D. Threaded Shaft
E. Removal Ring
Bushing Removal Tool Assembly
