04 AXEL SERVICE MANUAL Page 17 REV NC

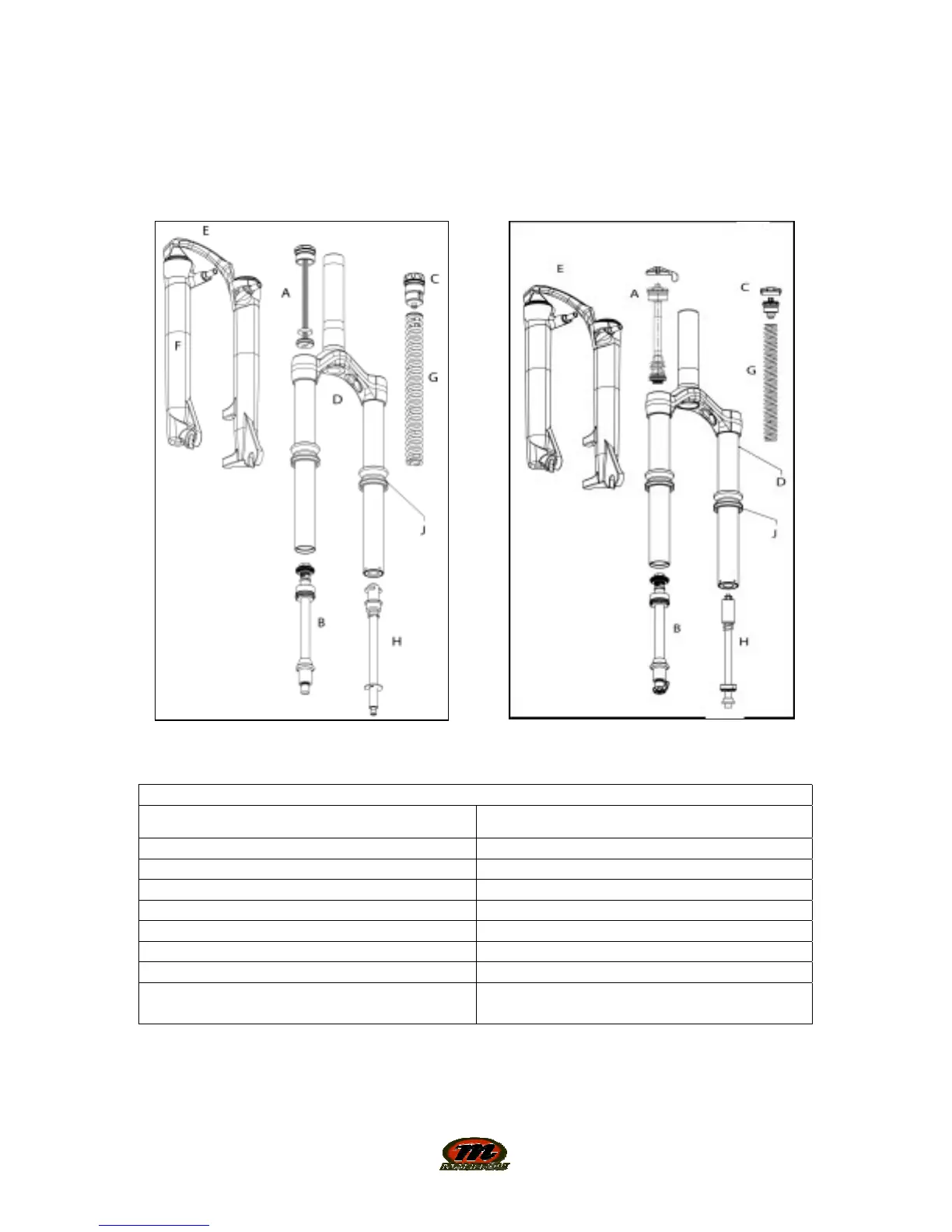

Axel: Fastener Torque and Setup Levels
Axel Comp & Elite Axel Super
Model: Axel
Description Torque Value
Bushing Depth - Upper *8.9mm Min. (.35”)
Bushing Depth - Lower *99 – 106 mm (3.9 - 4.2”)
Torque – Brake Post 90–110inlbs (10.2-12.4nm)
Leg Caps 25–35inlbs (2.8-4.0nm)
Torque - Comp Rod Screw 10-30inlb (1.1-3.4nm)
Torque - Damper Screw (Axel Super) 10-30inlb (1.1-3.4nm)
Adjuster caps:
Torque 35-50inlbs (4.0-5.7nm)
Damping Oil 110 – 120mm (4.3 – 4.7”)
