Using the machine outfitted with hoist
When all the green, yellow and red LEDs (Fig. A-Ref. 1) on the truck stabilization
control instrument light up, the hydraulic commands are automatically blocked.
Only the boom retraction, fork inclination and hoist rope descent commands
are authorized. Do not turn key “30” (page 23 - paragraph 2) for excluding auto-
matic blocking of movements as this must be done only for operation with shovel.
Before putting the winch into operation on the lift-truck check that the machine is compatible and that its safety
system is set appropriately for the type of winch required.
CAUTION
Incorrect setting of the safety system may put your safety at serious risk; if in doubt, do not hesitate to contact
your dealer immediately.
In view of their size, when the boom is lowered and retracted some accessories may interfere with the front
tyres and damage them if the board is tilted downward.
TO ELIMINATE THIS RISK, EXTEND THE TELESCOPIC SYSTEM FAR ENOUGH TO ELIMINATE THE
INTERFERENCE (THE DISTANCE WILL DEPEND ON THE TRUCK AND THE ACCESSORY.
The maximum loads are defined by the lift-truck’s capacity, bearing in mind the weight and centre of gravity of
the accessory. If the capacity of the accessory is below that of the lift-truck, never exceed this limit.
Before putting any type of accessory into operation on the fork-lift truck check the machine’s compatibility and
the calibration of the safety system with regard to the accessory used.

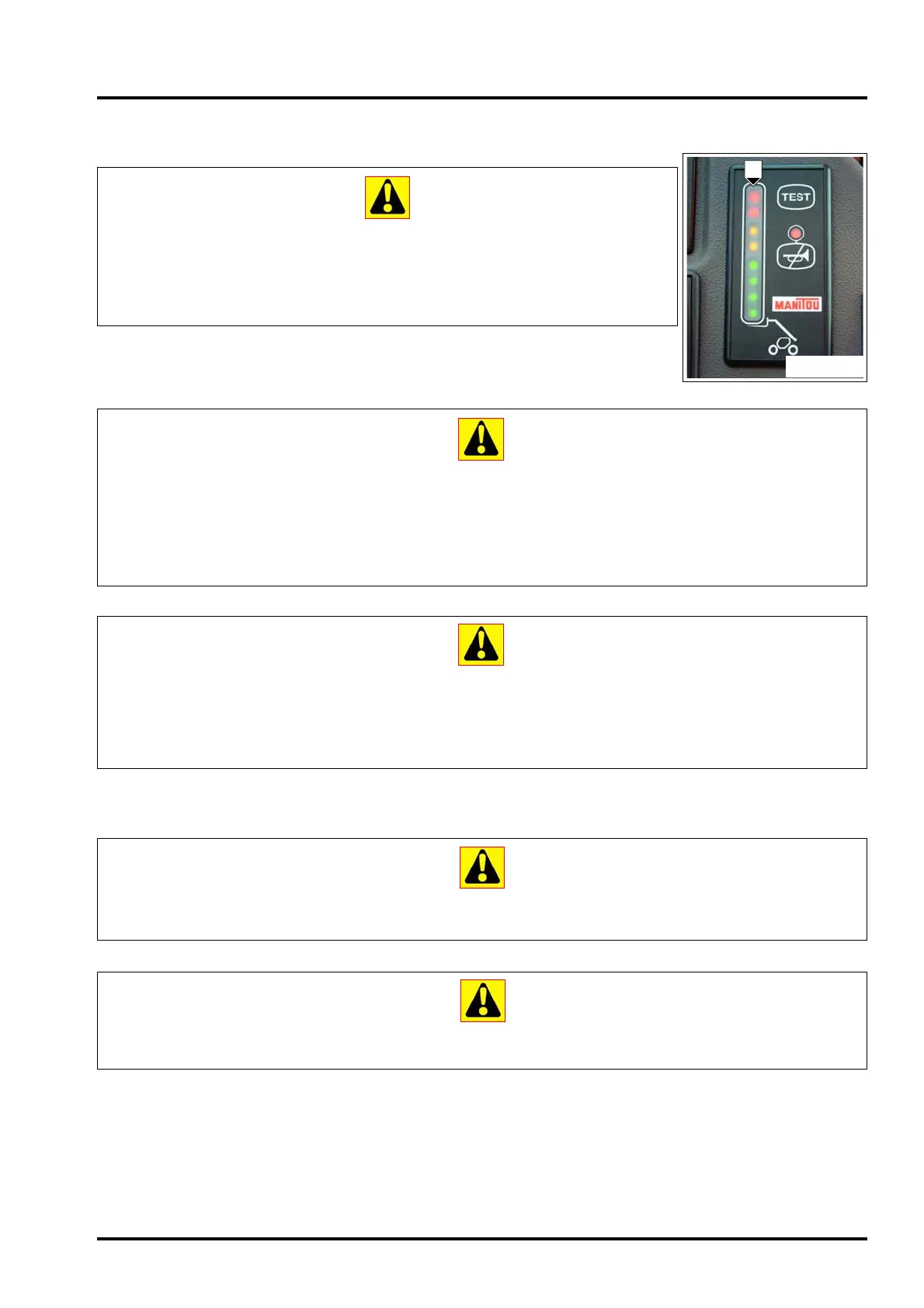

FIG. A
1
