24
2
MHT 10120 L M
Series
3
3
1
1
-
-

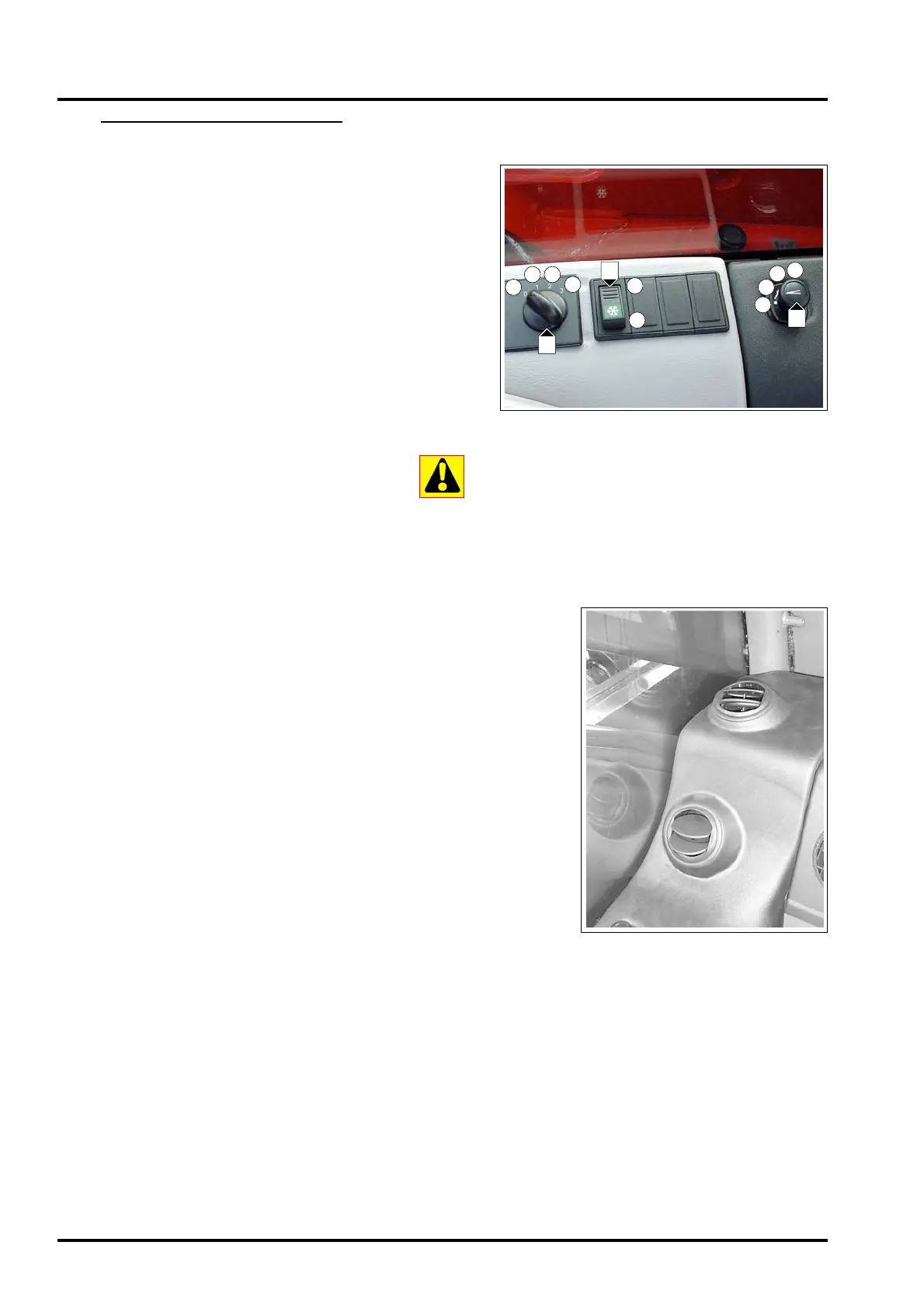

AIR CONDITIONING (OPTIONAL)
A) COMPRESSOR SWITCH
This switch has two positions :
A0 - Off (indicator light Off)
A1 - On (compressor switched on, indicator light On)
N.B. The indicator light On indicates the compressor is
switched on.
ATTENTION : The compressor switches on only with the fan knob turned to C1-C2-C3.
If the fan knob is on C0, the compressor is not switched on.
B) Knob
Regulates the air flow in the supplementary inlets located behind the
operator seat.
B0 - Off
B1 - 1
st
speed
B2 - 2
nd
speed
B3 - 3
rd
speed
Adjust the direction of the inlets located behind the operator seat.
C) Front fan knob
C0 - Off
C1 - 1
st
speed
C2 - 2
nd
speed
C3 - 3
rd
speed
B0
C1 C2
C0
C3
B1
B2
B3
A0
A1
B
C
A
