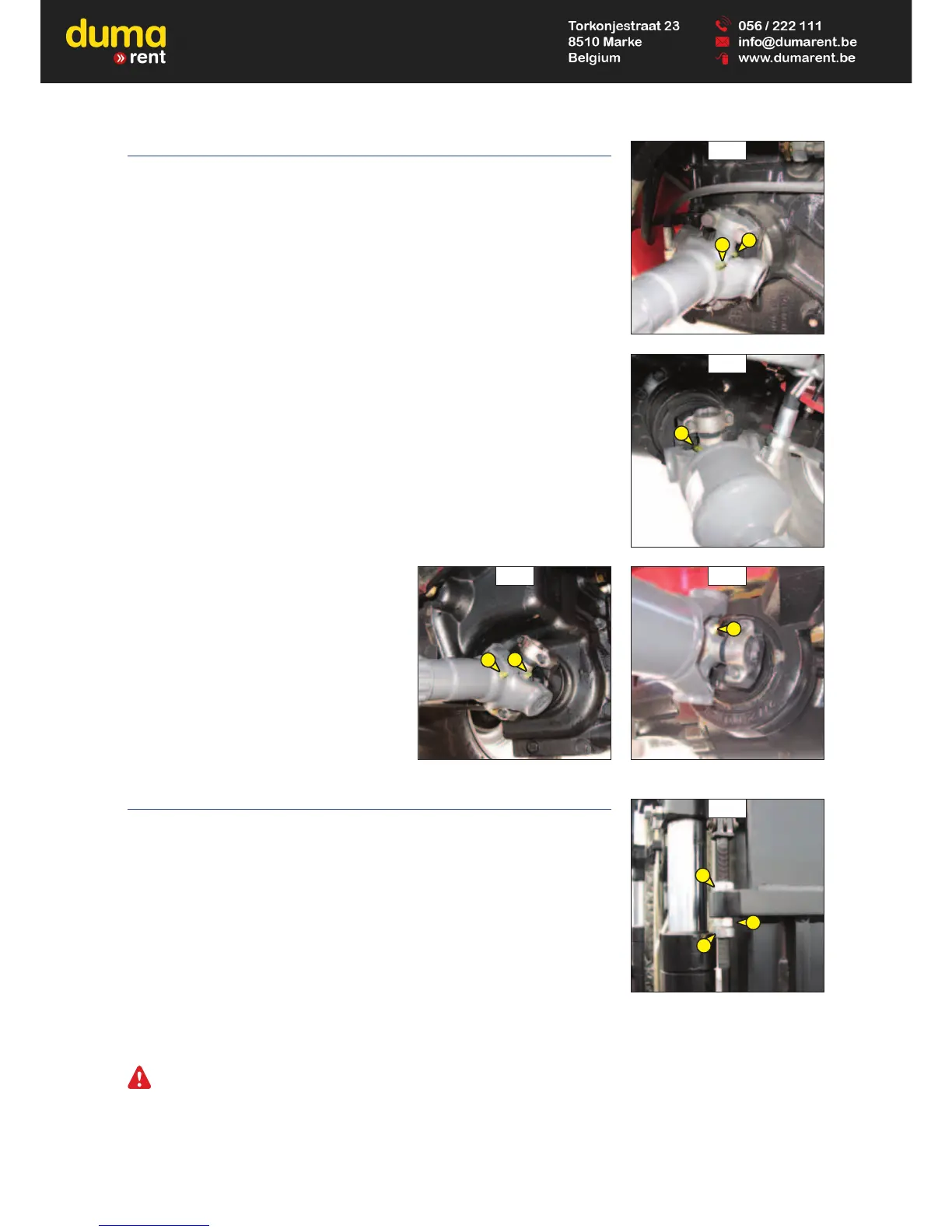

B4 - TRANSMISSION UNIVERSAL JOINT
GREASE
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS AND
FUEL) and remove the surplus of grease.
1 - Lubricators of the universal joint Transmission/Front axle (3 lubricators) (fig. B4/1 and
B4/2).
M 26-4 Turbo Série 3-E3 M 30-4 Turbo Série 3-E3
M 40-4 Turbo Série 3-E3 M 50-4 Turbo Série 3-E3
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS AND
FUEL) and remove the surplus of grease.
2 - Lubricators of the universal joint Transmission/Rear axle (3 lubricators) (fig. B4/3 and
B4/4).
B5 - TENSION AND ALIGNMENT OF THE MAST LIFTING CHAINS
CHECK - ADJUST
MC 30 Turbo Série 3-E3 M 26-2 Turbo Série 3-E3 M 26-4 Turbo Série 3-E3
M 30-2 Turbo Série 3-E3 M 30-4 Turbo Série 3-E3
Place the lift truck on level ground with the mast in a vertical position and the forks raised
approximately 200 mm.
- Check the alignment of the mast lifting chains between the carriage’s chain fasteners and the
chain rollers.
- Manually verify the chain tension, if necessary adjust as following while ensuring that the
carriage is perpendicular to the mast.
- Untighten the nut 1 (fig. B5).
- Untighten the lock nut 2 (fig. B3) of the chain tension adjuster.
- Adjust the tension by tightening or untightening the nut 3 (fig. B5) while checking the
alignment of the lifting chains.
- Then block the lock nut 2 (fig. B5) and the nut 3 (fig. B5).
- Retighten the nut 1 (fig. B5).
These checks are important for the good working operation of the mast. In case of technical faults, consult your dealer.
B5
1
2
3
B4/2
1
B4/4
B4/1
1
1
2
B4/3
2
2
647003 EN (03/01/2012)
