Manitou MC 70 Turbo POWERSHIFT Serie 3-E3 User Manual

2-36

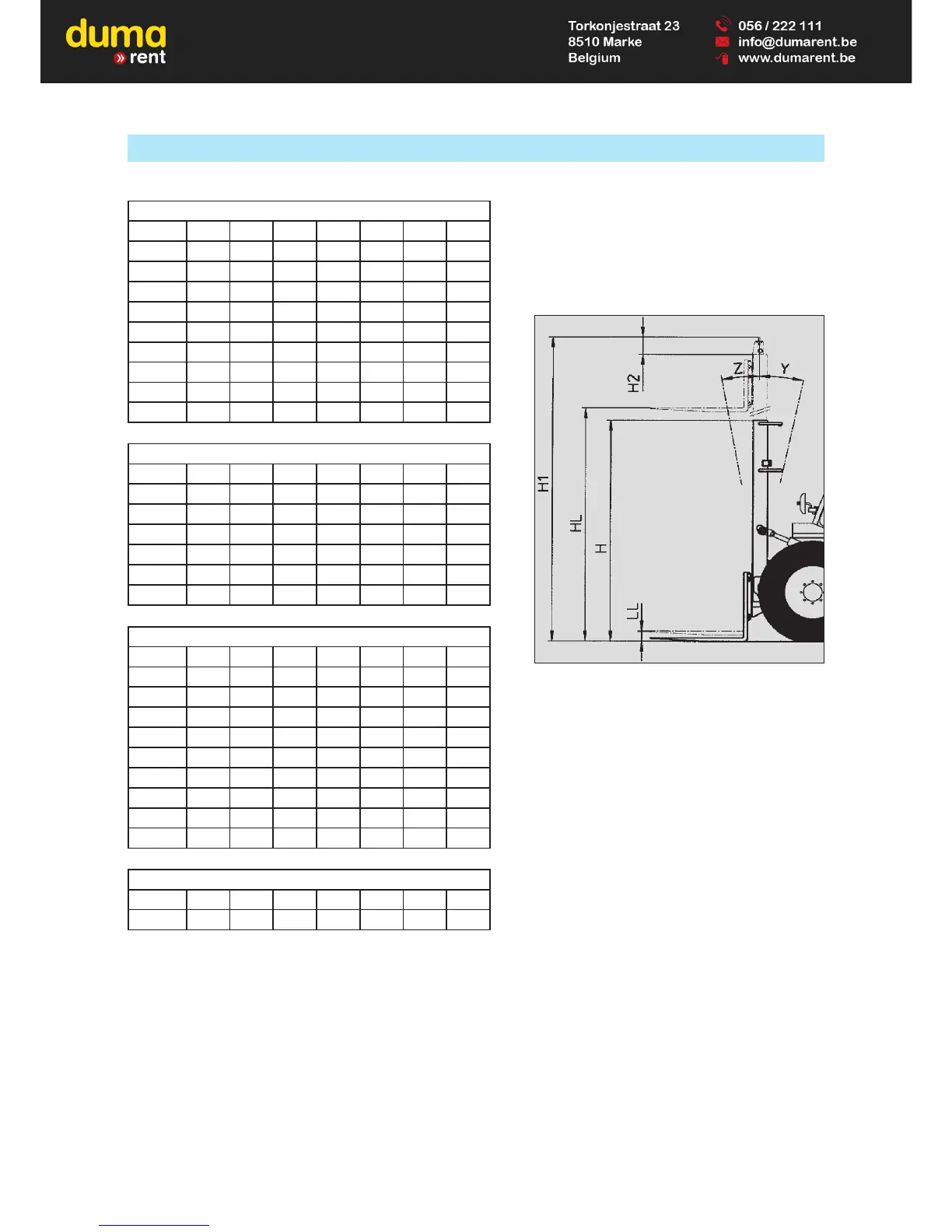

CHARACTERISTICS OF MASTS WITH ROLLERS
MC 30 Turbo Série 3-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3030 6° 12° 130 2305 4045 290
3m30 3330 6° 12° 130 2455 4345 290
3m50 3530 6° 12° 130 2555 4545 290
3m70 3730 6° 12° 130 2715 4745 230
4m00 4030 6° 12° 130 2905 5045 190
4m50 4530 6° 12° 130 3155 5545 190
5m00 5030 6° 12° 130 3405 6045 190
5m50 5530 6° 12° 130 3655 6545 190
6m00 6030 6° 12° 130 4015 7195 190
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3040 6° 12° 1383 2305 3962 167
3m30 3340 6° 12° 1533 2455 4262 167
3m50 3540 6° 12° 1633 2555 4462 167
3m70 3740 6° 12° 1793 2715 4662 167
4m00 4040 6° 12° 1983 2905 4962 167
4m50 4540 6° 12° 2233 3155 5462 167
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3740 6° 12° 1283 2205 4662 47
4m00 4040 6° 12° 1383 2305 4962 47
4m30 4340 6° 12° 1533 2455 5262 47
4m70 4740 6° 12° 1633 2555 5662 47
5m00 5040 6° 12° 1793 2715 5962 47
5m50 5540 6° 12° 1983 2905 6462 47
6m00 6040 6° 12° 2233 3155 6962 47
6m50 6540 6° 12° 2483 3405 7462 47
7m00 7040 6° 12° 2733 3655 7962 47
TRIPLE MAST WITHOUT FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
5m505 5545 6° 10° 0 2985 6655 0
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with retracted mast in mm
H1 : Overall height with extended mast in mm
H2 : Carriage overhang in mm
647003 EN (03/01/2012)
