2-37

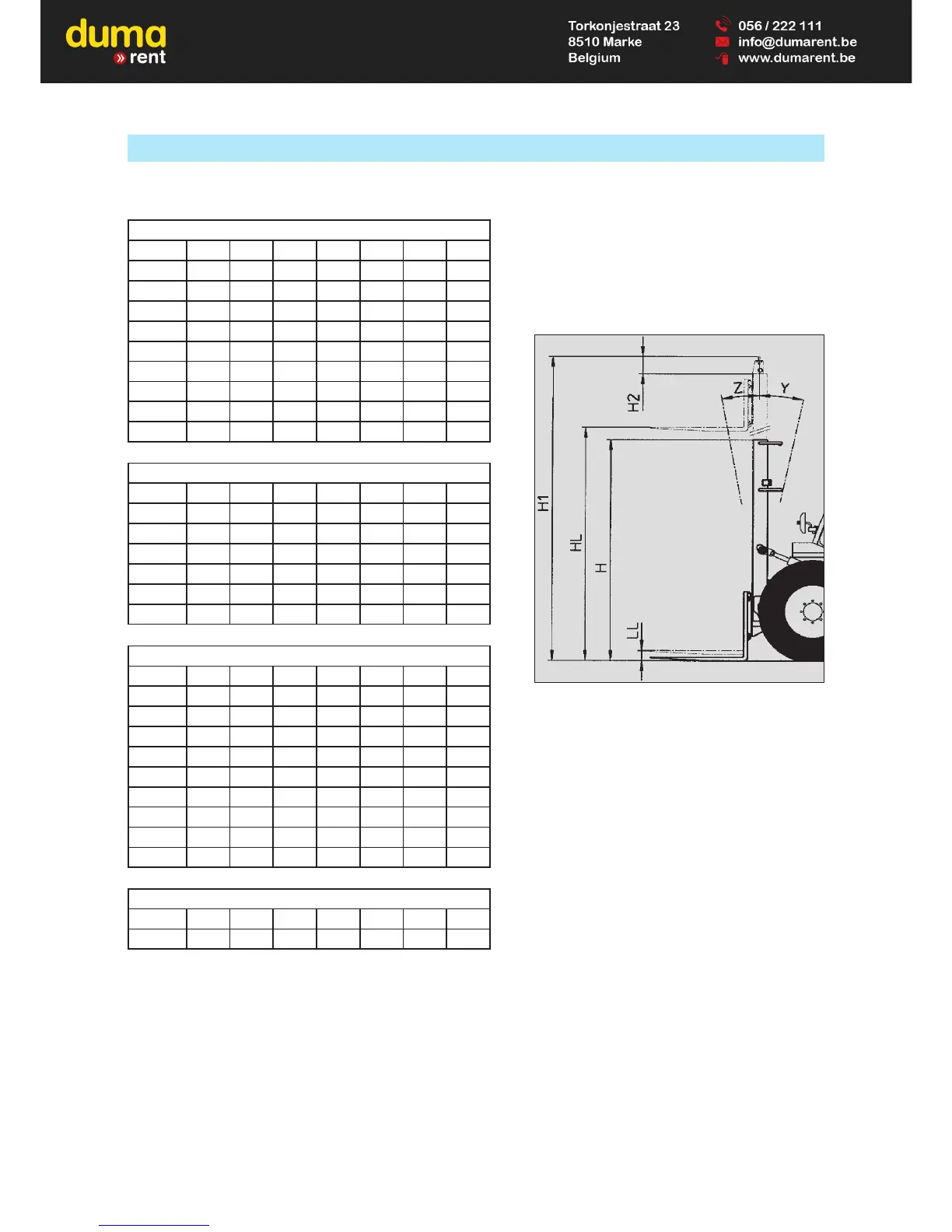

CHARACTERISTICS OF MASTS WITH ROLLERS
M 26-2 Turbo Série 3-E3 M 26-4 Turbo Série 3-E3
M 30-2 Turbo Série 3-E3 M 30-4 Turbo Série 3-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3030 6° 12° 130 2375 4115 290
3m30 3330 6° 12° 130 2525 4415 290
3m50 3530 6° 12° 130 2625 4615 290
3m70 3730 6° 12° 130 2785 4815 230
4m00 4030 6° 12° 130 2975 5115 190
4m50 4530 6° 12° 130 3225 5615 190
5m00 5030 6° 12° 130 3475 6115 190
5m50 5530 6° 12° 130 3725 6615 190
6m00 6030 6° 12° 130 3975 7115 190
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3040 6° 12° 1383 2375 4032 167
3m30 3340 6° 12° 1533 2525 4332 167
3m50 3540 6° 12° 1633 2625 4532 167
3m70 3740 6° 12° 1793 2785 4732 167
4m00 4040 6° 12° 1983 2975 5032 167
4m50 4540 6° 12° 2233 3225 5532 167
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3740 6° 12° 1283 2275 4732 47
4m00 4040 6° 12° 1383 2375 5032 47
4m30 4340 6° 12° 1533 2525 5532 47
4m70 4740 6° 12° 1633 2625 5732 47
5m00 5040 6° 12° 1793 2785 6032 47
5m50 5540 6° 12° 1983 2975 6532 47
6m00 6040 6° 12° 2233 3225 7032 47
6m50 6540 6° 12° 2483 3475 7532 47
7m00 7040 6° 12° 2733 3725 8032 47
TRIPLE MAST WITHOUT FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
5m505 5545 6° 12° 0 3055 6725 0
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with retracted mast in mm
H1 : Overall height with extended mast in mm
H2 : Carriage overhang in mm
647003 EN (03/01/2012)
