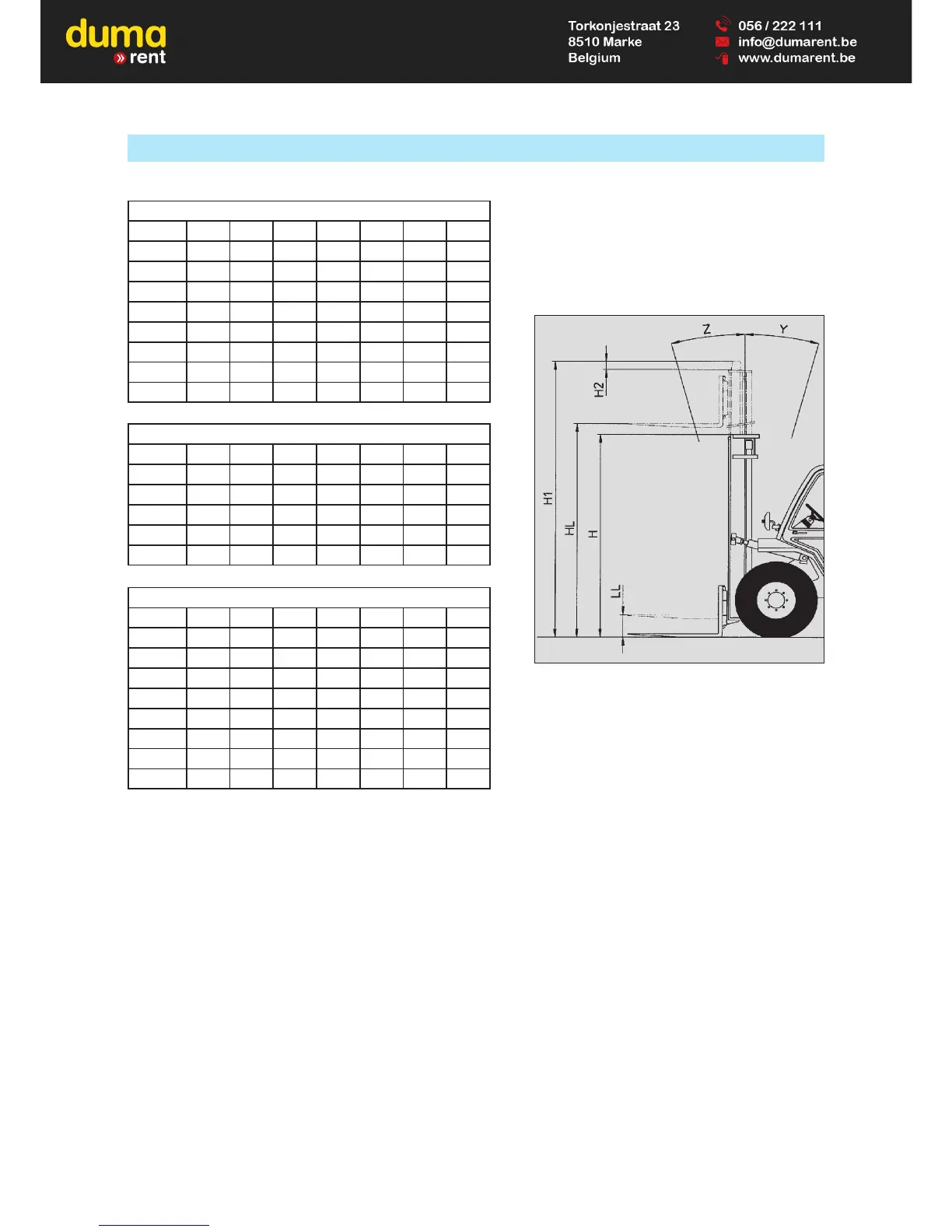

CHARACTERISTICS OF MASTS WITH ROLLERS
M 50-4 Turbo Série 3-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3060 15° 15° 0 2560 4115 55
3m30 3360 15° 15° 0 2710 4415 55
3m50 3560 15° 15° 0 2810 4615 55
3m70 3760 15° 15° 0 2910 4815 55
4m00 4060 15° 15° 0 3060 5115 55
4m50 4560 15° 15° 0 3305 5615 55
5m00 5060 15° 15° 0 3560 6115 55
5m50 5560 15° 15° 0 3810 6615 55
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3060 15° 15° 1528 2585 4117 32
3m30 3360 15° 15° 1678 2735 4417 32
3m50 3560 15° 15° 1778 2835 4617 32
3m70 3760 15° 15° 1878 2935 4817 32
4m00 4060 15° 15° 1978 3085 5517 32
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3760 15° 15° 1265 2310 4805 45
4m00 4060 15° 15° 1365 2410 5105 45
4m30 4360 15° 15° 1465 2510 5405 45
4m50 4560 15° 15° 1540 2585 5605 20
4m70 4760 15° 15° 1600 2645 5805 40
5m00 5060 10° 15° 1715 2760 6105 15
5m50 5560 10° 15° 1865 2910 6605 45
6m00 6060 10° 15° 2040 3085 7105 20
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with retracted mast in mm
H1 : Overall height with extended mast in mm
H2 : Carriage overhang in mm
647003 EN (03/01/2012)
