C - TRANSVERSE ATTITUDE OF THE LIFT TRUCK
The transverse attitude is the transverse slope of the chassis with respect to the horizontal.
Raising the load reduces the lift truck’s lateral stability. The transverse attitude must be set with the mast in down position as follows:
- Position the lift truck so that the bubble in the level is between the two lines (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).
D - TAKING UP A LOAD ON THE GROUND
- Approach the lift truck perpendicular to the load, with the the forks in a horizontal position
(fig. D1).
"EKVTUUIFGPSLTQSFBEBOEDFOUFSJOHJODPOOFDUJPOXJUIUIFMPBEGJH%PQUJPOBMTPMVUJPOT
exist, consult your dealer).
- Never lift a load with a single fork.
Beware of the risks of trapping or squashing limbs when manually adjusting the forks.
- Move the lift truck forward slowly (1) and bring the forks to stop in front of the load (fig. D3), if
necessary, slightly lift the mast (2) while taking up the load.
- Bring the load into the transport position.
- Tilt the load far enough backwards to ensure stability (loss of load on braking or going downhill).
FOR A NON-PALLETIZED LOAD
- Tilt the carriage (1) forwards and move the lift truck slowly forwards (2), to insert the fork under
the load (fig. D4) (block the load if necessary).
- Continue to move the lift truck forwards (2) tilting the carriage (3) (fig. D4) backwards to
position the load on the forks and check the load’s longitudinal and lateral stability.

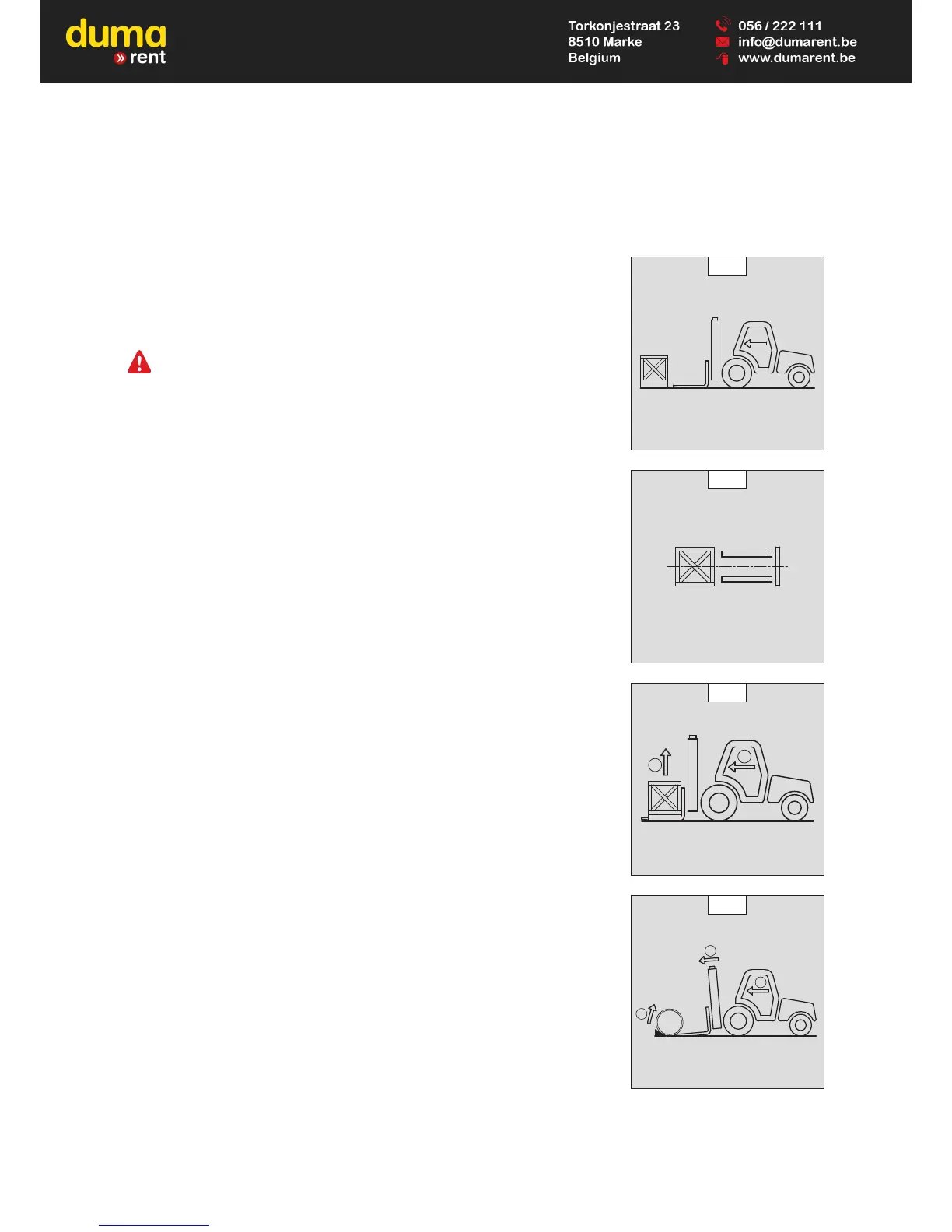

D1
D2
1
2
D3
3
1
2
D4
647003 EN (03/01/2012)
