2-38

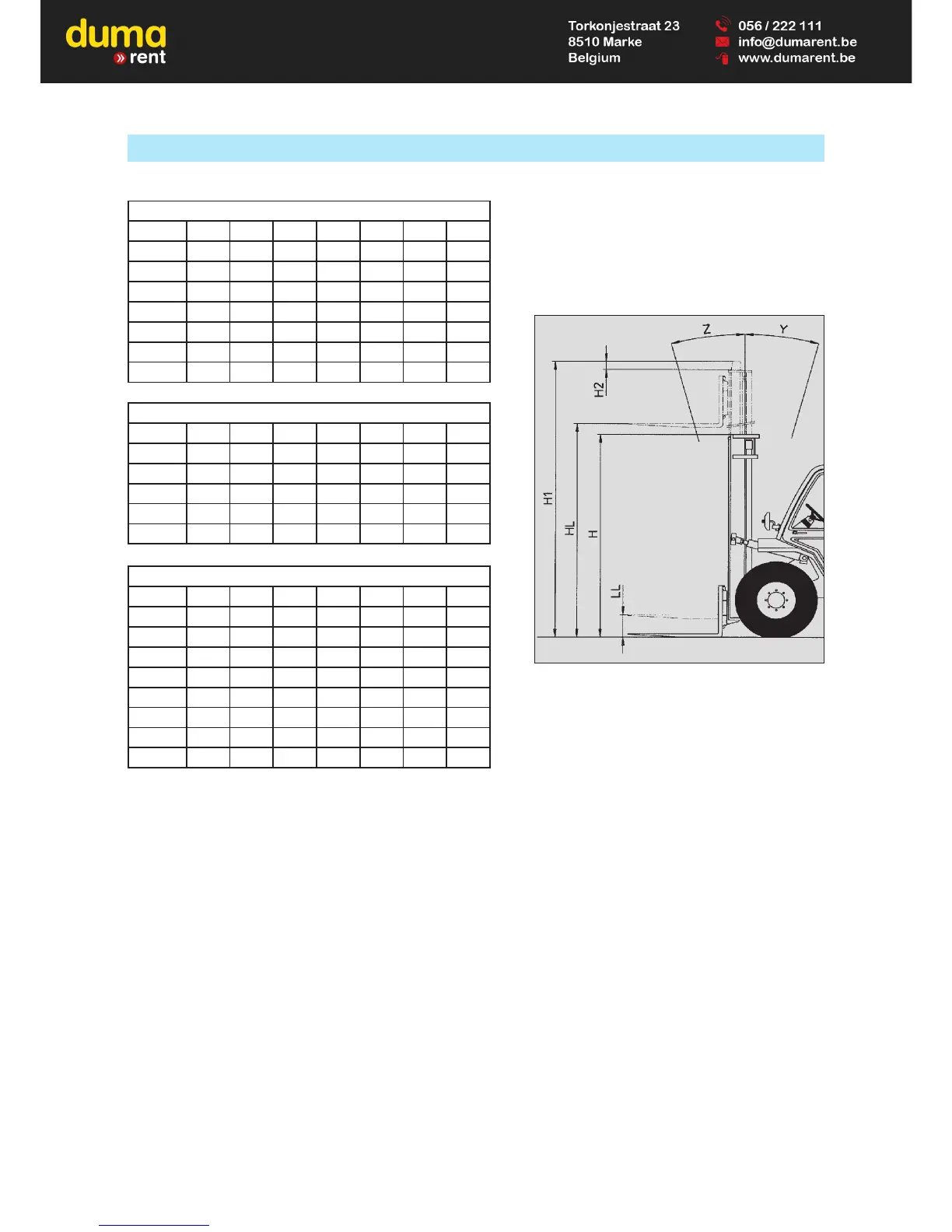

CHARACTERISTICS OF MASTS WITH ROLLERS
M40-4 Turbo Série 3-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3050 15° 15° 0 2560 4115 55
3m30 3350 15° 15° 0 2710 4415 55
3m50 3550 15° 15° 0 2810 4615 55
3m70 3750 15° 15° 0 2910 4815 55
4m00 4050 15° 15° 0 3060 5115 55
4m50 4550 15° 15° 0 3305 5615 55
5m00 5050 15° 15° 0 3560 6115 55
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3050 15° 15° 1518 2585 4117 32
3m30 3350 15° 15° 1668 2735 4417 32
3m50 3550 15° 15° 1768 2835 4617 32
3m70 3750 15° 15° 1868 2935 4817 32
4m00 4050 15° 15° 1968 3085 5517 32
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3750 15° 15° 1255 2310 4805 45
4m00 4050 15° 15° 1355 2410 5105 45
4m30 4350 15° 15° 1455 2510 5405 45
4m50 4550 15° 15° 1530 2585 5605 20
4m70 4750 15° 15° 1590 2645 5805 40
5m00 5050 10° 15° 1705 2760 6105 15
5m50 5550 10° 15° 1855 2910 6605 45
6m00 6050 10° 15° 2030 3085 7105 20
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with retracted mast in mm
H1 : Overall height with extended mast in mm
H2 : Carriage overhang in mm
647003 EN (03/01/2012)
