2-41

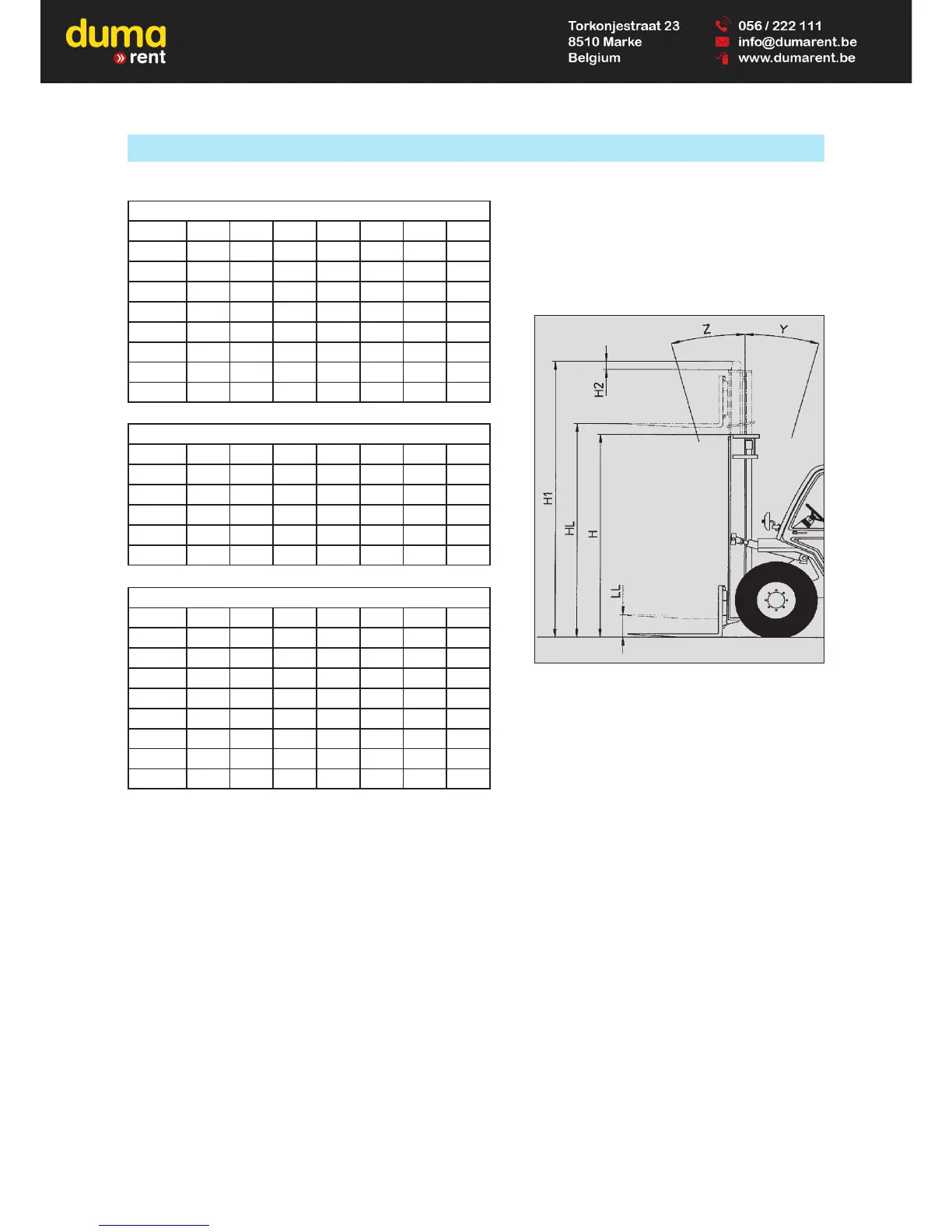

CHARACTERISTICS OF MASTS WITH ROLLERS
MC 50 Turbo POWERSHIFT Série 3-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3060 15° 15° 0 2505 4050 45
3m30 3360 15° 15° 0 2655 4350 45
3m50 3560 15° 15° 0 2755 4550 45
3m70 3760 15° 15° 0 2855 4750 45
4m00 4060 15° 15° 0 3005 5050 45
4m50 4560 15° 15° 0 3250 5550 45
5m00 5060 15° 15° 0 3505 6050 45
5m50 5560 15° 15° 0 3755 6550 45
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3060 15° 15° 1528 2530 4062 32
3m30 3360 15° 15° 1678 2680 4362 32
3m50 3560 15° 15° 1778 2780 4562 32
3m70 3760 15° 15° 1878 2880 4762 32
4m00 4060 15° 15° 2028 3030 5062 32
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3760 15° 15° 1265 2255 4750 45
4m00 4060 15° 15° 1365 2355 5050 45
4m30 4360 15° 15° 1465 2455 5350 45
4m50 4560 15° 15° 1540 2530 5550 20
4m70 4760 15° 15° 1600 2590 5750 40
5m00 5060 10° 15° 1715 2750 6050 15
5m50 5560 10° 15° 1865 2855 6550 45
6m00 6060 10° 15° 2040 3030 7050 20
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with retracted mast in mm
H1 : Overall height with extended mast in mm
H2 : Carriage overhang in mm
647003 EN (03/01/2012)
