3 - 24

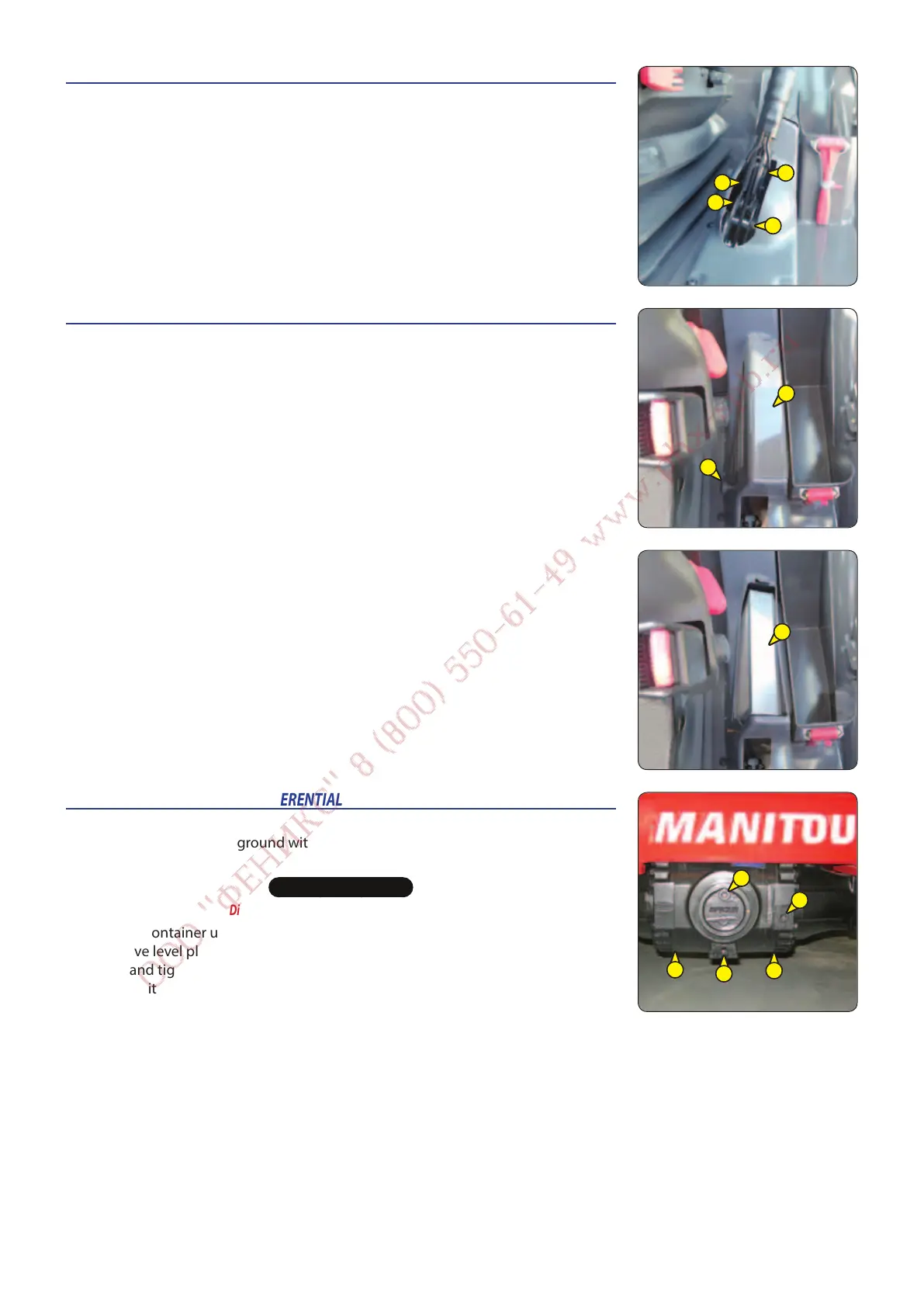

D6 – PARKING BRAKE LEVER MECHANISM
GREASE
- Clean and grease hinge pins 1 with grease (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL).
D7 – CAB VENTILATION FILTER
CLEAN
- Unscrew thumbscrew 1 and remove protective casing 2.
- Lift out cab ventilation filter 3.
- Clean the filter with a compressed air jet.
- Check its condition and change if necessary (see: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS).
- Refit the filter and protective casing.
D8 – FRONT AND REAR AXLE DIFFERENTIAL OIL
DRAIN
Place the lift truck on level ground with the engine stopped and the differential oil still
warm.

IMPORTANT

Dispose of the drain oil in an ecological manner.
- Place a container under the drain plugs 1 and unscrew them.
- Remove level plug 2 and filling plug 3 to ensure that the oil is drained properly.
- Refit and tighten the drain plugs 1 (tightening torque 34 to 49 N.m).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through filler port 3.
- The level is correct when the oil level is flush with the edge of opening 2.
- Check for any possible leaks at the drain plugs.
- Refit and tighten level plug 2 (tightening torque 34 to 49 N.m) and filler plug 3
(tightening torque 34 to 49 N.m).
- Repeat this operation for the rear axle differential.
1
2
3
3
2
1
1
1
1
1
1
1
