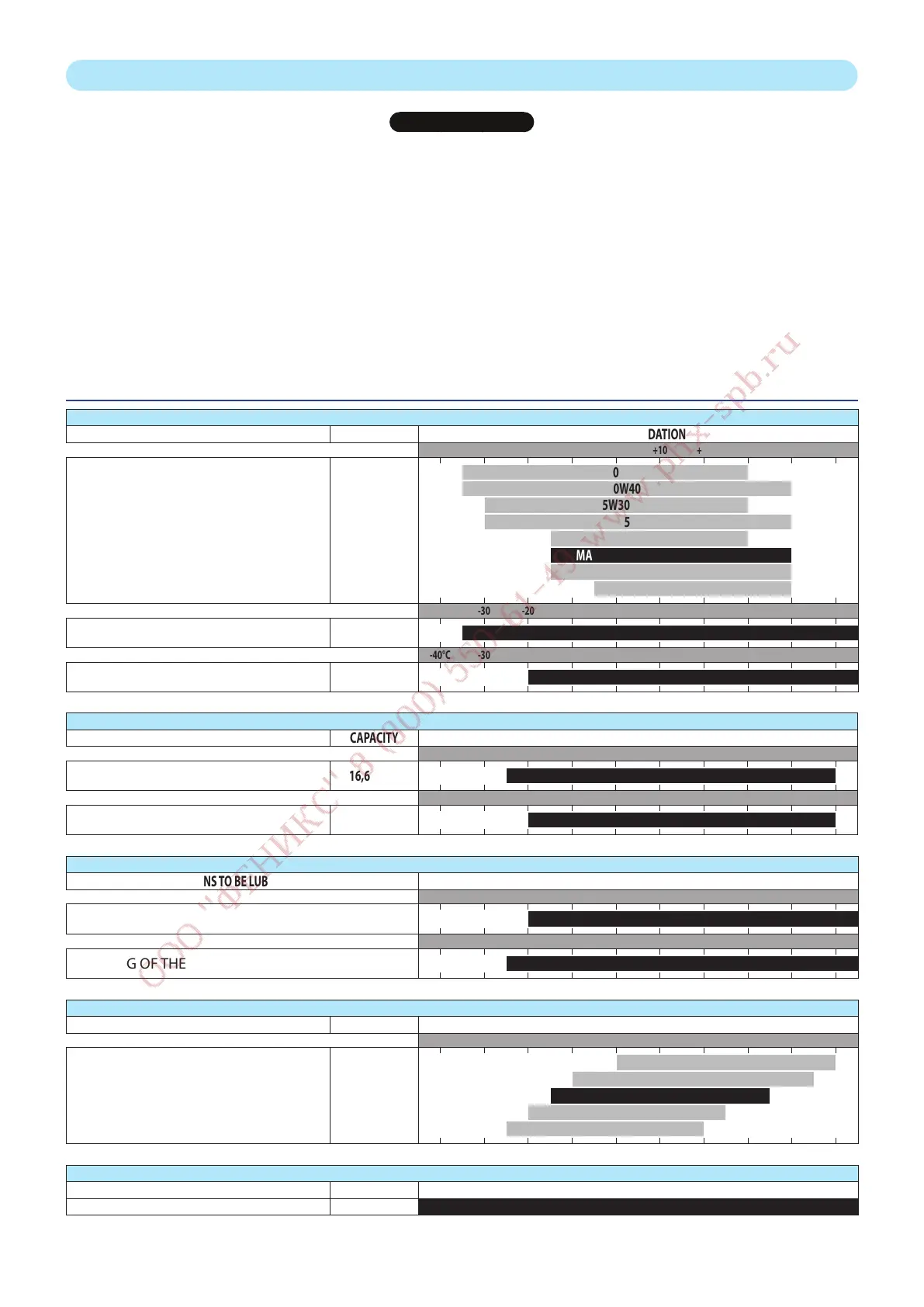

3 - 6
LUBRICANTS AND FUEL
t
IMPORTANT
t
USE THE RECOMMENDED LUBRICANTS AND FUEL:
- For topping up, oils may not be miscible.
- For oil changes, MANITOU oils are perfectly appropriate.
DIAGNOSTIC ANALYSIS OF OILS
If a service or maintenance contract has been organized with the dealer, a diagnostic analysis of engine, transmission and
axle oils may be requested depending on the rate of use.
(*) REQUIRED FUEL SPECIFICATION:
Use a high-quality fuel to obtain optimal performance of the engine.
• Type of diesel fuel EN590 (rate of sulfur < 10 ppm)
• Type of diesel fuel ASTM D975 (rate of sulfur < 15 ppm)
RECOMMENDATION
ENGINE
ORGANS TO BE LUBRICATED CAPACITY RECOMMENDATION
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
0W30
0W40
5W30
5W40
10W30
ENGINE
9 Litres MANITOU OIL EVOLOGY 10W40 API CJ4
15W40
20W50
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
COOLING CIRCUIT
20,5 Litres COOLING LIQUID -35°C
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
FUEL TANK
120 Litres DIESEL FUEL *
TRANSMISSION
ORGANS TO BE LUBRICATED CAPACITY RECOMMENDATION
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
GEAR BOX
16,6 Litres MANITOU OIL AUTOMATIC TRANSMISSION DX IIIG
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
ANGLE GEAR BOX
2,2 Litres MANITOU OIL SAE80W90 MECHANICAL TRANSMISSION
BOOM
ORGANS TO BE LUBRICATED RECOMMENDATION
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
BOOM PADS
MANITOU GREASE BLACK MULTI-PURPOSE
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
GREASING OF THE BOOM
MANITOU GREASE BLUE MULTI-PURPOSE
HYDRAULIC
ORGANS TO BE LUBRICATED CAPACITY RECOMMENDATION
-40°C -30 -20 -10 0 +10 +20 +30 +40 +50°C
ISO VG 100
ISO VG 68
HYDRAULIC OIL TANK
110 Litres MANITOU OIL HYDRAULIC ISO VG 46
ISO VG 37
ISO VG 32
BRAKE
ORGANS TO BE LUBRICATED CAPACITY RECOMMENDATION
BRAKE CIRCUIT
1 Litre MANITOU OIL MINERAL BRAKE FLUID
647449 (30/11/2015)
MT 732/932 ST3B
