Manitou MT732ST38 - Identification of the Lift Truck; Mt 732 St3 B; Mt 932 St3 B

2 - 8

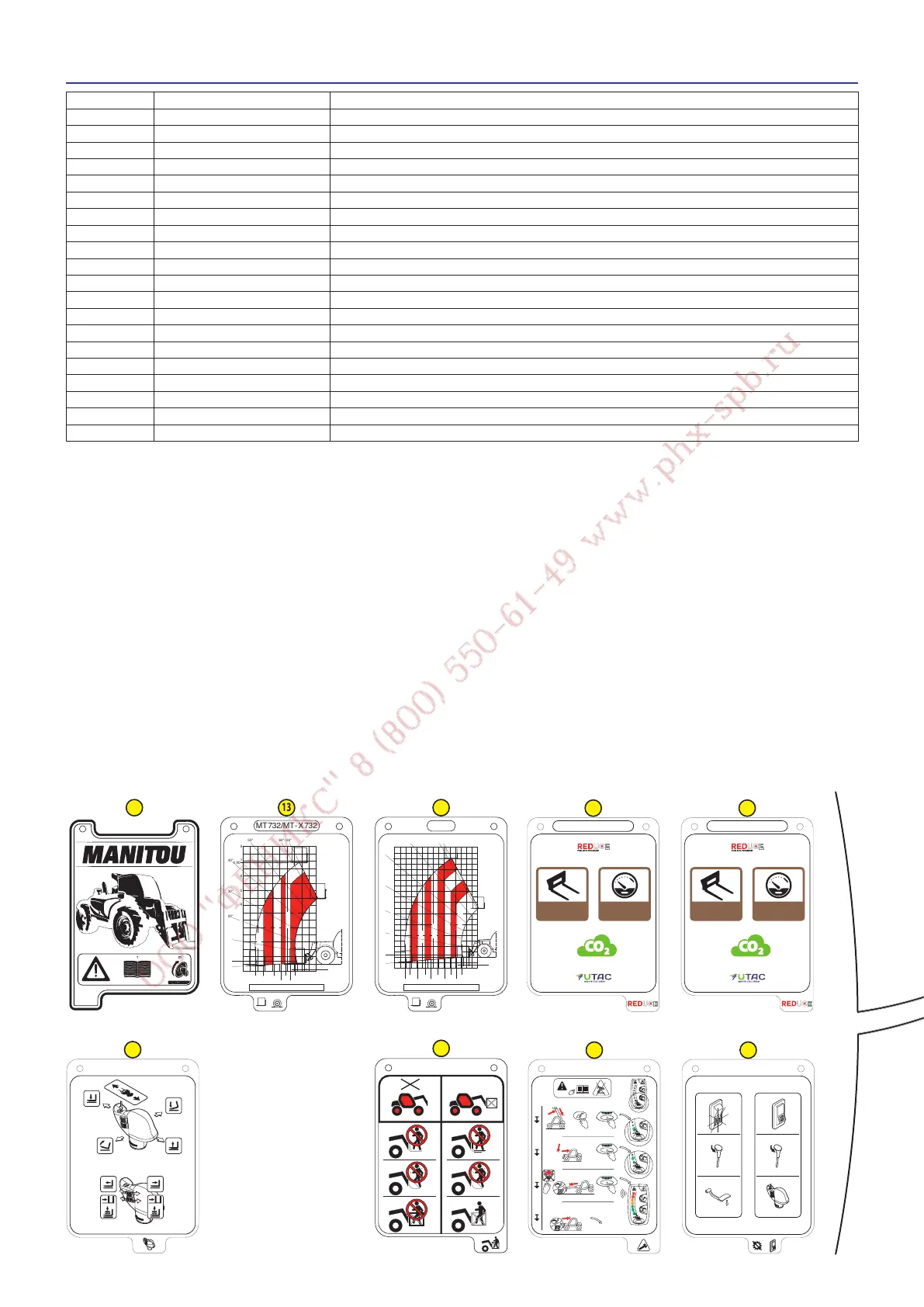

PLATES AND STICKERS IN THE CAB
ITEM PART NO. DESCRIPTION
1 193032 - Cab compliance
2 223324 - Patents
3 Consult your dealer - Manufacturer's plate
4 239596 - Sound power level 106dB
5 268491 - Brake fluid instruction
6 33460 - Gear lever
7 265284 - Lifting ring on single carriage (option)
8 184276 - Steering selection control
9 290183 - Bucket instruction on telescope
10 297733 - Operating mode management instruction
11 52505437 - Fuses
12 52503175 - Reach chart sheet
13 Consult your dealer - Load chart (MT 732 ST3B)
14 Consult your dealer - Load chart (MT 932 ST3B)
15 286277 - Manipulator function
16 241621 - Safety instruction
17 294831 - Resetting procedure
18 272040 - Transmission cut-off switch function
19 52527268 - Consumption sheet (MT 732 ST3B)
20 52527270 - Consumption sheet (MT 932 ST3B)
