2 - 56

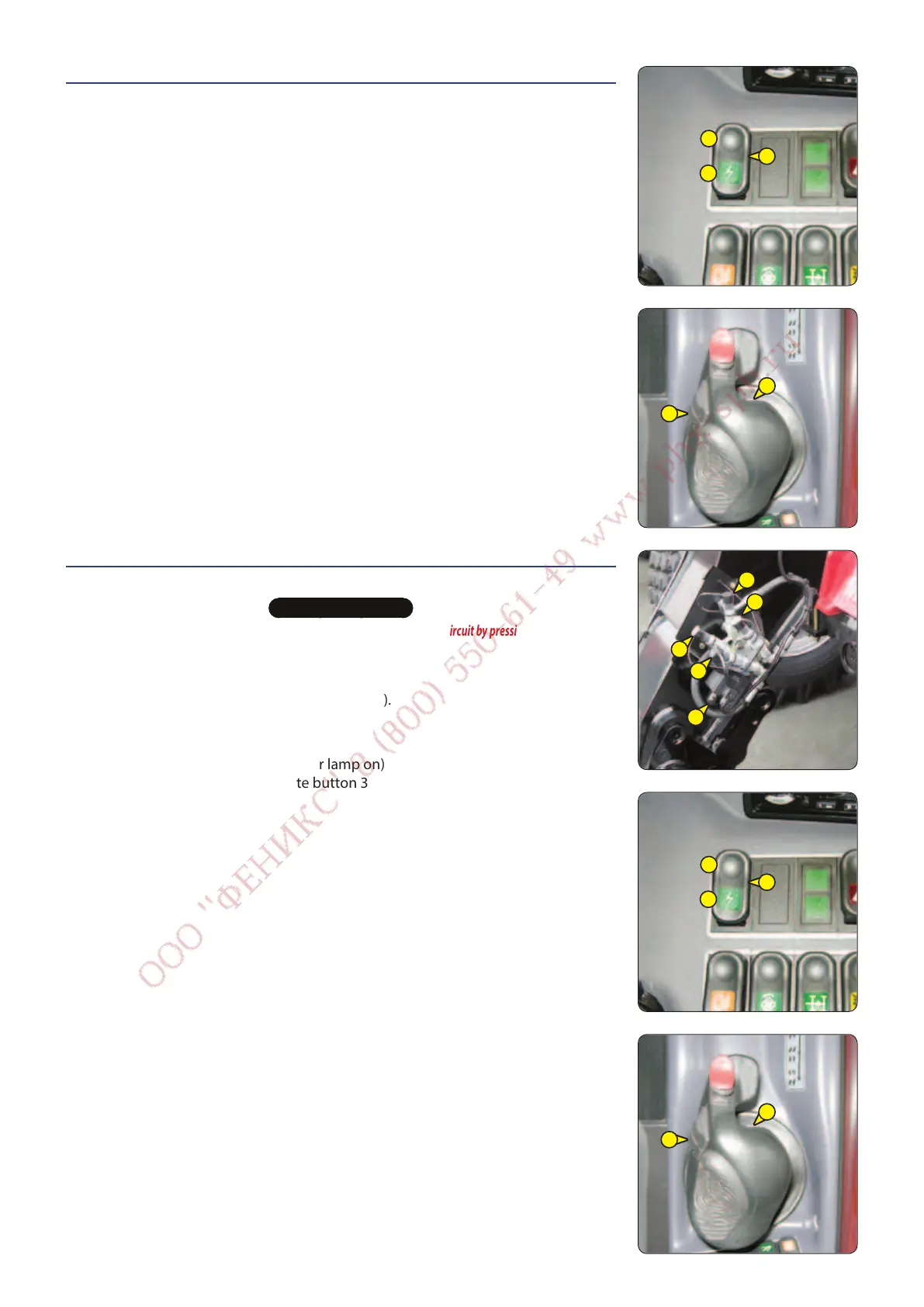

8 - BOOM ELECTRICAL PREDISPOSITION
Enables an electrical function to be used at the telescope head.
BOOM ELECTRIC FUNCTION CONTROL
- Set switch 1 to position B (indicator lamp on).
- Hold down button 2 and operate button 3 forwards or backwards.
NOTE: Setting switch 1 to position A (indicator lamp off) controls the hydraulic
attachment line (see: 2 - DESCRIPTION: 20 - HYDRAULIC AND TRANSMISSION
CUT-OFF CONTROLS).
9 - HEAD TELESCOPE ELECTROVALVE
Enables use of two hydraulic functions on the attachment circuit.
IMPORTANT
For ease of connection of the quick-release couplers, decompress the hydraulic circuit by pressing button 1 on the
electrovalve.
ATTACHMENT LINE L1 CONTROL
- Set switch 2 to position A (indicator lamp off).
- Operate button 3 forward or backward.
ATTACHMENT LINE L2 CONTROL
- Set switch 2 to position B (indicator lamp on).
- Hold down button 4 and operate button 3 forwards or backwards.
A
B
1
A
B
2
L1
L2
L1
L2
1
3
2
3
4
647449 (30/11/2015)
MT 732/932 ST3B
