Manitowoc Published 10-01-12, Control # 044-05 v2 3-53
777 OPERATOR’S MANUAL OPERATING CONTROLS AND PROCEDURES
3

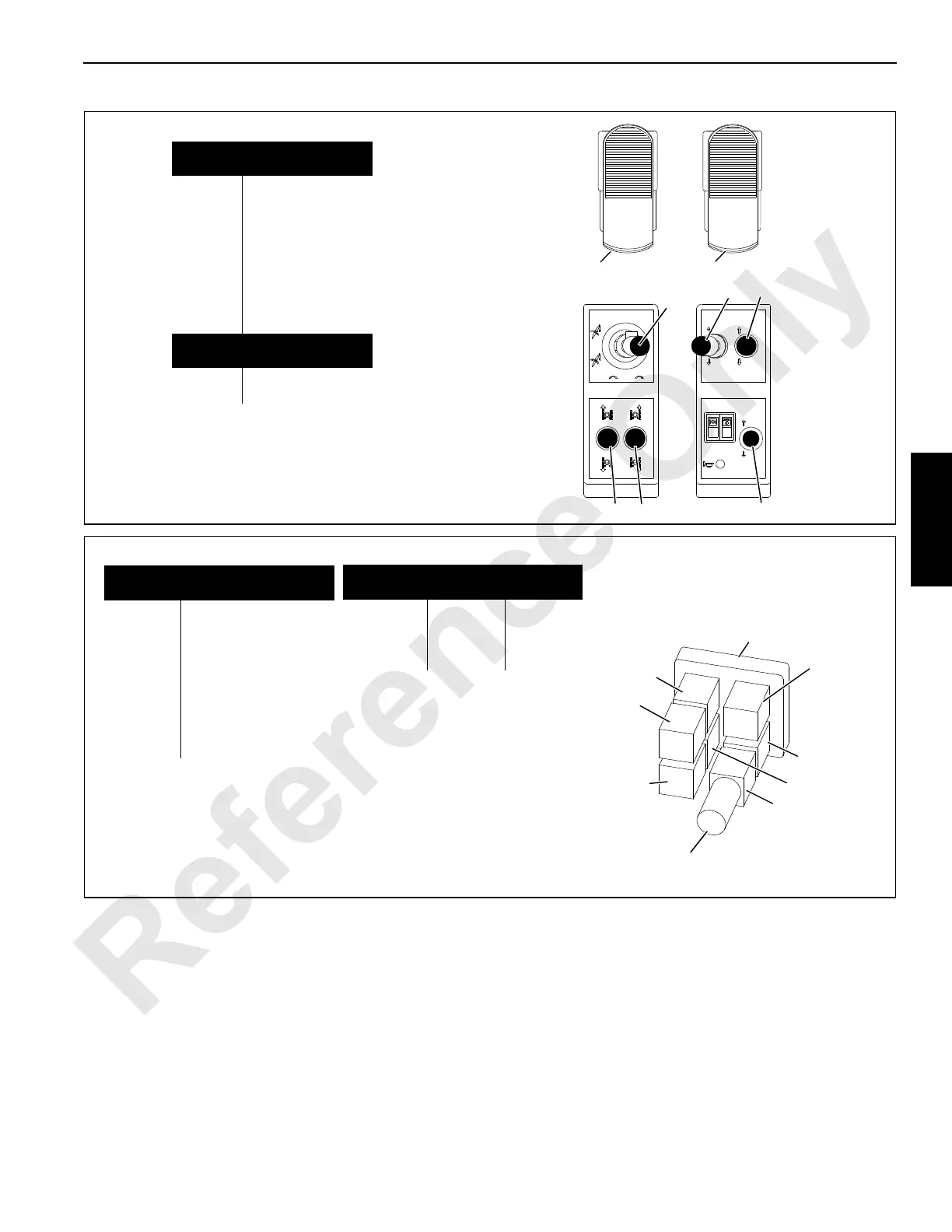

Handle/Pedal Identification
* Activated only in LUFFING JIB Mode.
Handle
Number
Handle
1 Front Load Drum
2 Rear Load Drum or
Luffing Hoist*
3 Boom Hoist
4 Swing
5 Right Crawler
6 Left Crawler
7 Auxiliary Load Drum
(in butt)
Pedal
Number
Pedal
1 Right Crawler
2 Left Crawler
FIGURE 3-32
6
5
7
3
4
12
12
A969
Pump Identification
** When not equipped with an
auxiliary load drum, pump 1 is
mounted next to pump drive.
When equipped with an auxiliary
load drum, pump 10 is mounted
next to pump drive and pump 1 is
mounted on rear of pump 10.
Pump
Number
Pump
0 Front Load Drum
1 Rear Load Drum or
Luffing Hoist
2 Boom Hoist
3Swing
4 Right Crawler
5 Left Crawler
10 Auxiliary Load Drum
(in butt)
Pump Port Identification
Pump
Number
Port A Port B
0, 1, 2, 10 Raise Lower
3 Right Left
4 Forward Reverse
5 Reverse Forward
0
3
4
1**
5
2
Supercharge/
FIGURE 3-33
A969
Accessory
1 or 10**
Pump
Drive
To Next Page
