5-14 Published 3-23-2020, Control # 654-04
SET-UP AND INSTALLATION GRT655/655L OPERATOR MANUAL
Hook Block
Dead End
FIGURE 5-15 continued

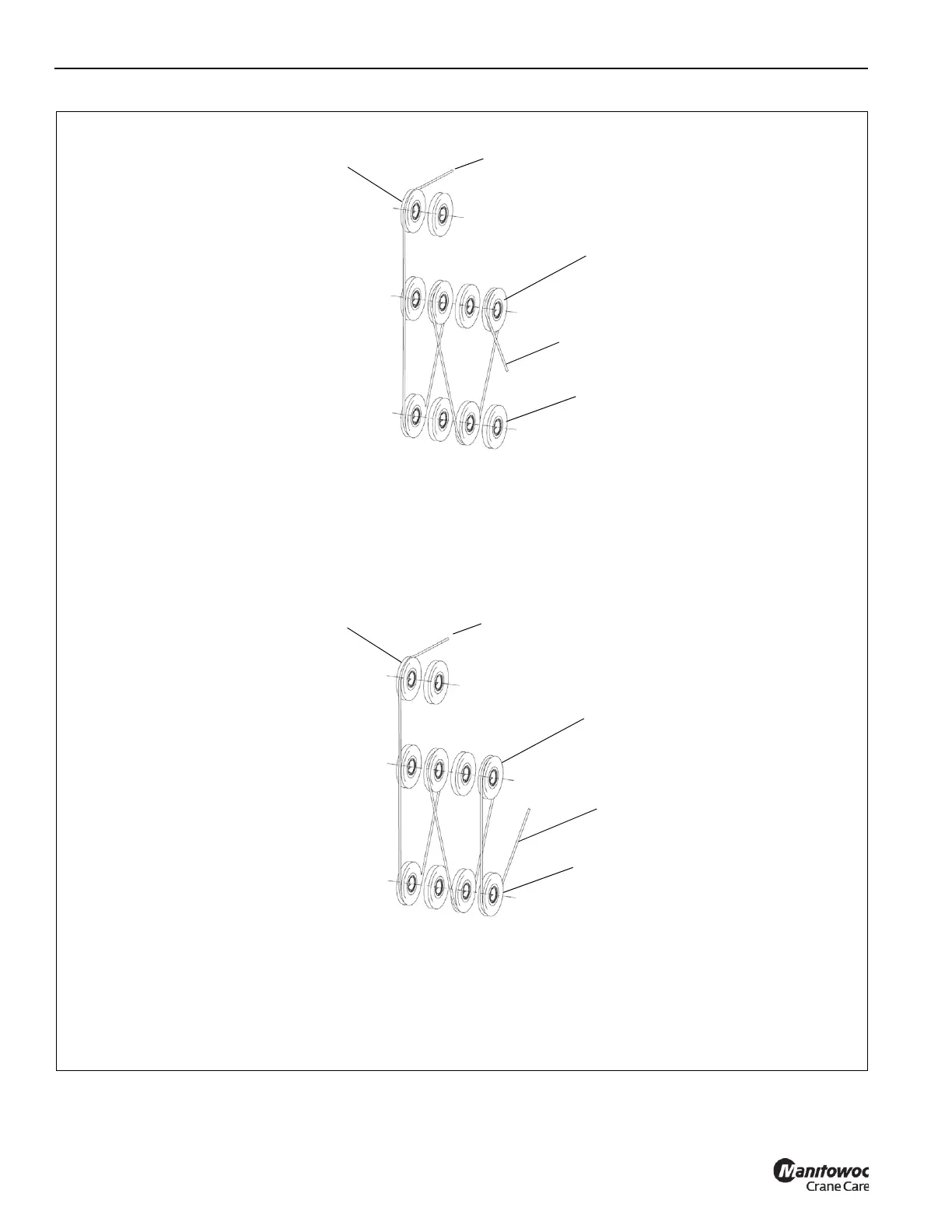

6 Parts Line - 4 Sheave Hook Block
5 Parts Line - 4 Sheave Hook Block
Boom Nose
Dead End
Lower Boom
Nose Sheaves
To Main Hoist
Hook Block
Sheaves
8993-11
Upper Boom Nose
Sheaves
To Main Hoist
Hook Block
Sheaves
Upper Boom Nose
Sheaves
Lower Boom
Nose Sheaves
8993-12
