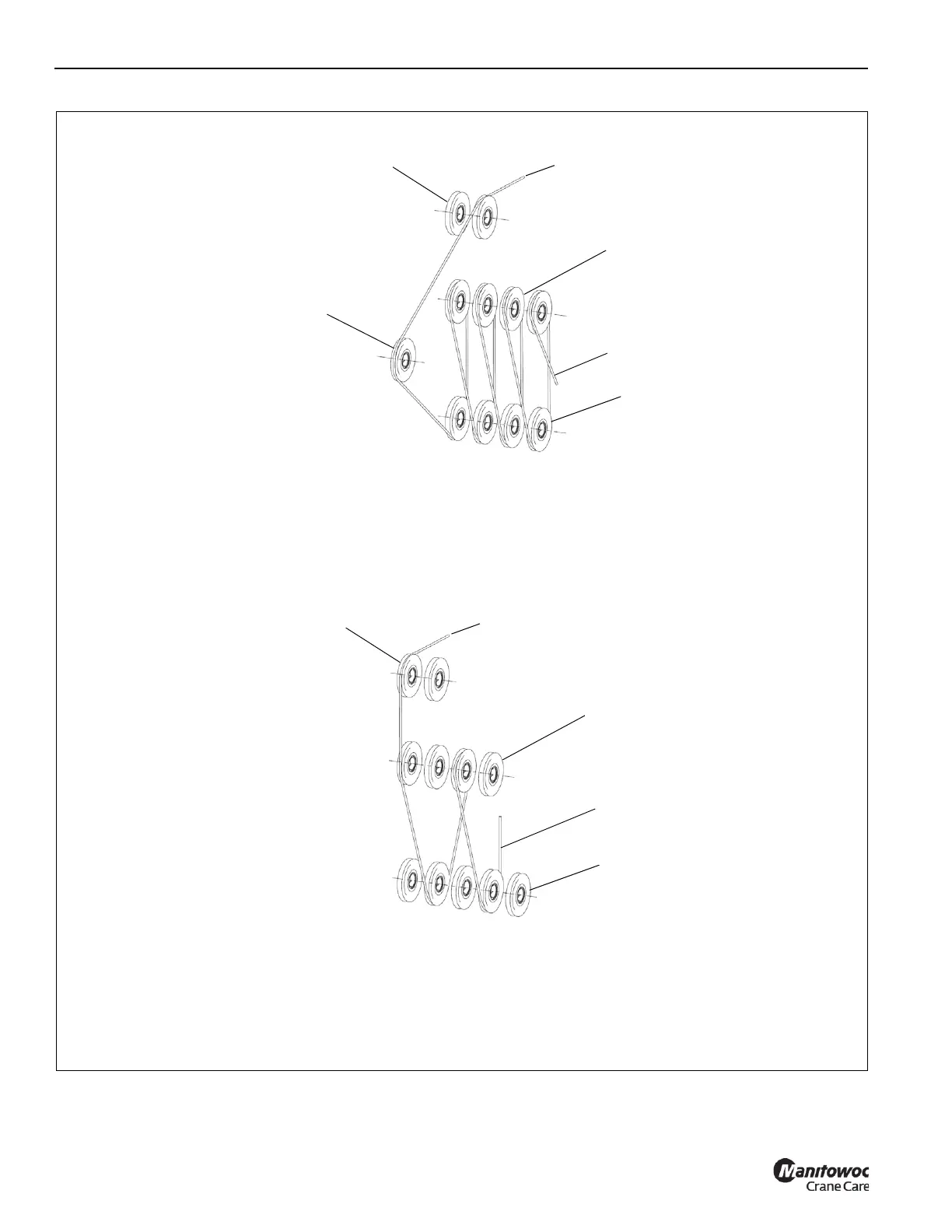

Hook Block
Dead End
FIGURE 5-15 continued
4 Parts Line - 5 Sheave Hook Block
9 Parts Line - 4 Sheave Hook Block with Auxiliary Boom Nose
Boom Nose
Dead End
Lower Boom
Nose Sheaves
To Main Hoist
Hook Block
Sheaves
8993-7
Upper Boom Nose
Sheaves
To Main Hoist
Hook Block
Sheaves
Upper Boom Nose
Sheaves
Lower Boom
Nose Sheaves
8993-8
Auxiliary Boom
Nose Sheave
