SET-UP AND INSTALLATION RT765E-2 OPERATOR MANUAL
4-22 Published 4-09-2021, Control # 364-11
1
3
2
4
3
4
5
6
6
7
7
8
9
6055

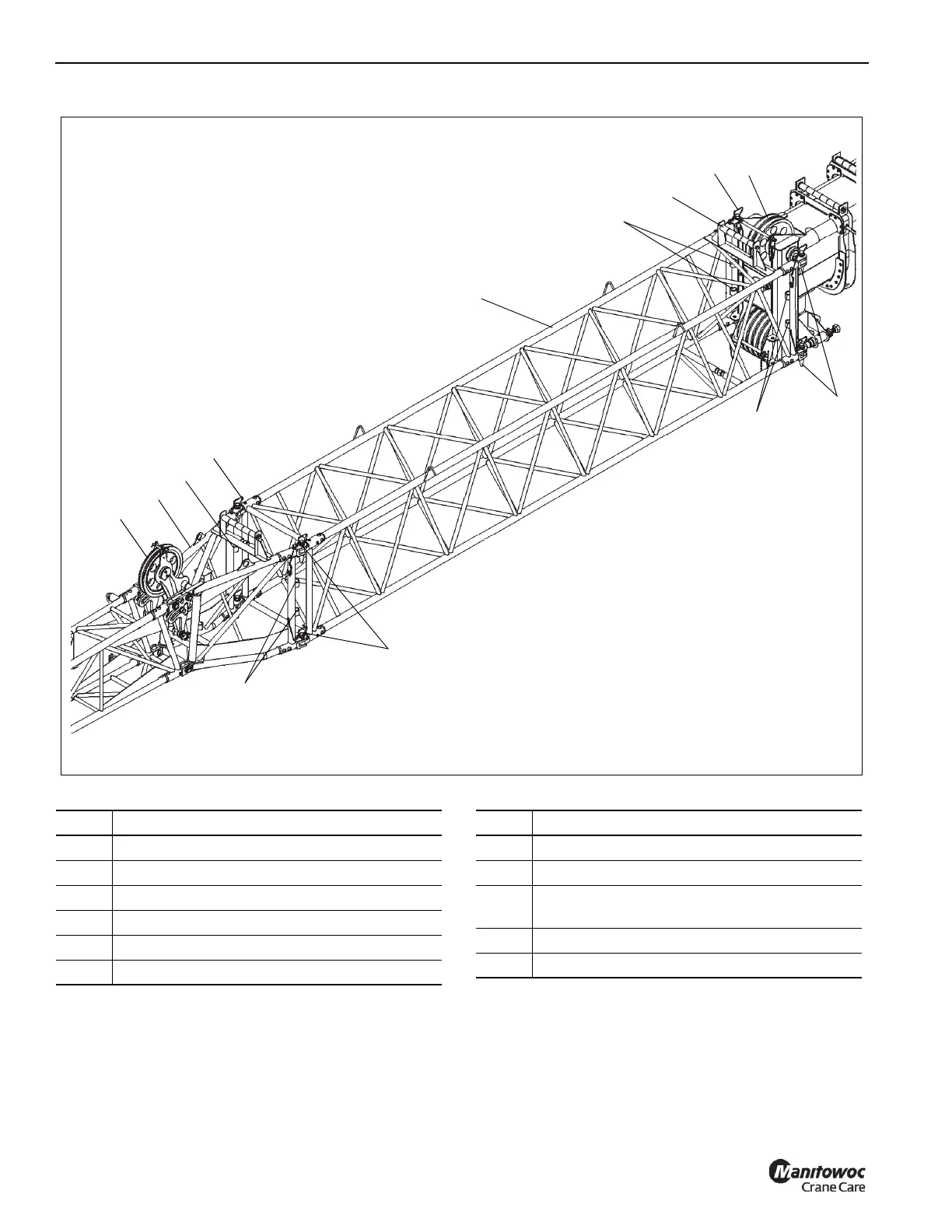

FIGURE 4-20
Item Description
1 Boom Nose Upper Sheaves
2 Cable Roller
3 Insert Attachment Pins
4 Insert Attachment Pins Stowage Lugs
5 20 ft (6.1 m) Insert
6 Bi-Fold Extension Attachment Pins
Item Description
7 Boom Nose Lower Sheaves
8 Boom Extension Attachment Pins
9
Bi-Fold Extension Attachment Pins Stowage
Lugs
10 Offset Link Pins
11 Zero Degree Offset Holes
