16 Part Number 000014141 Rev 11 12/23
Installation Section 2
QUIETQUBE® MODELS
Model Top Back Sides
IF0600C
IF0900C
IT1200C
5"
(13 cm)
5"
(13 cm)
5"
(13 cm)
IBF0620C
IBF0820C
IBT1020C
IF1400C
IT1430C
IF1800C
IT1830C
IF2100C
IT2130C
2"**
(5 cm)
5"
(13 cm)
8"**
(20 cm)
** 24" (61 cm) is recommended on top/sides for
servicing
CONDENSING UNIT MODELS
Model Top/Sides Back Front
CVDF0600
CVDF0900
CVDT1200
CVDF1400
CVDT1400
CVDF1800
CVDT1800
CVDF2100
CVDT2100
0"*
(0 cm)
48"
(122 cm)
48"
(122 cm)
* 24" (61 cm) is recommended on top/sides for
servicing.
Notice
The ice machine must be protected if it
will be subjected to temperatures below
32°F (0°C). Failure caused by exposure to
freezing temperatures is not covered by
the warranty.

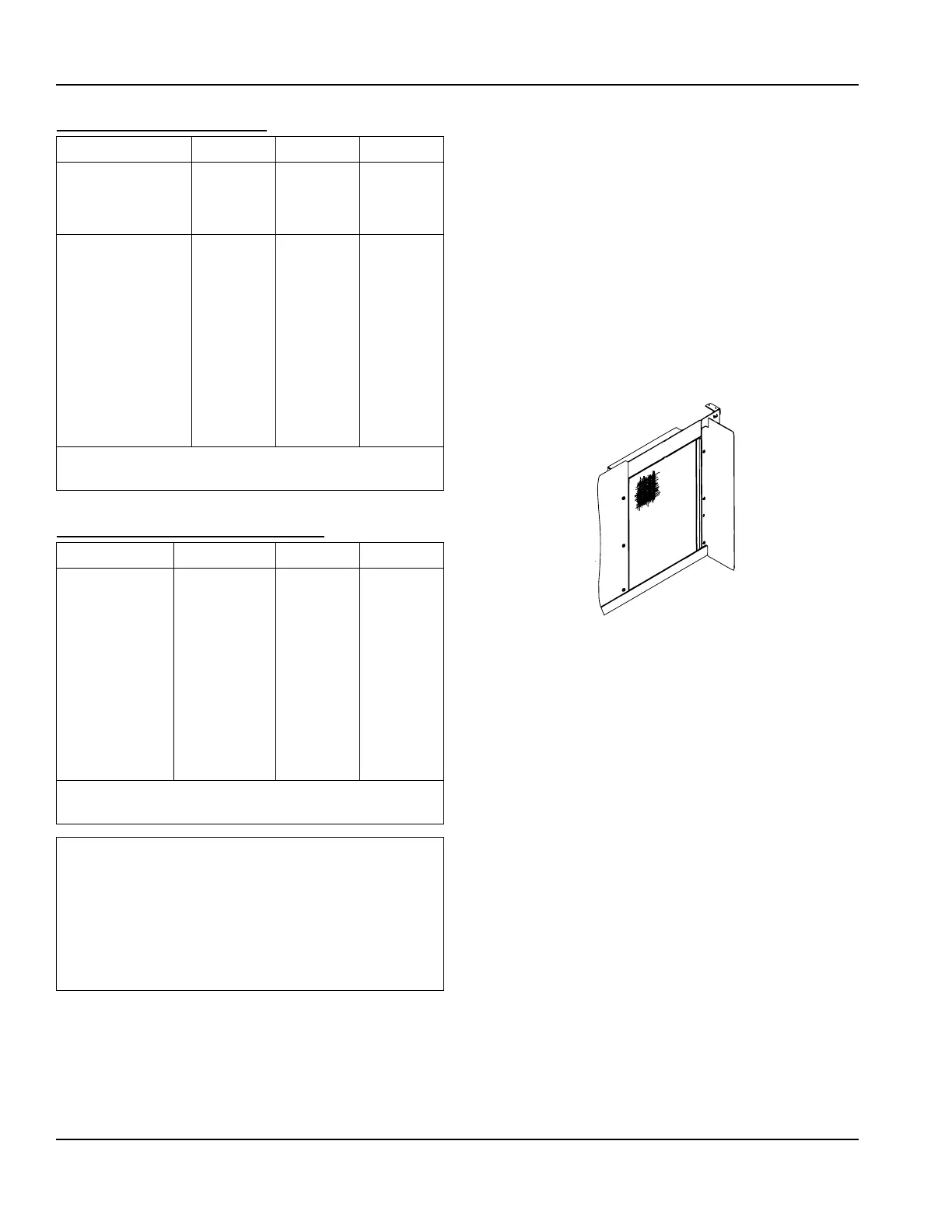

Air Baffle
Self-Contained Air-cooled Only
The air-cooled baffle prevents condenser
air from recirculating.
To install:
1. Loosen the back panel screws next to
the condenser.
2. Align the keyhole slots in the air baffle
with the screw holes and slide the
baffle down to lock in place.
To Next Page
