2 Design and function
eikon e2s Service and Repair Manual UL 12
Item
Name
Function
9
Door seals
The door seals ensure a tight seal around the door.
Always keep them clean
and check regularly for signs of damage. At the first sign of wear have them
replaced by a Merrychef approved service agent.
See
'Cleaning procedures' on page 68.
10
Air diffuser
(not fitted to all appliances)
Keep the air diffuser clean and free of debris. Take great care when cleaning
this area of the appliance noting the different requirements shown unde
r
‘
Cleaning procedures’ on page 68 in this manual.
11
Cavity
The cavity (cooking chamber) is constructed from stainless steel and used
for cooking products. Keep it clean by following the cleaning instructions in
the
‘Cleaning procedures’ on page 68 section of this manual.
Material
The interior and exterior structure of the appliance is made of stainless steel in either a brushed finish or
colour-coded.

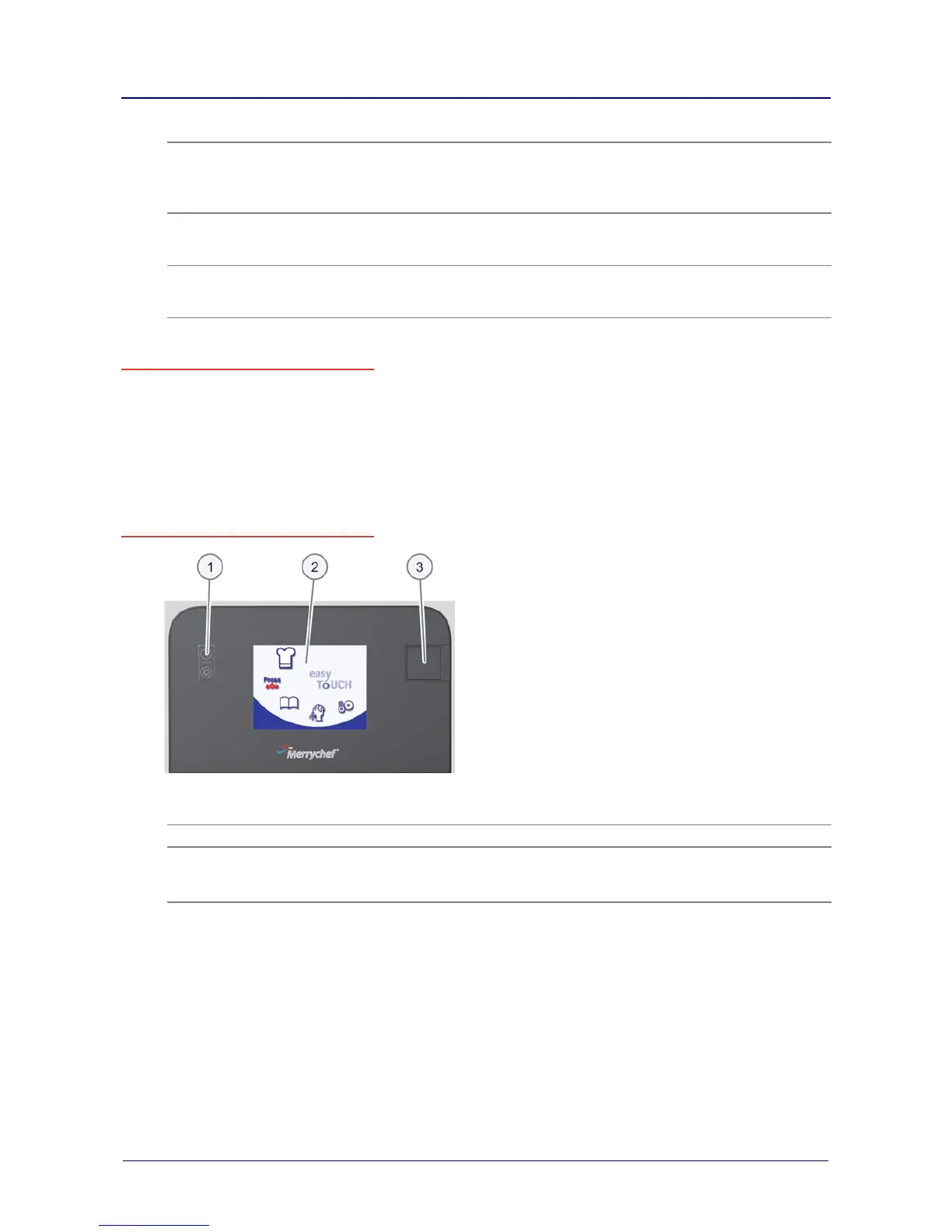

2.2 Layout and function of the operating panel
Elements and their function
Item
Name
Function
1
ON/OFF appliance switch
Switches the microwave combination oven on and off.
2
Touchscreen
Central controls of the appliance
 Appliance operated by touching icons on touchscreen pages
 Status displays
3
USB port
For connecting a USB memory stick
