eikon e2s Service and Repair Manual UL 153

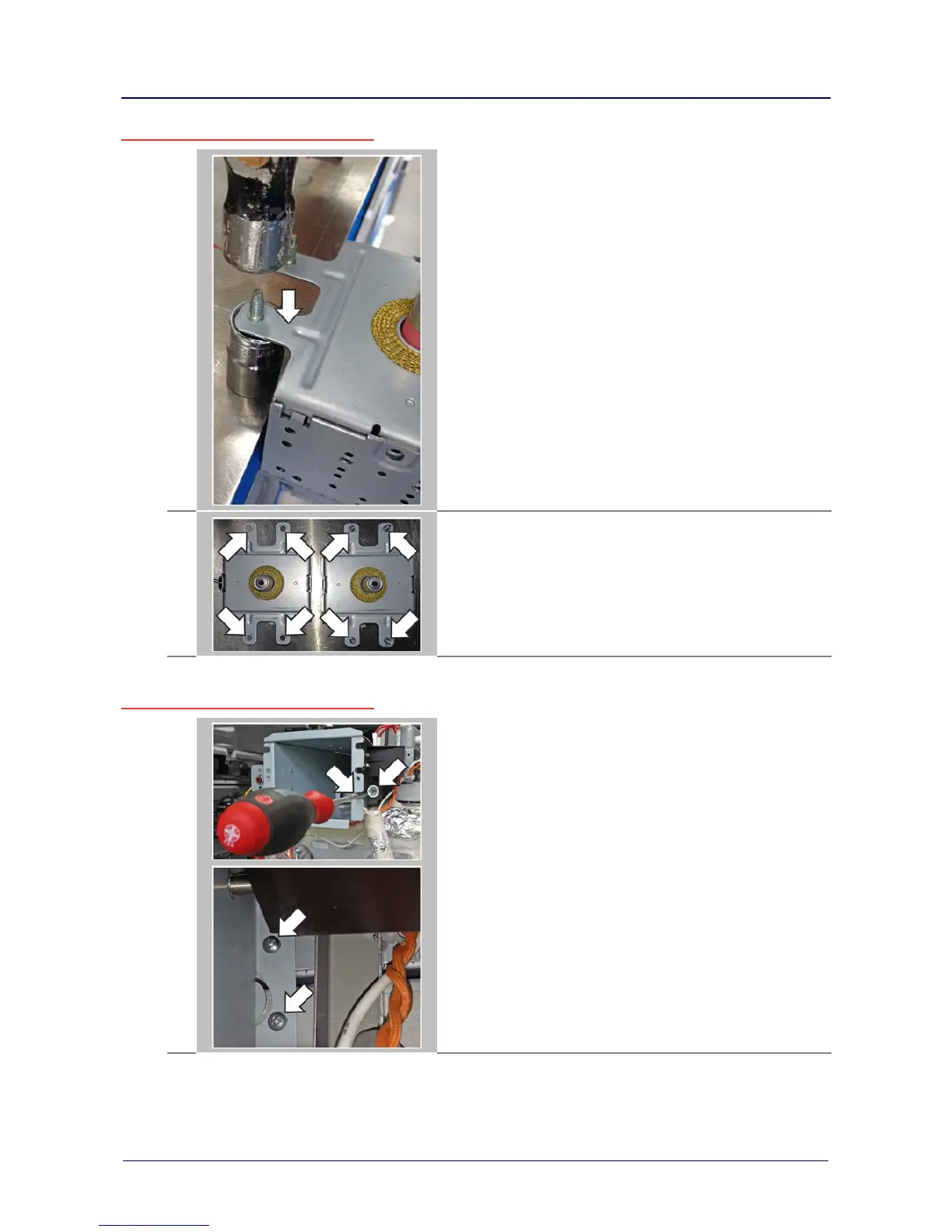

Preparing a spare magnetron
The spare magnetron comes with four pressed bolts. Remove the
bolts before fitting the magnetron to the oven.
NOTE:
The bolts can be removed by knocking them out of the tabs with a
hammer.
Ensure the tabs do not get bended. Secure them by laying them
upon a piece of tube while pushing out the screws.
CAUTION:
Wear personal protective equipment to protect your fingers when
using the hammer.
2.
Comparison of spare magnetrons with (right) and without (left)
pressed bolts.
Removing a magnetron
1.
Unfasten two Pozidriv screws on the right side of the cooling duct
with a long PZ2 Pozidriv screwdriver using the corresponding
access holes at the cooling duct (when looking at the back side of
the oven).
NOTE:
The picture shows the right side of the cooling duct seen from the
outlet of the ducting.
