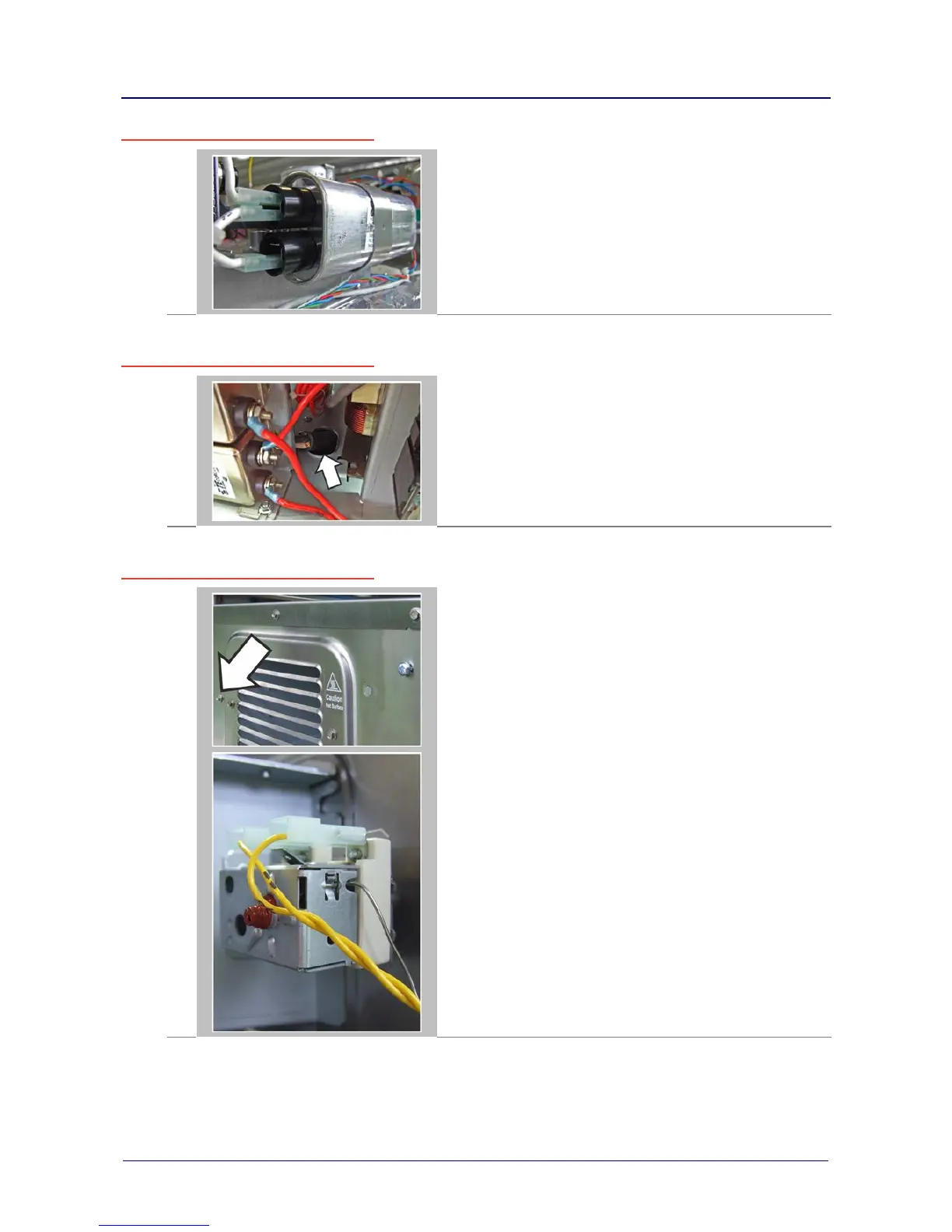

The high voltage capacitor is located on top of the cavity and is
fixed by a sheet metal bracket.
The 2000W e2s variant comprises two high voltage capacitors
each attributed to a magnetron.
Mains cable entering the interior
Cavity high limit
The cavity high limit (cavity temperature limiter) can be accessed
via the rear panel on the left hand side of the grille.
Reset procedure:
Remove the pictured M5.5 hex head flange bolt.
Insert a terminal screwdriver (or similar) into the hole and push
in the button to reset.
After reset refit the M5.5 hex head flange bolt.
NOTE:
No live terminals are accessible through this port.
The panels of the casing do not need to be removed.
