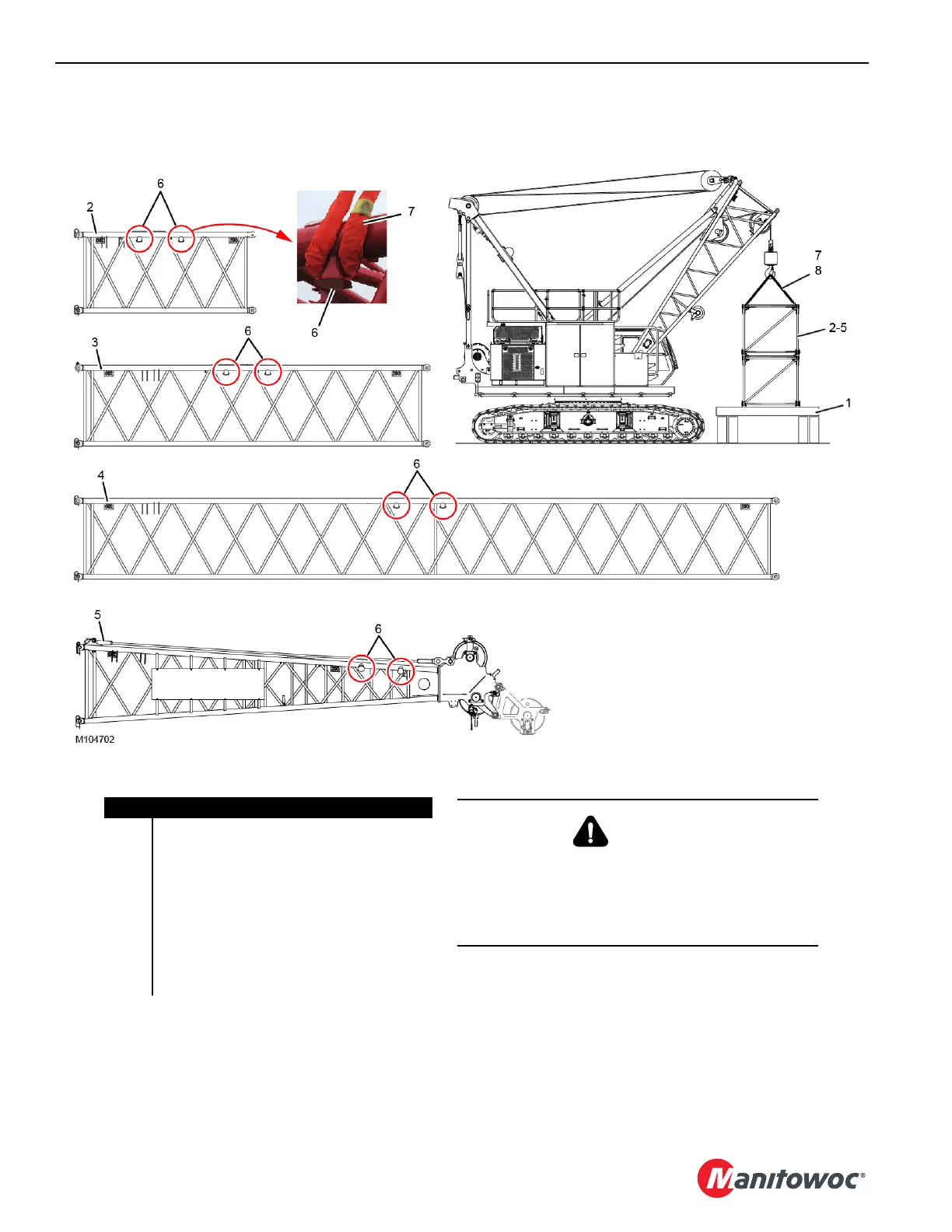

Figure 4-12
Item Description
1Trailer
2 3 m Boom Insert
3 6 m Boom Insert
4 12 m Boom Insert
5 Boom Top with Pendants Installed and Upper
Boom Point either Installed or Removed
6 Lifting Lug (4 each boom section)
7 Synthetic Lifting Slings *
8 Chain Lifting Sling (3-leg) **
* Supplied by crane owner
** Supplied by Manitowoc
View A
WARNING
Falling Load Hazard!
To prevent the pendants from falling off the boom top
during transport, the boom top pendants must be securely
attached to the boom top with owner furnished cargo tie-
down straps.
To Next Page
