Manitowoc Published 12-10-19, Control # 258-05 4-21
MLC90A-1/MLC100-1 OPERATOR MANUAL SETUP AND INSTALLATION
3
1
4

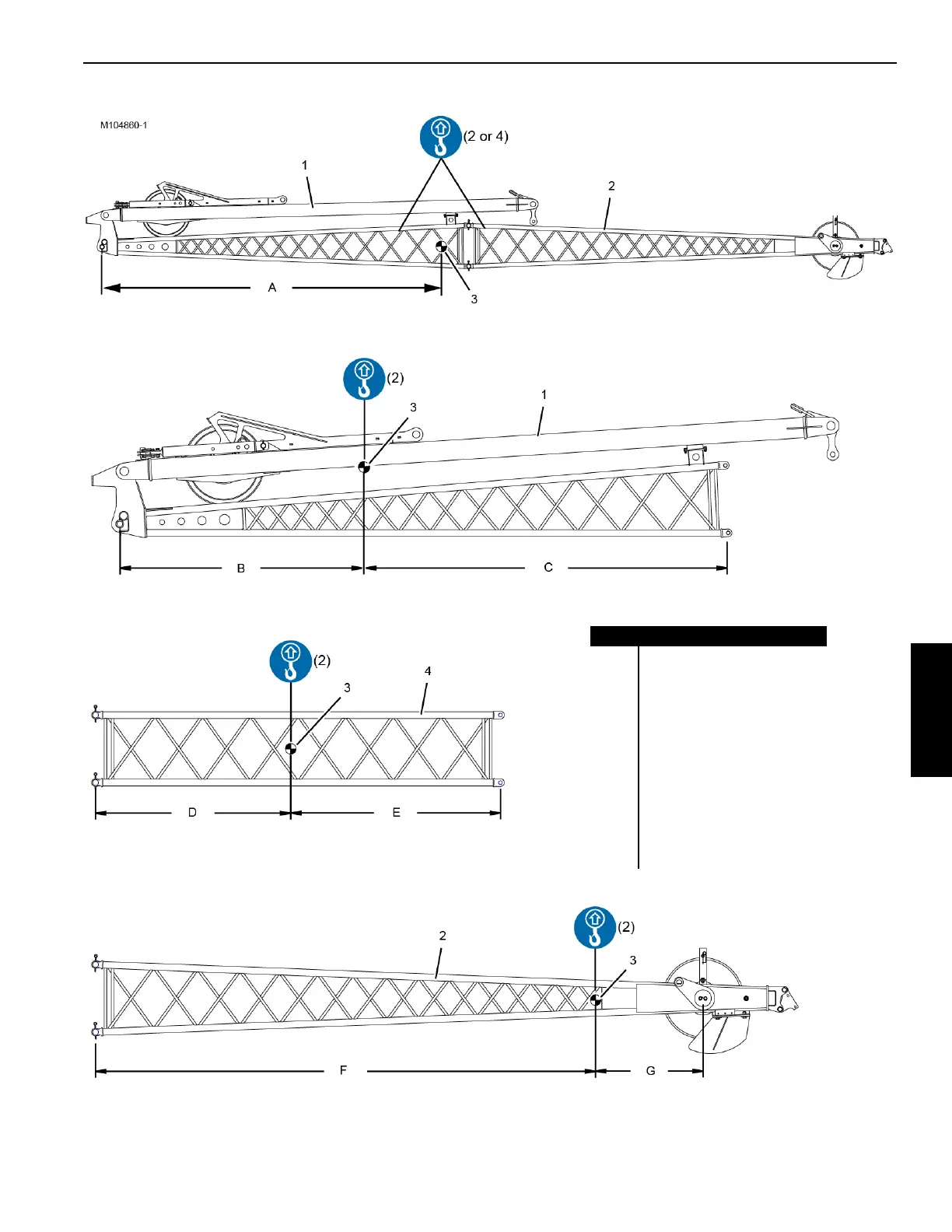

Item Description
1 Jib Butt (shipping package)
2Jib Top
3 Center of Gravity
4 Jib Insert
A 4 164,6 mm (13 ft 8 in)
B 1 854,4 mm (6 ft 1 in)
C 2 717,6 mm (8 ft 11 in)
D 1 469,2 mm (4 ft 10 in)
E 1 578,8 mm (5 ft 2 in)
F 3 763,8 mm (12 ft 4 in)
G 808,2 mm (2 ft 8 in)
Figure 4-13
