Manitowoc National Crane 500E2 - Crane Components Overview

INTRODUCTION OPERATOR MANUAL 500E2
1-2 Published 07-26-2019 Control # 111-06
Item Component
1Hoist
2 Boom
3 Sheaves
4 Boom Rest
5 Stabilizers
6 Hydraulic Reservoir
7 Control Console
8 Outriggers
Item Component
NOTICE TO OWNER/USER
Should this crane become involved in a property damage accident,
please contact your local National Crane distributor immediately and
relate details of incident including serial number of crane. The distributor
will notify National Crane Corporation.
If accident involves personal injury notify your local distributor and
immediately contact the National Crane Corporation Manager of
Product Safety and Reliability at the contact numbers listed in the front
of this Handbook.

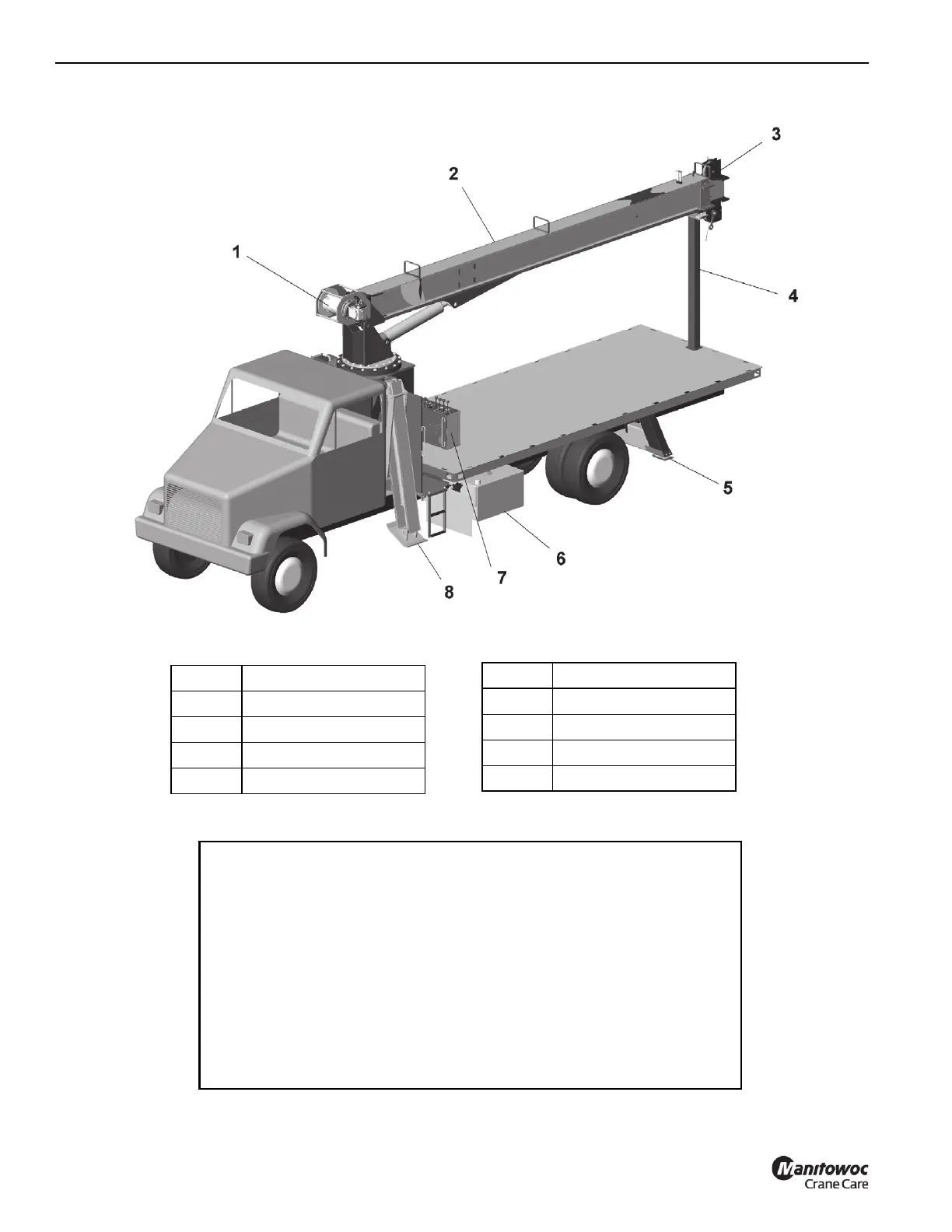

500E2 Series Major Components
FIGURE 1-1
