LUBRICATION PROCEDURE AND CHARTS OPERATOR MANUAL 500E2
5-8 Published 07-26-2019 Control # 111-06
Hoist Gearbox Oil Change
To change the hoist gearbox oil, rotate the drum so that the
plug is visible through the lower hole in the side plate (See
33, Figure 5-2, view 1). Screw in a piece of 1 inch pipe in the
gearbox oil drain to allow the oil to drain. Remove the
gearbox vent (30, Figure 5-2, view 1), then with a hex
wrench remove the drain plug located inside of the 1 inch
pipe (See Figure 5-2, view 2). Examine the used oil for signs
of significant metal deposits and then dispose of it in a proper
manner. Remove the 1 inch pipe.
Rotate the drum so that the port is visible through the
gearbox oil fill and level hole in the side plate (Figure 5-1).
Install a 1 inch pipe with elbow into the upper hole in the side
plate (See Figure 5-2, view 3). Fill the gearbox with
1.42 liters (1.50 quarts) of oil. Remove the pipe and elbow,
then replace the plug.
For information about changing hoist brake oil, see “Drain /
Add New Hoist Brake Oil” on page 5-8. See “Lubrication
Chart” on page 5-5 for recommended oil type and grade for
your application.
Hoist Brake Oil
Check Hoist Brake Oil
.
To check the hoist brake oil, remove the vent and fill plug
(Figure 5-3) and visually inspect the oil level. The maximum
fill capacity for the hoist brake is 0.23 liter (0.25 quart). See
“Lubrication Chart” on page 5-5 for recommended oil type.
Drain /Add New Hoist Brake Oil
To drain and add new oil, remove the brake vent/fill plug and
brake drain plug (Figure 5-3) and drain the brake oil.
Examine the oil for metallic particles or burning. Reinstall
drain plug and add fluid at the brake vent/fill hole. The hoist
brake fill capacity is 0.23 liter (0.25 quart). Reinstall the
brake vent/fill plug.
NOTE: Brake lubricants are satisfactory for operation in
temperatures from -23° C to 66° C
(-10° F to +150° F). For operation outside this
range, contact Manitowoc Crane Care for
recommendations.
.
Gearbox Oil Drain
Gearbox Vent
Gearbox Oil Fill
and Level

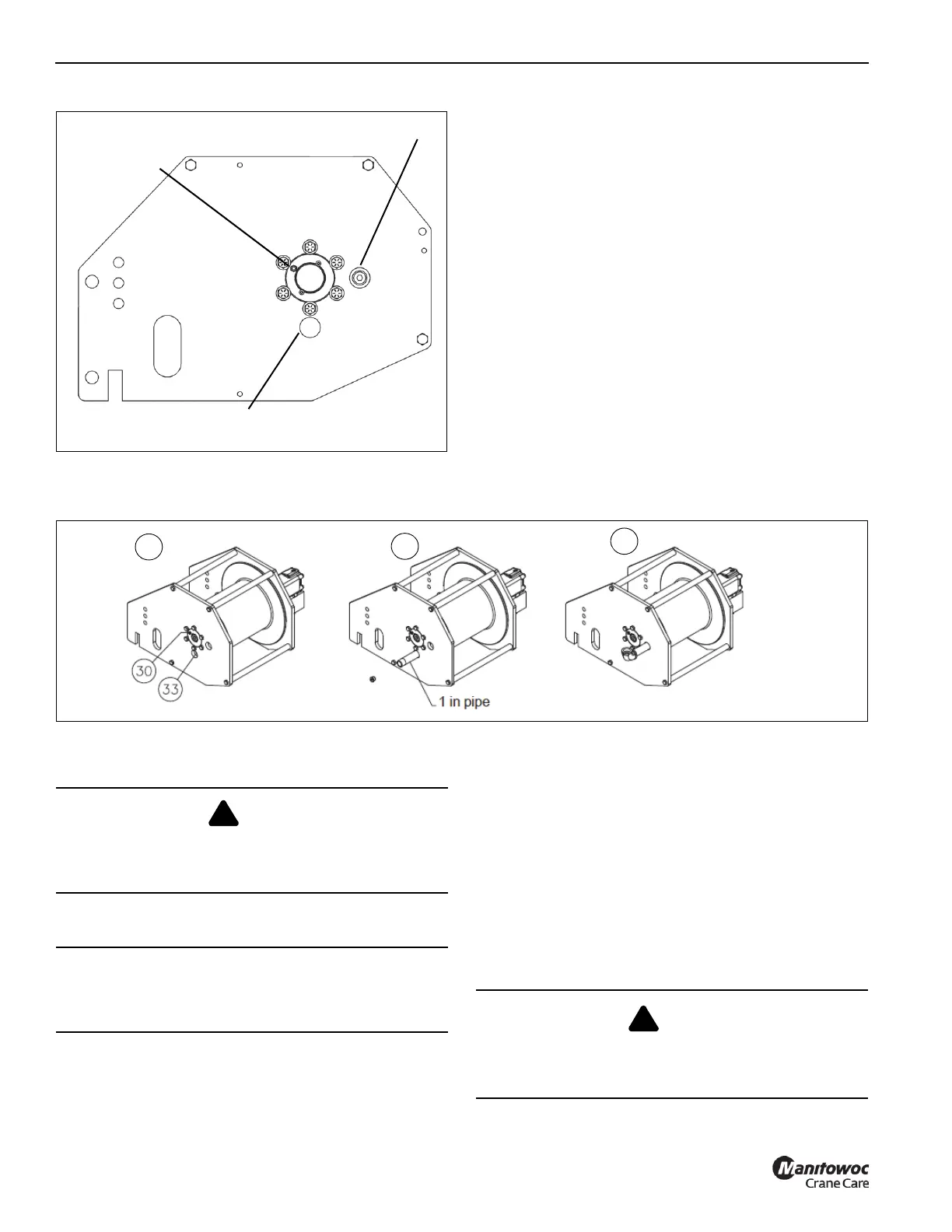

FIGURE 5-1
9871
DANGER
Do not, under any circumstances, work at an elevated
height without using proper fall protection as required by
local, state or federal regulations.
CAUTION
The maximum fill capacity for the hoist brake is 0.23 liter
(0.25 quart). Over-filling the hoist brake can cause
damage to the hoist.
DANGER
Do not use EP type gear lubes in the brake section. This
may prevent proper operation and cause the load to fall
resulting in serious injury or death.
