Manitowoc P Series - Installation Instructions; General Installation Guidance; Ice Machine Dimensions

2-1
Section 2 Installation Instructions
Section 2
Installation Instructions
General
These instructions are provided to assist the qualified
installer. Check your local Yellow Pages for the
name of the nearest Manitowoc distributor, or call
Manitowoc Ice, Inc. for information regarding start-
up services.
Important
Failure to follow these installation guidelines may
affect warranty coverage.
Ice Machine Dimensions

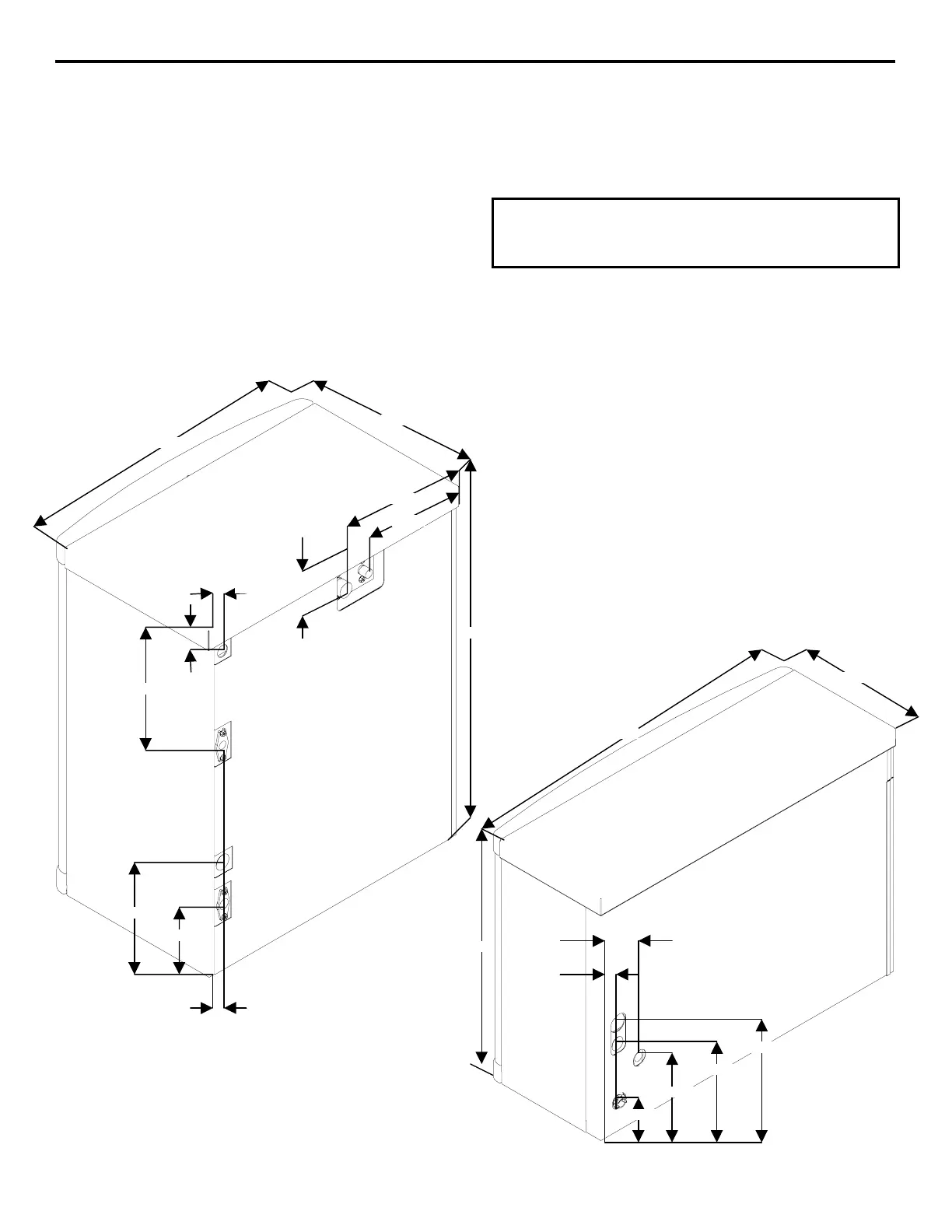

P-520 ICE MACHINE P-530 ICE MACHINE
8.12
″
″″
″
5.00
″
″″
″
9.34
″
″″
″
2.31
″
″″
″
1.25
″
″″
″
1.39
″
″″
″
7.50
″
″″
″
9.65
″
″″
″
22.00
″
″″
″
14.75
″
″″
″
26.50
″
″″
″
3.12
″
″″
″
30.00
″
″″
″
21.75
″
″″
″
12.87
″
″″
″
2.62
″
″″
″
5.31
″
″″
″
7.62
″
″″
″
9.43
″
″″
″
4.00
″
″″
″
1.80
″
″″
″
