6-17
Section 6 Service

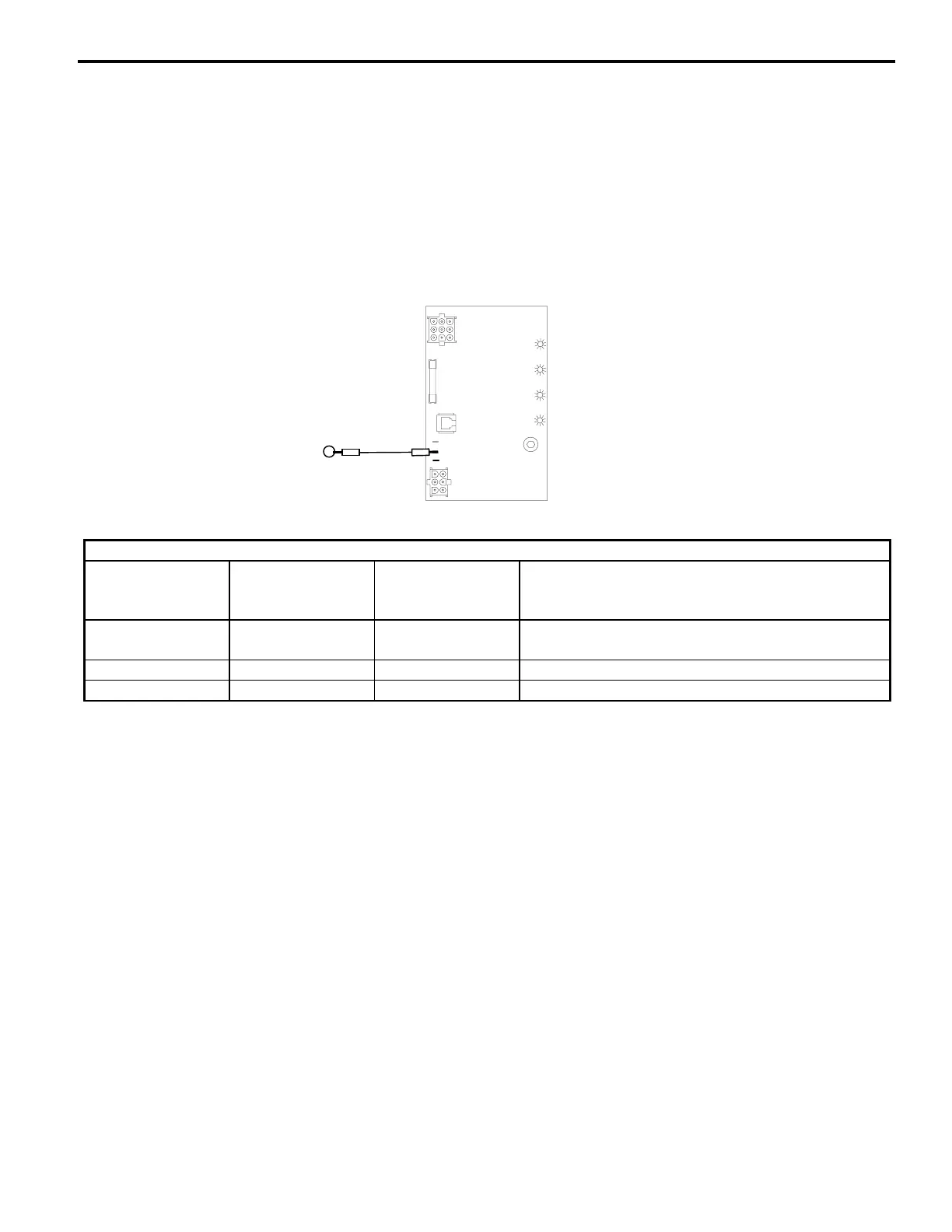

Problem: Water Trough Overfilling During The Freeze Cycle (continued)
Step 3 Allow ice machine to run. Disconnect the water level probe from control board terminal 1F, and
connect a jumper wire from terminal 1F to any cabinet ground.
Remember if you are past 6 minutes from starting, the ice machine will go into a freeze cycle water inlet
valve safety shut-off mode, and you will be unable to complete this test. If past 6 minutes you must restart
this test by disconnecting the jumper wire, restarting the ice machine, (step 1) and then reinstalling the
jumper wire to terminal 1F, after the water pump starts.
Step 3
Step 3 Jumper wire connected from control board terminal 1F to ground
Is water flowing
into the water
trough?
The Water Level
Light is:
The Water Inlet
Valve Solenoid
Coil is:
Cause
no on De-Energized
The water level probe is causing the problem.
Clean or replace the water level probe.
yes off Energized The control board is causing the problem.
yes on De-Energized The water fill valve is causing the problem.
Y
ELLO
W
G
REEN
G
REEN
RED
GROUND
JUMPER
WATER LEVEL LIGHT
BIN SWITCH LIGHT
HARVEST/SAFETY LIMIT LIGHT
CLEAN LIGHT
1F
1C
1G
SV1588
