Manitowoc Q Series User Manual

Installation Instructions Section 2
2-6

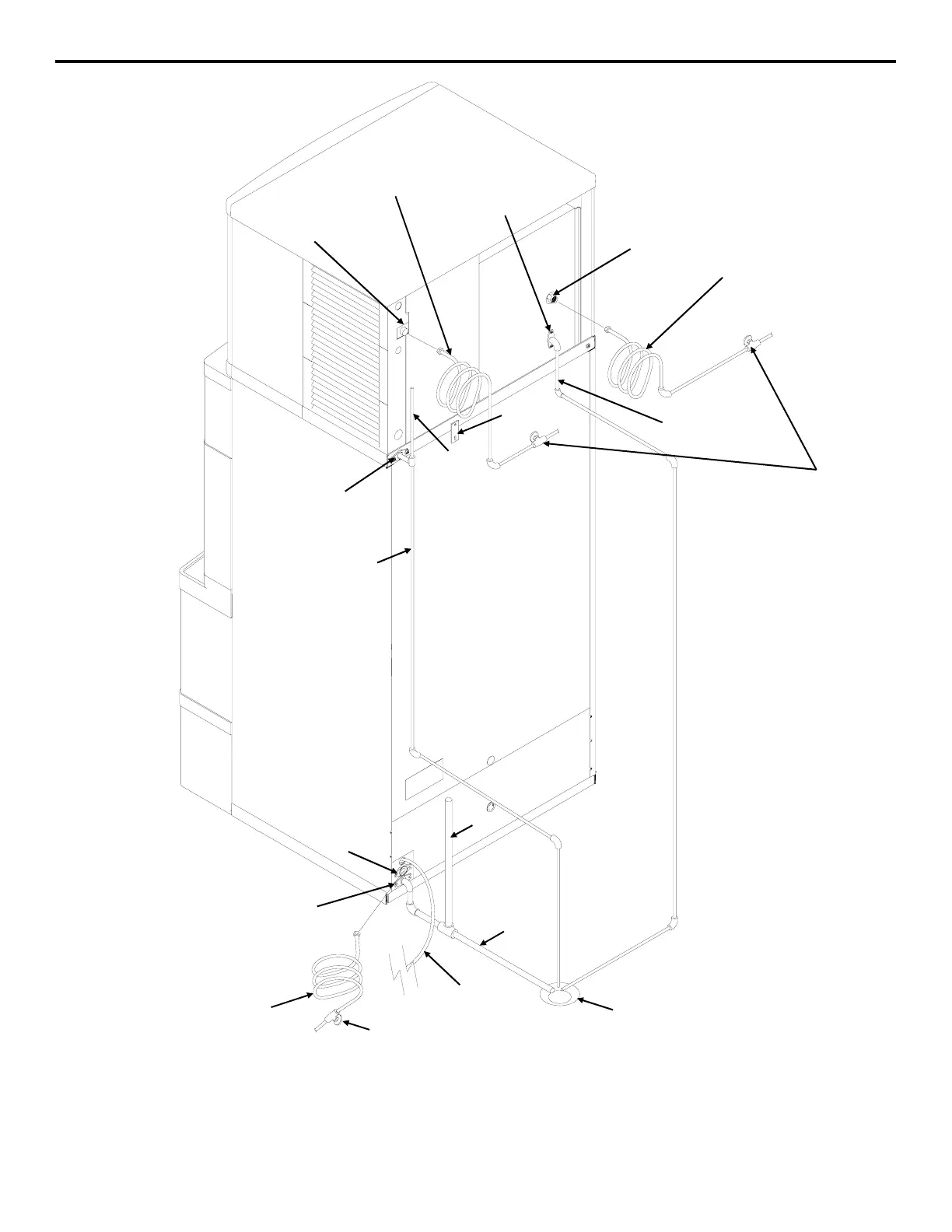

Water Service and Drain Connections
SV1661G
ICE MAKING
WATER INLET
FITTING
3/8” FEMALE
PIPE THREAD
ICE MAKING WATER
INLET TUBING
3/8” MINIMUM INSIDE
DIAMETER
CONDENSER
WATER INLET
FITTING
1/2” FEMALE
PIPE THREAD
CONDENSER WATER
INLET TUBING
1/2” MINIMUM INSIDE
DIAMETER
ICE MAKING WATER
DRAIN TUBING
1/2” MINIMUM INSIDE
DIAMETER
ICE MAKING
WATER DRAIN
FITTING
1/2” FEMALE
PIPE THREAD
WATER INLET
TUBING
3/8” MINIMUM INSIDE
DIAMETER
(QFA 2291 ONLY)
WATER INLET
FITTING
3/8” FEMALE
PIPE THREAD
DISPENSER WATER
DRAIN TUBING
1/2” MINIMUM INSIDE
DIAMETER
DISPENSER
WATER DRAIN
FITTING
1/2” FEMALE
PIPE THREAD
6’ (1.8 M)
POWER CORD
OPEN, TRAPPED OR
VENTED DRAIN
MOUNTING
CLIP
WATER
SHUTOFF
VALVES
CONDENSER
WATER DRAIN
FITTING
1/2” FEMALE
PIPE THREAD
CONDENSER WATER
DRAIN TUBING
1/2” MINIMUM INSIDE
DIAMETER
VENT
WATER
SHUTOFF
VALVE
18” (45 CM)
VENT
