Manitowoc Q Series User Manual

Section 6 Service
6-1
Section 6
Service
Door Removal
WARNING
Before removing any parts, unplug or disconnect
the electric power to the dispenser at the electric
service switch box.
1. Shut off the water if applicable.
2. Loosen the two access screws located on the sides
of the front panel, above the catch basin.
3. Lift up and pull forward on the top of the door
until the upper door retainers disengage.
4. Pivot the door 90°. This should provide adequate
access. If complete door removal is desired,
perform steps 5-8.
5. Disconnect the water supply line at the water
delivery spout quick disconnect if applicable.
6. Disconnect the push button switch wiring by
removing the female push-on terminals at the
switch.
7. Remove the door.

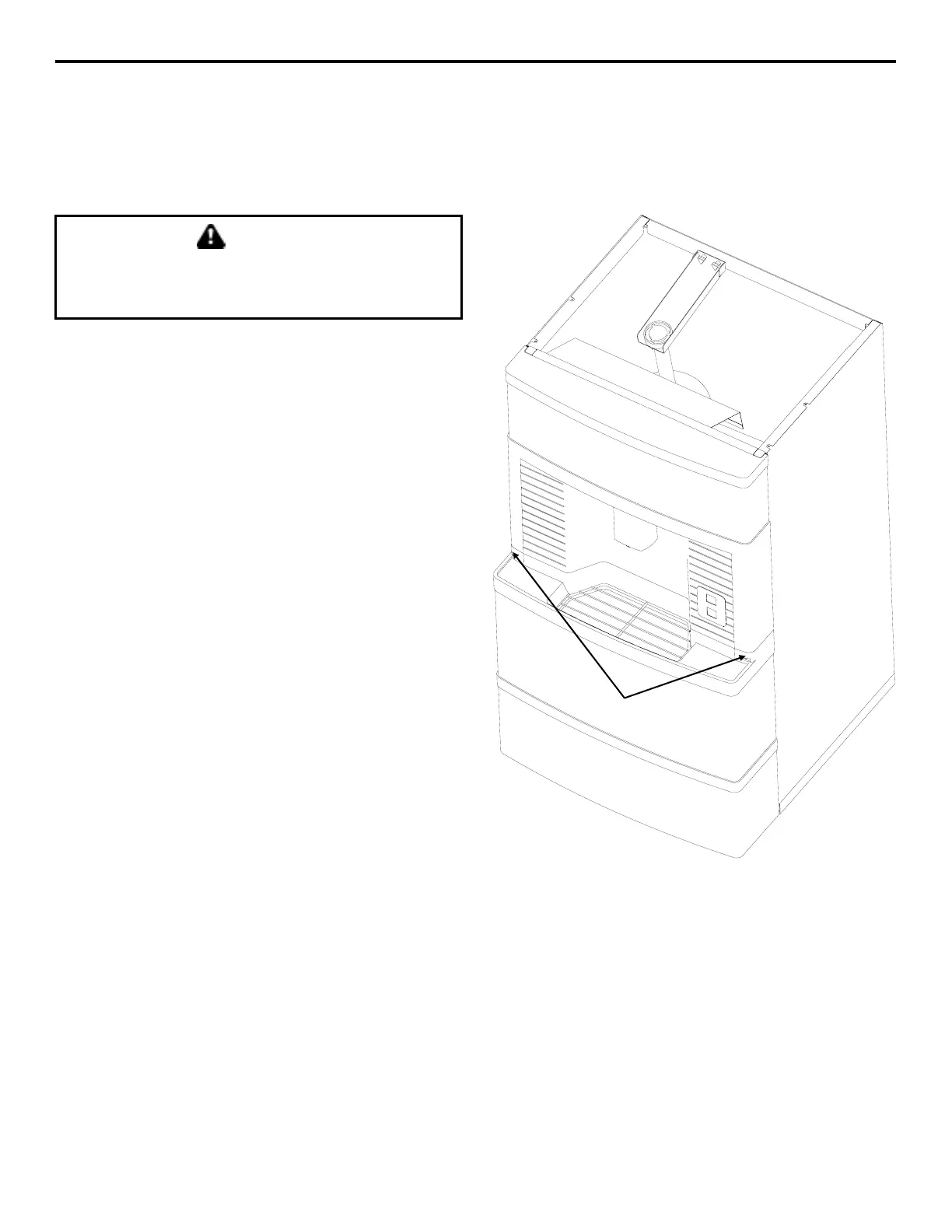

Door Removal
ACCESS
SCREWS
SV1660GM

Manitowoc Q Series Specifications

General

Dispense Rate	Varies by model
Agitator	Yes
Series	Q Series
Ice Capacity	Varies by model
Bin Storage Capacity	Varies by model
Construction	Stainless Steel
Refrigerant	R-404A
Electrical	Varies by model
Water Connection	Required
Drain Connection	Required
Drain	Rear
Certifications	NSF, UL
Dispenser Type	Ice Dispenser
Voltage	115/60/1, 208-230/60/1 (Varies by model)
