Installation Instructions Section 2
2-2
General Installation Information
DISPENSER INSTALLATION
CAUTION
This equipment is to be installed by trained and
qualified personnel.
ICE MACHINE INSTALLATION
• Refer to the ice machine’s Installation/Use and
Care Guide for the ice machine installation
procedure.
• Order adapter kit K00141, when installing a 22”
Ice Machine with a Dispenser.
• Observe all clearance requirements (see location
of dispenser on page 2-3).
• Install the mounting clip to connect the ice
machine to the dispenser.
• Install legs on the dispenser (to access legs from
their shipping position remove back panel).

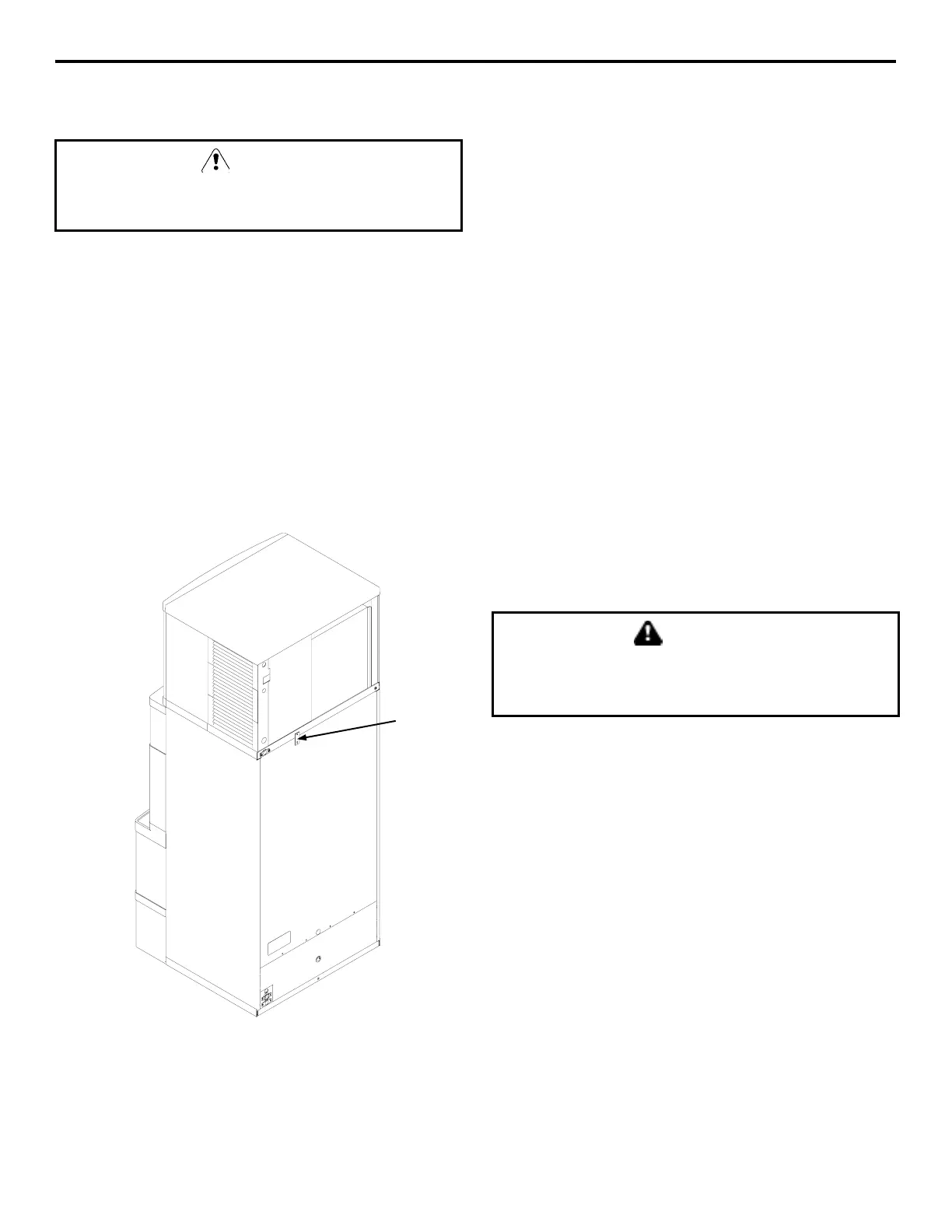

Mounting Clip Installation
MOUNTING CLIP INSTALLATION
1. Open the shipping envelope and remove the
mounting clip (flat plate).
2. Remove the back panel lower mounting screw
from the ice machine. Insert the screw through
the bottom hole on the clip and reinstall the
screw.
3. Remove the screw from the shipping envelope.
Insert it through the top hole on the clip and into
the pre-drilled 5/32” hole on the dispenser back.
NOTE: The ice machine’s ice bridge thickness must
be set for easy dispensing. Set the ice bridge as
directed in the ice machine’s Installation/Use and
Care Guide.
The ice bridge setting must be set thin enough to
allow the ice to break up easily, but thick enough to
insure a clean harvest of the evaporator. An overly
thick bridge will allow ice chunks to fall into the bin,
preventing the sheet of cubes from breaking up for
easy dispensing. This will cause a slower dispensing
rate.
WARNING
Do not attempt to move a dispenser without first
removing the ice machine. The combination can be
unstable and could tip.
SV1659G
MOUNTING
CLIP
